Dell PowerEdge XR4000r Chassis

Designed for workloads at the Edge, the Dell PowerEdge XR4000r Chassis features a short depth and can operate in temperatures from -5C to 55C. It can support up to 4x separate server nodes, either the XR4510c or XR4520c. Each server sled supports a single 3rd generation Intel Xeon D Scalable processor with up to 20 cores and a maximum memory capacity of 512GB using load-reduced DIMM modules. It can also be outfitted with an optional XR4000w witness sled. The supported Dell XR4520c server sled can support 1x 250W double-width GPU or 2x single-width 150W GPUs.

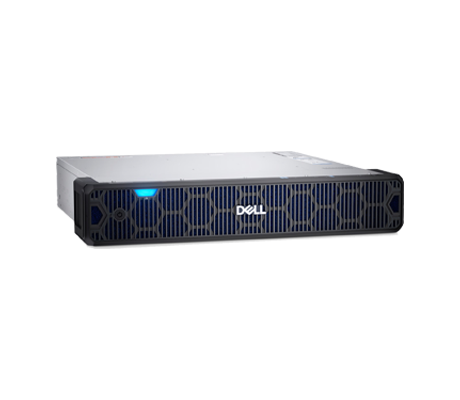

Dell PowerEdge XR4000r Chassis Front
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

PowerEdge

XR4000z

XR4000z

Dell PowerEdge XR4000r Chassis -

Additional Information

Dell PowerEdge XR4510c sled ports

The Dell PowerEdge XR4000r Chassis can be used to support workloads like virtual desktop integration (VDI), Machine vision, Video surveillance, vSAN/VM, Point-of-sale, and Data compression. This system can be rack mounted. The XR4510c is a nearly 1U sled while the XR4520c is a nearly 2U sled. The optional XR4000w witness sled can be deployed to increase reliability on this high-availability system by providing a tie-breaking decision in an edge computing environment where a 2-node cluster is deployed and one experiences a failure.


Compatible Server Sleds

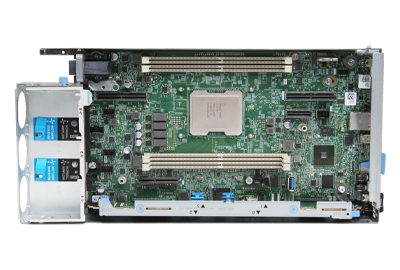

Dell PowerEdge XR4510c Compute Sled

  • Nearly 1U
  • 3rd generation Intel Xeon D Scalable processor with up to 20 cores
  • 4x DDR4 DIMM slots
  • Up to 4x M.2 NVMe SSDs
  • Up to 2x NVMe SSDs on a BOSS N1 card

Dell PowerEdge XR4520c Compute Sled

  • Nearly 2U
  • 3rd generation Intel Xeon D Scalable processor with up to 20 cores
  • 4x DDR4 DIMM slots
  • Up to 4x M.2 NVMe SSDs on a riser module
  • Up to 8x M.2 NVMe SSDs on PCIe Add-in card
  • Up to 2x NVMe SSDs on a BOSS N1 card
  • Up to 2x 150W single-width GPUs or 1x 250W double-width GPU

Sled Configurations

  • 4x XR4510c
  • 2x XR4520c
  • 2x XR4510c + 1x XR4520c

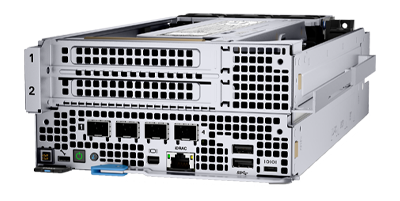

Dell PowerEdge XR4520c sled ports

The witness sled supports 1x Intel Atom C3508 CPU with 4 cores and 16GB of ECC memory and a single M.2 module. Powering the system are dual hot swap redundant PSUs with several options available ranging from 1100W to 1800W AC or DC. Each sled also has up to 3 standard cabled cooling fans. Management of each server sled is through the integrated Dell Remote Access Controller 9.0 or iDRAC 9. Dell’s OpenManage Enterprise is also supported for use with multiple servers and offers other utilities to manage power, updates, and more.

Dell PowerEdge XR4000r Chassis -

Compatible Server Sleds

  • Up to 4x Dell PowerEdge XR4510c server nodes
  • Up to 2x Dell PowerEdge XR4520c server nodes
  • A combination of 2x XR4510c sleds with 1x XR4520c server nodes

Processor - 1 Socket

    Intel Xeon D Scalable Processor

  • 1x 3rd Gen CPU
  • Up to 20 cores

Memory

    Memory Slots:

  • 4 x DDR4 DIMM slots

    • Memory Speed:

  • Up to 2933 MT/S

    • Maximum Memory Configuration:

  • RDIMM 256GB MAX
  • LRDIMM 512GB MAX

Drive Bays

    Front Bays:

  • 8 x M.2 NVMe SSDs on PCIe Add-in card (XR4520c)
  • 4 x M.2 NVMe SSDs on M.2 riser module

Storage Controllers

  • Internal boot: Boot Optimized Storage Subsystem (BOSS-N1): 2 x M.2 SSDs 480 GB or 960 GB, USB

Slots

    PCIe:

  • 2 PCIe slots: 2 x16 Gen4 (x16 connector) full height, full length in XR4520c

    • GPU:

  • Up to 2 x 150W single-width GPUs or 1 x 250W double-width GPU in XR4520c

Ports

    Front:

  • 1 x iDRAC Direct (Micro-AB USB) port
  • 2 x USB 3.0
  • 1 x Serial port
  • 1 x Mini-DisplayPort
  • 1 x RJ45 iDRAC9 ethernet port

    • Internal:

  • 1 x USB 3.0 (optical)

    • Network Options:

  • 4 x 25GbE SFP (max 100 Gb)
  • 4 x 10GbE SFP (max 50 Gb)

Chassis

    Enclosure

    Height: 87.05 mm (3.42 inches)

    Width: 434 mm (17.08 inches)

    Depth: 375.28 mm (14.77 inches) without bezel

    Depth: 455.05 mm (17.91 inches) with bezel

    Weight: 19.14 kg (42.20 pound)

Power Supply

  • 1800W Platinum 200-240 VAC or 240 HVDC, hot swap redundant
  • 1400W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
  • 1100W Platinum 100-240 VAC or 240 HVDC, hot swap redundant (for XR4000r only)
  • 100W Titanium 100-240 VAC or 240 HVDC, hot swap redundant (for XR4000r only)
  • 1100W DC/ -48-(-60) V

Management

    Embedded:

  • iDRAC9
  • iDRAC RESTful API with Redfish
  • iDRAC Direct
  • iDRAC Service Module
  • NativeEdge Endpoint Orchestrator

    • OpenManage Software:

  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage Service plugin
  • OpenManage Update Manager plugin

    • OpenManage Integrations:

  • BMC Truesight
  • Microsoft System Center
  • OpenManage Integration with ServiceNow
  • Red Hat Ansible Modules
  • Terraform Providers
  • VMware vCenter and vRealize Operations Manager

    • Security:

  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
