Dell PowerEdge XR4000z Chassis

The Dell PowerEdge XR4000z Chassis is a stackable, or wall-mountable platform that can be outfitted with up to 2x single-socket, 20-core server nodes. Ideal for edge applications, this platform can be used for Virtualization Desktop Infrastructure (VDI), virtual machines, video surveillance, vSAN/VM, point of sale, data communication, and more. The supported XR4520c server sled can support 2x single-width 150W GPUs or a single 250W double-width GPU.

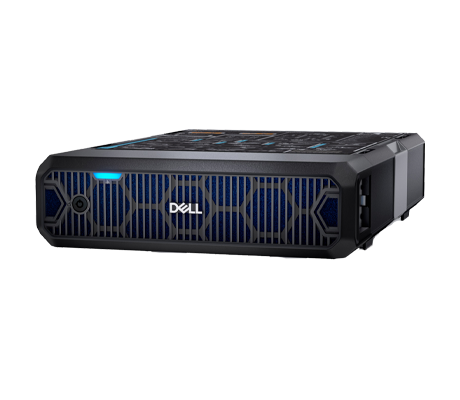

Dell PowerEdge XR4000z Chassis Front
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

PowerEdge

XR4000r

XR4000r

Dell PowerEdge XR4000z Chassis - System Overview

Additional Information

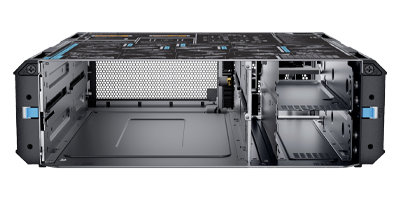

Dell PowerEdge XR4000z Chassis front

Server sleds supported in the Dell PowerEdge XR4000z Chassis include the nearly 1U Dell PowerEdge XR4510c and the nearly 2U Dell PowerEdge XR4520c. Only a single XR4520c server sled or two XR4510c server sleds can be installed. Optional, is a XR4000w witness server module, which acts as a tie-breaker if one server sled experiences an error in a 2-node VM cluster. The witness server has a single Intel Atom 3508 CPU with 4 cores, while the other two supported server sleds feature 3rd generation Intel Xeon D Scalable processor with up to 20 cores. Up to 256GB of RDIMM memory or up to 512GB of LRDIMM memory can be installed in either server sled. The witness sled has 16GB of memory that is soldered to the system board.

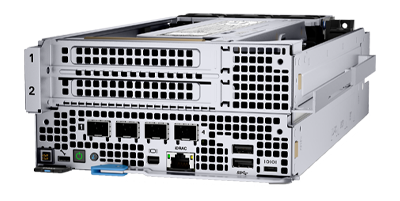

Dell PowerEdge XR4520c sled ports

Each of the two server sleds will support up to 4x M.2 NVMe storage devices on an M.2 riser card. Additionally, a Boot Optimized Storage Subsystem N1 (BOSS-N1) with either a single or dual M.2 drives can be installed to boot the system. Network communications ports include 4x 10GbE or 4x 25GbE ports. A dedicated RJ45 management port on the server sled provides remote management of the system via the integrated Dell Remote Access Controller 9.0 or iDRAC9. Additional management options include Dell’s OpenManage utility suite and optional QuickSync2.0 for use with a smart phone or tablet. iDRAC Direct can also be accessed via a dedicated micro-USB port.

Dell PowerEdge XR4000z Chassis - Specifications

Compatible Server Sleds

  • Up to 2x Dell PowerEdge XR4510c server nodes
  • Up to 1x Dell PowerEdge XR4520c server nodes

Processor - 1 Socket

    Intel Xeon D Scalable Processor

  • 1x 3rd Gen CPU
  • Up to 20 cores

Memory

    Memory Slots:

  • 4 x DDR4 DIMM slots

    • Memory Speed:

  • Up to 2933 MT/S

    • Maximum Memory Configuration:

  • RDIMM 256GB MAX
  • LRDIMM 512GB MAX

Drive Bays

    Front Bays:

  • 8 x M.2 NVMe SSDs on PCIe Add-in card (XR4520c)
  • 4 x M.2 NVMe SSDs on M.2 riser module

Storage Controllers

  • Internal boot: Boot Optimized Storage Subsystem (BOSS-N1): 2 x M.2 SSDs 480 GB or 960 GB, USB

Slots

    PCIe:

  • 2 PCIe slots: 2 x16 Gen4 (x16 connector) full height, full length in XR4520c

    • GPU:

  • Up to 2 x 150W single-width GPUs or 1 x 250W double-width GPU in XR4520c

Ports

    Front:

  • 1 x iDRAC Direct (Micro-AB USB) port
  • 2 x USB 3.0
  • 1 x Serial port
  • 1 x Mini-DisplayPort
  • 1 x RJ45 iDRAC9 ethernet port

    • Internal:

  • 1 x USB 3.0 (optical)

    • Network Options:

  • 4 x 25GbE SFP (max 100 Gb)
  • 4 x 10GbE SFP (max 50 Gb)

Chassis

    Enclosure

    Height: 97.05 mm (3.82 inches) with sidepanel

    Height: 87.05 mm (3.42 inches) without sidepanel

    Width: 307 mm (12.08 inches) with sidepanel and bezel

    Width: 266 mm (10.47 inches) without sidepanel and bezel

    Depth: 455 mm (17.91 inches) with bezel

    Depth: 375.2 mm (14.77 inches) without bezel

    Weight: 12.16 kg (26.80 pound)

Power Supply

  • 1800W Platinum 200-240 VAC or 240 HVDC, hot swap redundant
  • 1400W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
  • 1100W Platinum 100-240 VAC or 240 HVDC, hot swap redundant (for XR4000r only)
  • 100W Titanium 100-240 VAC or 240 HVDC, hot swap redundant (for XR4000r only)
  • 1100W DC/ -48-(-60) V

Management

    Embedded:

  • iDRAC9
  • iDRAC RESTful API with Redfish
  • iDRAC Direct
  • iDRAC Service Module
  • NativeEdge Endpoint Orchestrator

    • OpenManage Software:

  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage Service plugin
  • OpenManage Update Manager plugin

    • OpenManage Integrations:

  • BMC Truesight
  • Microsoft System Center
  • OpenManage Integration with ServiceNow
  • Red Hat Ansible Modules
  • Terraform Providers
  • VMware vCenter and vRealize Operations Manager

    • Security:

  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Dell PowerEdge XR4000z Chassis - Documentation

Dell PowerEdge XR4000z Chassis Spec Sheet Dell PowerEdge Rack Servers Quick Reference Guide Dell PowerEdge XR4000z Chassis Technical Guide Dell PowerEdge XR4000z Chassis Installation and Service Manual
