Overview

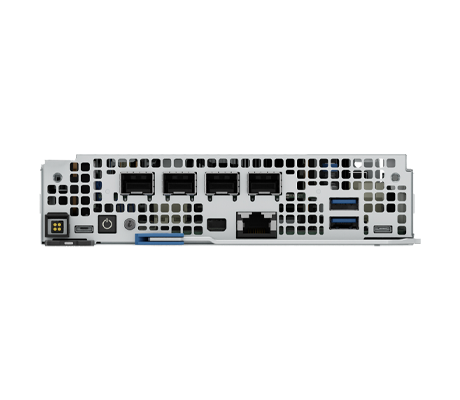

Dell PowerEdge XR4510c Sled - System Overview

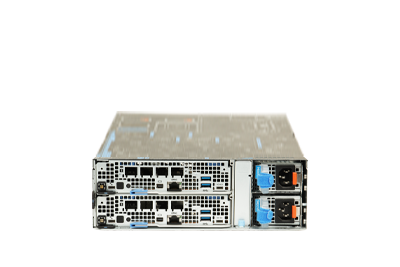

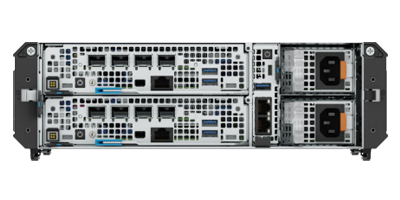

Dell PowerEdge XR4000z Chassis with XR4510c Sled

Designed for edge applications, up to 4x Dell PowerEdge XR4510c Sleds can be installed in the PowerEdge XR4000r chassis, while the XR4000z can support up to 2x of these server sleds. Delivering high-performance compute, this system supports a number of applications including, virtual desktop integration, machine vision, video surveillance, vSAN and VM, plus use as a point-of-sale device. The XR4000r chassis is a 2U, rack-mountable unit that offers easy scalability by incorporating additional sleds into the chassis or adding additional chassis to the infrastructure. Other options include the PowerEdge XR4520c sled, which is a nearly 2U, half-width server sled with expansion options for NICs, HD controllers or GPUs. The PowerEdge XR4520c can also be installed in conjunction with the XR4510c server sled.

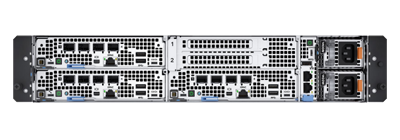

Dell PowerEdge XR4000r Chassis with XR4510c & XR4520c Sled

In addition to the integrated network connectivity provided by 2x LAN ports on the back of the system, there is a dedicated management LAN port for remote management. Management of the system is through the integrated Dell Remote Access Controller 9.0 or iDRAC9. In addition, for more advanced management Dell offer OpenManage, which can be upgraded to the OpenManage Enterprise console. OpenManage offers a comprehensive solution for PowerEdge servers.

Specifications

Dell PowerEdge XR4510c Sled - Specifications

Processor - 1 Socket

1x 3rd Generation Intel Xeon D Scalable processor
Up to 20 cores
10nm process technology

Maximum of 2.1 GHz
Up to 3x Intel UPI channels per Socket at 10.4GT/s or 11.2GT/s
PCIe Gen4 at 16GT/s
Maximum of 56x through combining 32x PCIe 4.0 + 24 HSIO PCIe 3.0 links capable of 16GT/s
Maximum TDP: 120W

Chassis

XR4000r
XR4000z

Configurations

Up to 4x nearly 1U, single-width, 1-processor XR4510c server sleds
Up to 2x XR4510c server sleds, plus 1x XR4520c Sled

Dell PowerEdge XR4000z

Up to 2x nearly 1U, single-width, 1-processor XR4510c server sleds

Dell PowerEdge XR4000w

1x XR4000w (optional) per XR4000r or XR4000z chassis

Memory

4 x DDR4 DIMM slots
Supports RDIMM 256 GB max
Supports LRDIMM 512 GB max
Speed: Up to 3200MT/s

Storage

4 x M.2 NVMe SSDs on M.2 riser module
2 x M.2 NVMe SSDs on BOSS-N1 card (optional)

Ports

4x 10GbE (max 50 Gb)
4x 25GbE (max 100Gb)

Front Ports:

2 x USB 3.0
1 x Micro-AB USB 2.0-compliant port for iDRAC Direct
1 x Micro-USB UART port
1 x Mini-DisplayPort
1 x RJ-45 iDRAC9 remote management (dedicated port only)

Internal Port:

1x USB 3.0

Fans

Up to 3x Standard (STD) cabled cooling fans with reverse and normal air-flow

Operating Systems

Azure Stack HCI
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi

Security

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Dimensions

Height – 41.25 mm (1.62 inches)
Width – 167.2 mm (6.58 inches)
Depth – 342.5 mm (13.48 inches)
Weight — 2.46 kg (5.42 pound)

Documentation

Dell PowerEdge XR4510c Sled - Documentation

Dell PowerEdge XR4510c Sled Specifications Sheet Dell PowerEdge XR4510c Sled Technical Guide Dell PowerEdge Modular Quick Reference Guide Dell PowerEdge XR4510c Installation and Service Manual
