Dell EMC PowerEdge XR7620 Server

The Dell PowerEdge XR7620 is a short-depth, dual-socket, 2U server that offers high performance, high capacity and reduced latency. Under the hood, there are two 5th or 4th generation Intel Xeon Scalable processors. Processors with a maximum TDP of up to 350W are supported with 8 to 64 cores each. Each CPU offers 8x DDR5 RDIMMs, for a total of 16x memory modules slots, supporting a maximum of 1TB of memory along with speeds of up to 4800MT/s. Behind the optional lockable smart filtered bezel that withstands dusty and harsh environments, there are two options for drive bay configurations. Either 4x 2.5-inch SAS/SATA/NVMe SSD drives or up to 8x E3.S NVMe direct drives can be mounted on the front of the system.

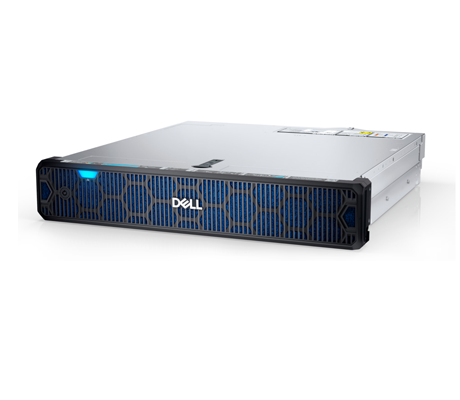

Dell PowerEdge XR7620 side view
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Dell EMC PowerEdge XR7620 Server - System Overview

Dell PowerEdge XR7620 server front drive bays

As part of Dell’s ruggedized line of servers, this Dell system is an all-purpose platform built for telecom, defense, retail, and other demanding edge deployments. The short-depth PowerEdge XR5610 server delivers up to 2x PCIe Gen5 expansion slots plus a slot for an optional OCP 3.0 mezzanine card. The chassis has 4x 25GbE SFP+ LOM ports on the rear. Offering remarkable flexibility, the system can also be outfitted with dual 75W GPUs with single-width, full-height, half-length form factors. The air-cooled server supports several power supply units including 1800W Titanium, 1400W Platinum, 1100W Titanium, and 800W Platinum PSUs. In addition to military and defense deployments, the system is well suited for 5G vRAN and ORAN telecom workloads, as well as retail AI applications including video surveillance, IoT device aggregation, and PoS analytics.

Dell PowerEdge XR7620 server rear ports

Dell EMC PowerEdge XR7620 Server - Specifications

Processor - 2 Sockets

  • 2x 5th Generation Intel Xeon Scalable processor
  • 2x 4th Generation Intel Xeon Scalable processor
  • Up to 64 cores per CPU

Memory

  • 16x DDR5 DIMM slots
  • Supports RDIMM 1T max
  • Speed: Up to 4800MT/s

Storage

  • Up to 4 x 2.5-inch SAS/SATA/NVMe SSD drives
  • Up to 8 x E3.S NVMe direct drives

GPU Options

  • Up to 5 x 75 W (Single Width Full Height/Half Length, Low Profile) GPUs OR;
  • Up to 2 x 300 W (Double Width Full Height/Full Length)

Expansion Slots

  • 2 CPU configuration: Up to 5 PCIe slots (4 x16 Gen4/Gen5, 1 x16 LP Gen4)

Controllers

  • Internal Controllers: PERC H965i, PERC H755, PERC H355, HBA355i
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (cold swap) or internal USB module
  • Software RAID: S160

Ports

    Front Ports

  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0

    • Internal Ports

  • 1 x USB 3.0 (optional)

    • Rear Ports

  • 1 x iDRAC dedicated port
  • 1 x USB 2.0
  • 1 x Serial port (optional on slot 5)
  • 1 x VGA

OS Compatibility

  • Canonical Ubuntu Server LTS
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • VMware ESXi
  • SUSE Linux Enterprise Server

Power Supply

  • 1800 W Titanium 200—240 VAC or 240 HVDC
  • 1400 W Platinum 100—240 VAC or 240 HVDC
  • 1100 W Titanium 100—240 VAC or 240 HVDC
  • 1100 W -48 — (-60) VDC

Cooling Options

  • 6x standard cold swap fans
  • Air cooling

Management

  • iDRAC9
  • iDRAC Service Module
  • iDRAC Direct
  • iDRAC RESTful API with Redfish

OpenManage

  • Microsoft System Center
  • VMware vCenter and vRealize Operations Manager
  • Terraform Providers
  • Red Hat Ansible Modules
  • OpenManage Integration with ServiceNow
  • OpenManage Enterprise Integration for VMware vCenter
  • OpenManage Integration for Microsoft System Center
  • OpenManage Integration with Windows Admin Center

Security

  • Cryptographically signed firmware
  • Secure Boot Secure Erase
  • Silicon Root of Trust
  • System Lockdown(requires iDRAC9 Enterprise or Datacenter)
  • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Secured Component Verification (Hardware integrity check)

Chassis

  • Height – 86.8 mm (3.41 inches)
  • Width – 482.6 mm (19 inches)
  • Depth – 448.8 mm (17.6 inches)
