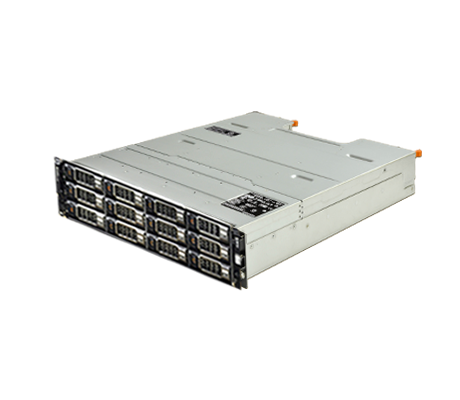

The Dell PowerVault MD1200 storage array is a high-capacity, low-cost expansion enclosure designed to satisfy data-intensive applications. This array houses up to 12 drives, either 2.5-inch or 3.5-inch, to provide a maximum storage capacity of 24TB in a 2U chassis.
The Dell PowerVault MD1200 storage array houses up to 12 large form factor (LFF) or small form factor (SFF) drives to provide 24TB of data in just a 2U chassis. For data-intensive applications, administrators can daisy-chain eight of these enclosures together for a total of 96 drives and up to 192TB of storage when using 2TB drives. Hot-swappable drives reduce system downtime and Dell’s PERC H800 allows administrators to continue to access data even after a single cable path fails. Managing the system is easy, even for novice-level system admins, using Dell’s OpenManage software application.
This array supports up to 12 hot-swappable SAS drive bays to provide a maximum storage capacity of 24TB. Both small form factor and large form factor drives are supported, but cannot be mixed within a single enclosure. However, hard disk drives (HDDs), solid-state drives (SSDs), and self-encrypting drives (SEDs) can be mixed within a single enclosure to create the optimal storage environment for the anticipated workload. Dell’s PERC H800 supports RAID levels 0, 1, 5, 6, 10, 50, and 60, and uses a redundant path with I/O load balancing to keep applications up and running even when one port fails. The 6Gb/s SAS connection offers double the throughput and a 35% increase in I/O operations per second compared to Dell’s previous generation storage arrays. Up to eight enclosures can be daisy-chained together with a single PERC H800, in a single path for up to 192TB of data using a total of 96 drives. Administrators can also opt to configure four enclosures in a redundant path for added reliability preventing data loss.
System management has been simplified with Dell’s OpenManage Storage Management software which uses a single interface to manage both the external array and internal server storage. The hassle of installing, configuring, and managing is further alleviated with wizard-based tools and task-guided features. Through the Configure Tab, users can create a host group, hot spares, and virtual disks. System downtime is minimized with the software’s Support Tab which allows administrators to recover from a failure and quickly gather support information.
The Dell PowerVault MD1200 storage array is the perfect solution for high-density applications, such as database or web hosting. Serviceability is made easy with the enclosure’s 12 hot-swappable drives which provide up to 24TB of data. When expanded to its full direct-attached storage (DAS) capacity, this enclosure can support up to 96 drives and 192TB of data. Throughput has been doubled from previous generation storage arrays with the 6Gb/s connection which delivers a 35% increase I/O operations per second. Dell’s OpenManage software automates the majority of common management tasks and uses straight-forward wizard-guided tools for a simplified approach to system management.
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
