Additional InformationSupported processors compatible with the Gigabyte B683-Z80 Blade Server support a Thermal Design Power (TDP)rating of up to 500W. That TDP includes the whole family of processors from both the 9005 and 9004 series AMD EPYC processors. Outfitted with top-of-the-line AMD EPYC 9005 series processors with 192 cores each, equates to 3,840 physical cores and 7,680 virtual threads per chassis. With 12-channel memory architecture per CPU and 24x memory module slots, the B683-Z80 supports 1 DIMM Per Channel (1DPM). Memory speed is dependent on the CPU generation as 9005 series CPUs will provide speeds of up to 6400MT/s while 9004 series processors will deliver up to 4800MT/s. There are two different SKUs for this model, one with air cooling and one with Direct Liquid Cooling (DLC).
Model SKUs:
Gigabyte B683-Z80-AAS1 Blade Server
Air Cooled via 10x 80x80x80mm fans
Gigabyte B683-Z80-LAS1 Blade Server
DLC CPUs, Memory, Storage and PCIe slots, also 4x 80x80x80mm fans

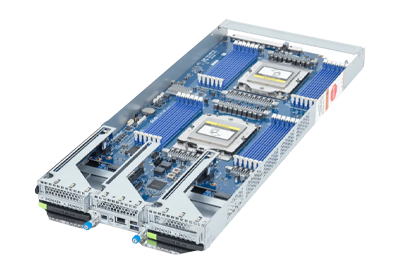

Each of the server nodes has 2x E3.S Gen5 NVMe hot-swap bays for storage and 2x Low-profile PCIe Gen5 x16 slots for expansion, per node. There are 2x Chassis Management Controller ports on the back of the chassis for managing multiple chassis in a ring topology. Using the front management LAN ports several chassis can be connected in a star topology for maximum deployment flexibility. The system is compatible with Windows and Linux operating systems plus VMware and Citrix hypervisors.
Explore available configurations for the Gigabyte B683-Z80 Blade Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- AMD EPYC 9005 Series Processors
- AMD EPYC 9004 Series Processors
- Dual processor per node, TDP up to 500W
- 20x LGA 6096, Socket SP5
- System on Chip
- Motherboard: MZ83-HD3
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- 24x DIMM slots per node
- Support DDR5 RDIMM
- 12-Channel memory per processor
AMD EPYC 9005:
- Up to 6400MT/s
AMD EPYC 9004:
- Up to 4800MT/s
Front:
- 1x 10/100/1000 Mbps Management LAN per node
Rear (MLAN board):
- 2x Chassis Management LAN
*Spanning Tree Protocol (STP) must be enabled on LAN switched when using a ring topology
Front hot-swap:
- 2x E3.S Gen5 NVMe per node, from CPU_0
AAS1
Riser Card x2:
- 1x LP x16 (Gen5 x16) per node, from CPU_0
- 1x LP x16 (Gen5 x16) per node, from CPU_1
LAS1
Riser Card x3:
- 2x LP x16 (Gen5 x16) per node, from CPU_0
- 1x LP x16 (Gen5 x16) per node, from CPU_1
Per node:
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x Mini-DP
- 1x MLAN port
- 1x Power button with LED
- 1x System status LED
- 1x ID LED
MLAN board:
- 2x CMC ports
- 1x CMC status LED
AAS1:
- 10x 3200W 80 PLUS Titanium redundant power supplies
LAS1:
- 6+6 3200W 80 PLUS Titanium redundant power supplies
*The system power supply requires C19 power cord.
AAS1:
- 10x 80x80x80mm
LAS1:
- 4x 80x80x80mm

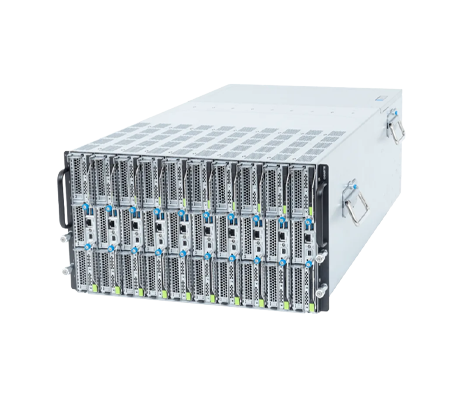

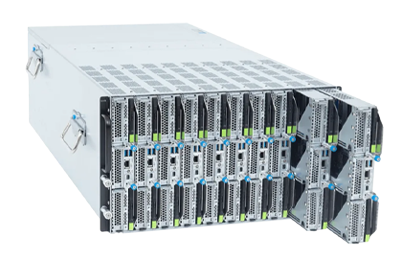

- 6U 10-Node - Front access
- 447 x 262.3 x 900
AAS1:
- Net Weight: 37 kg
- Gross Weight: 39 kg
LAS1:
- Net Weight: 38 kg
- Gross Weight: 40 kg
