Gigabyte B685-D80 Server

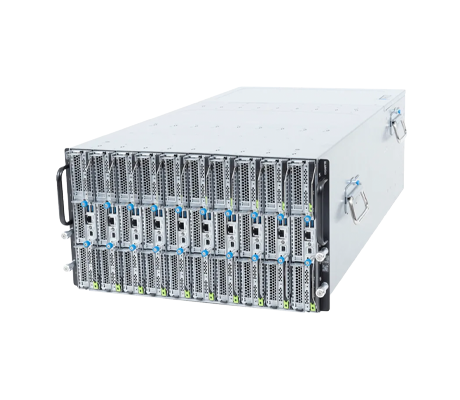

Featuring a 6U chassis with 10 independent server nodes, the Gigabyte B685-D80 High-Density Server supports high-performance computing, networking, and use as a hybrid/private cloud server. Each node has dual sockets for an AMD EPYC 9006 SP7 CPU with 96 to 256 physical cores and up to 512 virtual threads. With 16-channel memory architecture, each CPU supports 16x memory module slots for 32 active memory module slots with both processors installed.

Overview

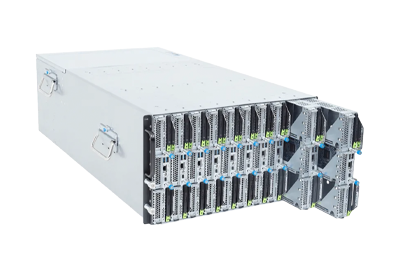

Gigabyte B685-D80 Server - System Overview

Additional Information

The Gigabyte B685-D80-LS1 High-Density Server has an integrated-manifold, full-system, direct liquid cooling (DLC) solution. That means, not only do the CPUs have cold plates, but also the memory, storage and PCIe slots are also liquid cooled. 4x large fans at the back of the chassis also provide cooling by pulling heated air out of the chassis. Powering the system are 12x 3200W 80 PLUS Titanium power supply units offering 7 + 5 redundancy.

Chassis Configurations
Gigabyte B685-D80-LS1 High-Density Server
- CPU, Memory, Storage, and PCIe Direct Liquid Cooling (DLC)

Memory supported on this system includes DDR5 Registered DIMMs (RDIMM) and Multiplexed Rank DIMMs (MRDIMM). MRDIMMs will provide the fastest memory speeds at up to 12800MT/s compared to RDIMMs, which top out at 8000MT/s. Storage includes 2x liquid-cooled E3.S Gen6 NVMe bays and 3x low-profile PCIe Gen6 x16 slots per node.

Available Configurations

Explore available configurations for the Gigabyte B685-D80 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte B685-D80 HPC, Networking Hybrid, Private Cloud Server B685-D80-LS1

Specifications

Gigabyte B685-D80 Server - Specifications

Processor

- AMD EPYC 9006 SP7 Server processors
- Dual processors per node, PPT up to 600W
- 20x LGA 7536
- Motherboard: MD85-HD0
- Chipset: Integrated into SoC

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Memory

- 32x DIMM slots per node
- Support DDR5 RDIMM/MRDIMM*
- 16-Channel memory per processor

- RDIMM: Up to 8000 MT/s
- MRDIMM: Up to 12800 MT/s

*MRDIMMs are supported only on select CPU SKUs.

LAN

Front:
- 1x Management LAN per node

Rear (MLAN board):
- 2x Chassis Management LAN*

*Spanning Tree Protocol (STP) must be enabled on LAN switches when using a ring topology.

Storage

Front:
- 2x E3.S Gen6 NVMe per node, from CPU_0

Expansion Slots

- 2x LP x16 (Gen6 x16) per node, from CPU_0
- 1x LP x16 (Gen6 x16) per node, from CPU_1

Front I/O

Per node:
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x Mini-DP
- 1x MLAN port
- 1x Power button with LED
- 1x System status LED
- 1x ID LED

Rear I/O

MLAN board:
- 2x CMC ports
- 1x CMC status LED

Power Supply

- 7+5 3200W 80 PLUS Titanium redundant power supplies

Dimensions & Weight

- 6U 10-Node - Front access
- 447 x 262.3 x 900 mm

- Net Weight: 92 kg
- Gross Weight: 103 kg
