Gigabyte E133-C10 Server

As a 1U, short depth edge system, the Gigabyte E133-C10 Server accommodates a single AMD EPYC 4004 or AMD Ryzen 7000 series processor with a TDP of up to 105W. It’s important to note that overclocking is not supported due to thermal limitations. Adjacent to the CPU, there are 4x memory module slots with dual channel memory architecture. Compatible with both ECC UDIMM and non-ECC UDIMM memory modules, the system can be outfitted with 32GB per slot, for a maximum capacity of 128GB. The platform can achieve memory speeds of up to 5600 MT/s in a 1DPC configuration or 3600 MT/s with 2DPC.

Overview

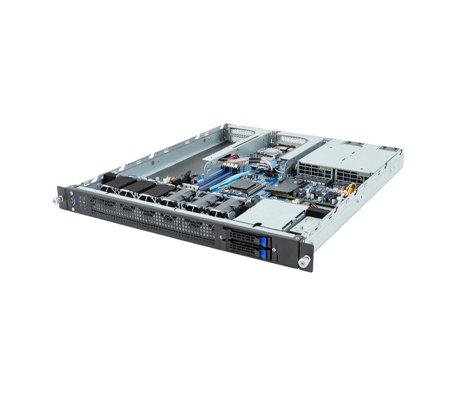

Gigabyte E133-C10 Server - System Overview

The E133-C10 chassis is designed for networking, edge, and hybrid/private cloud server applications, featuring 2x 2.5-inch hot-swappable drive bays with blue tabs for SATA drive installation. To support the operating system, the motherboard includes an M.2 PCIe Gen4 x4 slot, compatible with 2280 and 22110 form factor cards. Networking capabilities are boosted with a PCIe Gen5 x16 FHFL slot via a PCIe cable and a PCIe Gen4 x4 FHHL slot via a riser card. General networking is handled by two 1Gb/s LAN ports, with an adjacent dedicated management port for remote access. Depending on the model revision, this system features either 550W or 800W power supplies.

Gigabyte E133-C10 Server (AAA1)

1+1 550W 80 Plus Platinum redundant power supplies

Gigabyte E133-C10 Server (AAG1)

1+1 800W 80 Plus Titanium redundant power supplies

Gigabyte provides two no-cost software tools for platform management. The Gigabyte Management Console is designed for managing a single server, while the Gigabyte Server Manager allows administrators to monitor and control multiple servers. In the event of an issue, administrators can quickly access the system's health status through a browser-based interface.

*Rail kit not included. Please refer to optional parts for compatible rail kit.

Specifications

Gigabyte E133-C10 Server - Specifications

Processor- 1 Socket

AMD EPYC 4004 Series Processors
AMD Ryzen 7000 Series Processors
Single processor, 5nm technology
Socket: 1x AM5
Chipset: AMD B650E
TDP up to 105W

Motherboard

MC13-BL1

Memory

4x DIMM slots
DDR5 memory supported only
Dual Channel memory architecture

Memory Speed

AMD Ryzen 9000:

UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)

UDIMM: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)

DIMM Module Sizes

DIMM up to 32GB supported
ECC UDIMM 1Rx8/2Rx8 supported
Non-ECC UDIMM 1Rx8/2Rx8/1Rx16 supported

Drive Bays

Front Side:

2 x 2.5" SATA hot-swappable bays

LAN

2 x 1Gb/s LAN ports (2 x Broadcom BCM5720)
Support NCSI function
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp

Input / Output

1 x TPM header

Front

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

Rear

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID button with LED

Backplane

Speed and bandwidth: SATA 6Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Expansion Slots

PCIe Cable:

1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU

Riser Card CRSE016:

1 x PCIe x4 (Gen4 x4) FHHL slot, from CPU

M-key
PCIe Gen4 x4, from FCH
Supports 2280/22110 cards

Chassis

Height: 43.5 mm

Width: 438 mm

Depth: 520 mm

Power Supply

1+1 550W 80 Plus Platinum redundant power supplies

1+1 800W 80 Plus Titanium redundant power supplies

System Management

Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Documentation

Gigabyte E133-C10 Server - Documentation

Gigabyte E133-C10 Server User Manual Gigabyte E133-C10 Server Data Sheet Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Server Management Console User Guide Gigabyte Redfish API Specification User Guide
