Gigabyte E143-E30 Server

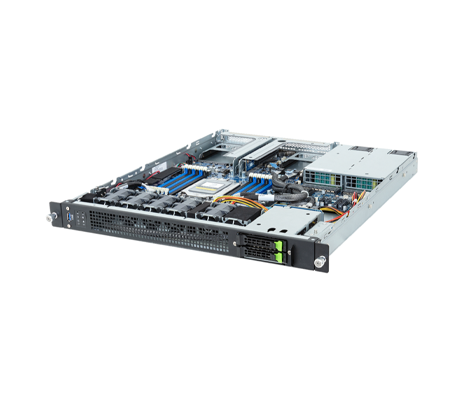

The 1U Gigabyte E143-E30 Edge Server is designed for high-performance computing applications such as file storage, autonomous vehicles, eCommerce, and more. It supports a single AMD EPYC 8004 series processor with up to 64 cores and 128 threads, plus a TDP of up to 225W. This CPU features a 6-channel memory architecture and can support up to 1TB of memory when all 12x memory slots are fitted with 96GB DDR5 RDIMMs.

Overview

Gigabyte E143-E30 Server - System Overview

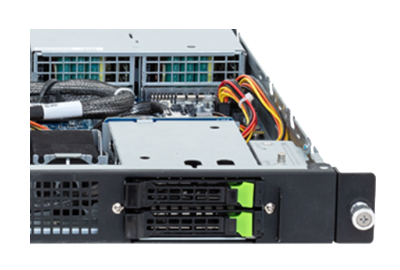

On the front of the Gigabyte E143-E30 Server there are 2x 2.5” hot-swappable drive bays with lime green tabs for Gen5 NVMe, SATA, or SAS4 configurations. A single M.2 slot with a PCIe Gen3 x4 interface is also available. SAS drives and RAID support will require a storage controller. The server provides expansion options with two riser cards, each supporting 1x PCIe Gen5 x16 FHHL slot. Just below these slots there are 2x OCP 3.0 Gen5 x16 slots. Depending on the model revision, the server can support a dual 850W redundant 80 PLUS Titanium or Platinum power supply.

Gigabyte E143-E30 (Rev. AAB1)

850W 80 PLUS Titanium redundant power supplies

Gigabyte E143-E30 (Rev. AAG1)

850W 80 PLUS Platinum redundant power supplies

Using Gigabyte’s proprietary management tools, administrators can control this system both at-chassis or remotely. The pre-installed Gigabyte Management Console allows for the management of individual servers or small clusters. Gigabyte also offers the Gigabyte Server Management (GSM) suite for download, which is ideal for overseeing large-scale server clusters remotely.

Specifications

Gigabyte E143-E30 Server - Specifications

Processor - Single Socket

AMD EPYC 8004 Series Processors
Single processor, 5nm technology
Up to 64 cores, 128 threads
cTDP up to 225W
1 x LGA 4844 (Socket SP6)
System on Chip
Motherboard: ME33-DC0

Memory

12x DIMM slots
DDR5 memory supported only
6-Channel memory architecture
RDIMM up to 96GB supported
Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)

Drive Bays

2 x 2.5" Gen5 NVMe/SATA/SAS4* hot-swappable bays

Power Supplies

850W 80 PLUS Titanium redundant power supplies

850W 80 PLUS Platinum redundant power supplies

Fans

5 x 40x40x56mm (30,000rpm)

LAN

1 x 1Gb/s LAN port (1 x Intel I210-AT)
Supports NCSI function
1 x 10/100/1000 Mbps Management LAN

I/O

Internal I/O

1 x TPM header

Front I/O

1 x USB 3.2 Gen1 port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LED (1x LED disabled)
1 x Storage activity LED
1 x System status LED

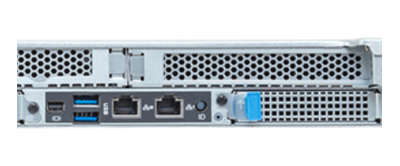

Rear I/O

2 x USB 3.2 Gen1 ports
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED

Backplane I/O

Speed and bandwidth:

PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Expansion Slots

Riser Card CRS101V:

1 x PCIe x16 (Gen5 x16) FHHL slot

Riser Card CRS101W:

1 x PCIe x16 (Gen5 x16) FHHL slot

2 x OCP NIC 3.0 (Gen5 x16)
Supported NCSI function

1 x M.2 slot (PCIe Gen3 x4)
Supports 2280/22110 cards

Dimensions

Rail Kit

2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R (MOQ: 500)
2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R

Documentation

Gigabyte E143-E30 Server - Documentation

Gigabyte E143-E30 Server Data Sheet Gigabyte E143-E30 Server User Manual Gigabyte Server Management Console User Guide Gigabyte GSM Server Installation & Configuration Guide Gigabyte GSM Agent Installation & Features Guide Gigabyte Easy BIOS Refresh User Guide Gigabyte Redfish API Specification
