Gigabyte E163-S30 Edge Server

Housed in a 1U chassis, the Gigabyte E163-S30 Edge Server is designed for networking and edge applications. It has a single CPU socket compatible with 4th or 5th Generation Intel Xeon Scalable processors. There are 16x DDR5 DIMM slots on the system board, when fully configured has a maximum memory capacity of 4TB. On the front of the server, there are 2x 2.5-inch Gen4 NVMe/SATA/SAS hot-swappable drive bays. To expand the capabilities of this system, there are dual PCIe Gen5 x16 slots.
Configure

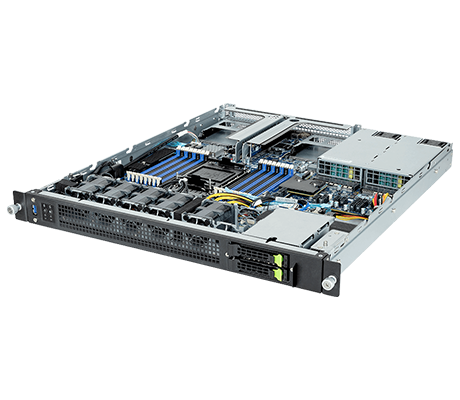

Gigabyte E163-S30 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte E163-S30 Edge Server - System Overview

Additional Information

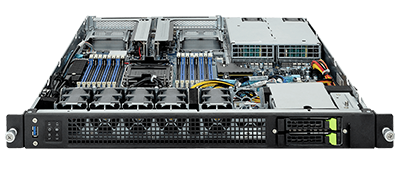

Gigabyte E163-S30 front detail

Also used as a hybrid private cloud server, the Gigabyte E163-S30 server houses a single 4th or 5th Generation Intel Xeon Scalable processor. With a Thermal Design Power (TDP) rating of up to 350W, 4th gen options up to 60 cores and 5th gen supporting up to 64 cores can be installed. Using Registered DDR5 DIMMs it has a maximum memory capacity of up to 1.5TB or with 3DS versions up to 4TB is supported. Memory speeds are dependent on the CPU and memory modules installed with 4th gen CPUs offering speeds of up to 4800MT/s and 5th gen delivering up to 5600MT/s. With 2DIMMS per channel memory speeds may be reduced.

Gigabyte E163-S30 detail top

There is a single 1GbE LAN port on the rear of the server along with a 10/100/1000 management LAN port. A total of 2x hybrid Gen4 hot-swappable drive bays are available on the front of the system. A SAS card is required for SAS device support. Optional Virtual RAID on CPU (VROC) is supported for advanced RAID for NVMe storage devices. A single M.2 on the system board uses a PCIe 3.0 x4 slot and is ideal for fast access storage needs or OS installation. Powering this system are dual 800W 80 PLUS Platinum power supplies in a redundant configuration. Temperatures are regulated with 5x 40mm fans spinning at 30,000 rpm.

*A rail kit is not included with the system. Compatible rail kits include:

  • 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R
  • 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R

Available Configurations

Explore available configurations for the Gigabyte E163-S30 Edge Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte E163-S30 Edge Server - Specifications

Processor - 1 Socket

  • 5th Generation Intel Xeon Scalable Processors
  • 4th Generation Intel Xeon Scalable Processors
  • Intel Xeon CPU Max Series
  • CPU TDP up to 350W

    • Socket:

  • 1 x LGA 4677 / Socket E

Motherboard

  • MS33-DC0

Memory

    Memory Slots:

  • 16 x DIMM slots
  • DDR5 memory supported only
  • 8-Channel memory architecture
  • 3DS RDIMM modules up to 256GB supported

    • Memory Speed:

  • 5th Gen Intel Xeon: Up to *5600MHz (1DPC), 4400MHz (2DPC)
  • 4th Gen Intel Xeon: Up to 4800MHz (1DPC), 4400MHz (2DPC)
  • Intel Xeon Max Series: Up to 4800MHz (1DPC), 4400MHz (2DPC)

Drive Bays

  • 2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
    • *Note: SAS card is required for SAS drive support

LAN

    Rear Side:

  • 1 x 1Gb/s LAN port (1 x Intel I210-AT)
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920 x 1200@60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal:

  • 1 x TPM header
  • 1 x VROC connector

    • Front:

  • 1 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 1 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 1 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane:

  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

    • TPM:

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    Riser Card CRS101O:

  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU

    • Riser Card CRS101P:

  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU

  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU

    • M.2:

  • 1 x M.2
  • Supports 2280/22110 cards

Chassis

    Height: 43.5mm

    Width: 438mm

    Depth: 520mm

Power Supply

  • 1 + 1 800W 80 PLUS Platinum redundant power supplies

System Cooling

  • 5 x 40x40x56mm (30,000rpm)

System Management

    Aspeed AST2600 management controller

    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
