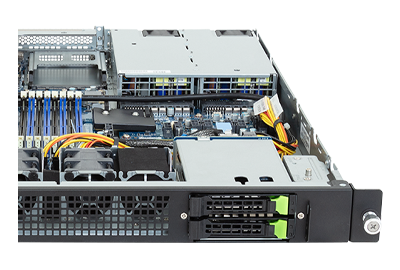

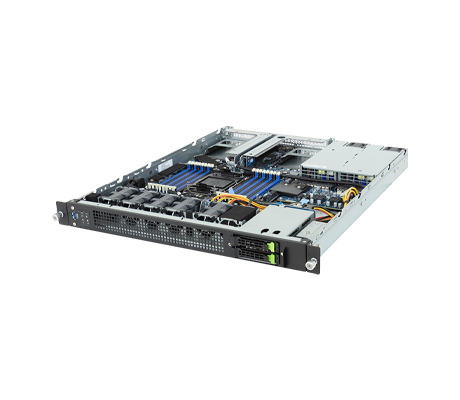

Built for networking, edge, and hybrid/private cloud applications, the 1U Gigabyte E164-S30 Server supports 2x SFF Gen5 NVMe, SATA, and SAS4 drive bay configurations. This machine is powered by a single Intel Xeon 6 processor supporting 6700 series with E-Cores, 6700 series with P-Cores, or 6500 series with P-Cores. These CPUs feature a maximum TDP of up to 350W and support 16x DIMMs slots with an 8-channel memory architecture.
The Gigabyte E164-S30 supports DDR5 Registered DIMMs (RDIMMs) or Multiplexor Combined Ranks DIMMs (MCR DIMMs). RDIMMs provide a maximum speed of up to 6400 MT/s, while MCRDIMMs can reach speeds of up to 8000 MT/s. It’s important to note, that MCRDIMMs are only supported with Intel Xeon 6 processors with P-Cores and in a 1x DIMM Per Channel (1DPC) configuration. In addition to the dual drive bays on the front of the server, there are 2x M.2 slots on the motherboard with a PCIe Gen5 x2 interface for 2280 and 22110 cards.

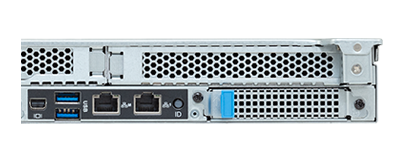

On the back of the chassis there are 2x FHHL PCIe Gen5 x16 slots and 2x OCP 3.0 Gen5 x16 slots. This short-depth edge server also supports dual 800W 80+ Titanium redundant power supplies and a single 1Gb/s LAN port via Intel I210-AT. This system is managed by Gigabyte’s pre-installed software, Gigabyte Management Console. Gigabyte Server Management (GSM) provides for multiple server clusters and offers a more robust set of features. Ideally, the Gigabyte Management Console is deployed for a single server or small cluster. The GSM Mobile application is available through the App store for use with smartphones and tablets enabling administrators to easily monitor and control the network assets.
Gigabyte E164-S30 Server - Specifications
Processor - Single Socket
Intel Xeon 6 Processors
Intel Xeon 6 6700 Series with E-Cores
Intel Xeon 6 6700 Series with P-Cores
Intel Xeon 6 6500 Series with E-Cores
Single processor, TDP up to 350W
1 x LGA 4710 (Socket E2)
System on Chip
Memory
16x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s
*MCRDIMMs are only supported with Intel Xeon 6 CPUs with P-Cores in a 1DPC configuration
Drive Bays
Front Hot-Swap:
2 x 2.5" Gen5 NVMe/SATA/SAS4*
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA
