Gigabyte E263-S30 Server

Powered by a single Intel processor, the Gigabyte E263-S30 Server features up to 4TB of DDR5 memory plus 2x double-wide GPUs can be installed for GPU acceleration. In addition to standard RDIMMs and 3DS RDIMMs, the system also supports Intel Optane Persistent Memory 300 series modules. The 2U platform can be outfitted with a 5th or 4th Generation Intel Xeon Scalable processor from the Platinum, Gold, or Silver families, and will also support the Intel Xeon CPU Max series. The system has only 2x 2.5” Gen4 NVMe/SATA/SAS hot-swappable drive bays on the rear, and a single M.2 PCIe Gen3 x4 slot on the motherboard.
Configure

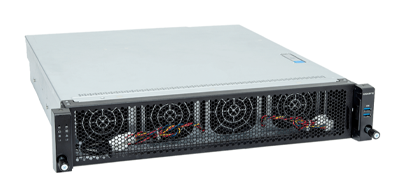

Gigabyte E263-S30 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte E263-S30 Server - System Overview

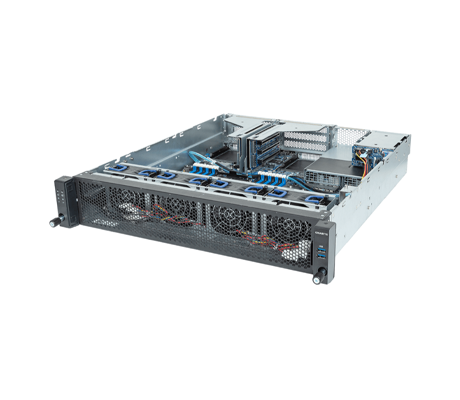

Gigabyte E263-S30 server front

The E263-S30 system targets networking and edge applications providing better CPU performance per watt, PCIe 5.0 capabilities, and DDR5 memory, delivering versatility with GPU acceleration. There are two revisions for this server, the rev. AAD1 and rev. AAV1. Both servers have the same components with the exception of power supplies.



Gigabyte E263-S30 Server (rev. AAD1):
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Gigabyte E263-S30 Server (rev. AAV1):
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply
Gigabyte E263-S30 server rear

Available Configurations

Explore available configurations for the Gigabyte E263-S30 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte E263-S30 Server - Specifications

Processor - Dual-Sockets

  • 5th Generation Intel® Xeon® Scalable Processors
  • 4th Generation Intel® Xeon® Scalable Processors
  • Intel® Xeon® CPU Max Series
  • Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
  • Single processor, CPU TDP up to 350W
  • 1x LGA 4677, Socket E
  • Intel C741 Chipset

Memory

  • 16x DIMM slots
  • DDR5 memory supported only
  • 8-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

Drive Bays

    Rear Side:
  • 2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

    • *SAS card is required for SAS devices support

Power Supplies

    Gigabyte E263-S30 (rev. AAD1):
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte E263-S30 (rev. AAV1):
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 1 x M.2 Slots
  • 1 x TPM Header
  • 1 x VROC connector
  • 2 x OCP 3.0 mezzanine slots PCIe 5 x16

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 1 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 1 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Backplane P/N: 9CBP2022NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

    Riser Card CRS201C:

  • 1 x PCIe x16 (Gen5 x16) FHFL slot

    • Riser Card CRS201D:

  • 1 x PCIe x16 (Gen5 x16) FHFL slot
  • 2 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth
  • Supported NCSI function

    • 1x M.2 slot:

  • M-Key
  • PCIe Gen3 x4
  • Supports 2280/22110 cards

Dimensions

    Height: 87.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 520mm (20.47")

Gigabyte E263-S30 Server - Documentation

Gigabyte E263-S30 Server User Manual Gigabyte E263-S30 Server Qualified Vender List Gigabyte E263-S30 Server OS Support List Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide (Rev. AAD1) Data Sheet (Rev. AAV1) Data Sheet
