Gigabyte E263-Z30 Server

Built with a single socket to support an AMD EPYC 9004 or 9005 series processor with up to 192 cores, the 2U Gigabyte E263-Z30 server supports a 12-channel memory architecture. It can deliver up to 3TB of memory using DDR5 3DS Registered DIMMs (RDIMM) or using standard RDIMM modules, up to 1TB of memory. CPUs supported on the E263-Z30 can have a cTDP of up to 400W at ambient 30°C. It features an Aspeed AST2600 management controller, and two riser cards with a Gen5 x16 expansion slots. Despite not having any drive bays on the front panel, this system supports dual 2.5” Gen4 NVMe/SATA/SAS hot-swappable drive bays on the rear, plus a single M.2 slot.
Configure

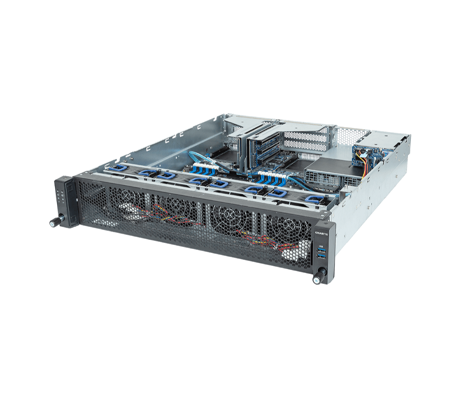

Gigabyte E263-Z30 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte E263-Z30 Server - System Overview

Designed for networking and edge applications such as real-time monitoring and autonomous vehicles, this machine can help take businesses to the next level with its high-performance features providing maximum efficiency and a quick ROI.

Gigabyte E263-Z30 server front Gigabyte E263-Z30 server rear

Available Configurations

Explore available configurations for the Gigabyte E263-Z30 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte E263-Z30 Server - Specifications

Processor - Single-Sockets

  • AMD EPYC 9005 series processors
  • AMD EPYC 9004 series processors
  • Single processor, 4nm technology
  • Up to 192, 384 threads per processor
  • Supports CPU 300W at ambient
  • Supports CPU 400W at ambient 30°C
  • 1x LGA 6096, Socket SP5
  • System on Chip

Memory

  • 12x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz

Drive Bays

    Rear Side:
  • 2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

    • *SAS card is required for SAS devices support

Power Supplies

  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 1 x M.2 Slots
  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 1 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 1 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Backplane P/N: 9CBP2022NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

    Riser Card CRS201M:

  • 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs

    • Riser Card CRS201H:

  • 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs
  • 2 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth
  • Supported NCSI function

    • 1x M.2 slot:

  • M-Key
  • PCIe Gen3 x4
  • Supports 2280/22110 cards

Dimensions

    Height: 87.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 520mm (20.47")
