Gigabyte E283-S90 Server

Two iterations of the Gigabyte E283-S90 server are available. Each has the same number of drive bays but a different power supply. On the rear of the system there are 4x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays. Under the hood, the motherboard supports dual 5th or 4th Generation Intel Xeon Scalable Processors or Xeon CPU Max series with a TDP of up to 350W. 16x DDR5 DIMM slots besides each CPU provide a total of 32x DIMMs supporting up to 8TB of memory, plus Intel Optane Persistent Memory 300 series modules. Four large fans help cool all of the components including 6x FHHL PCIe Gen5 x16 slots.
Configure

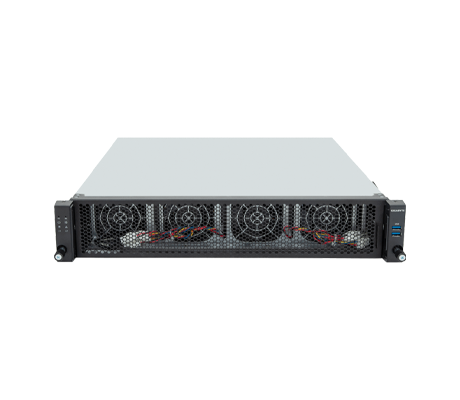

Gigabyte E283-S90 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte E283-S90 Server - System Overview

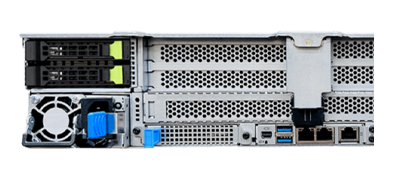

Gigabyte R283-S90 server rear

The 2U E283-S90 server is ideal for networking and edge applications. There are two revisions for this server, the rev. AAD1 and rev. AAV1. Both servers have the same components with the exception of power supplies, which feature Platinum or Titanium rated PSUs, respectively.

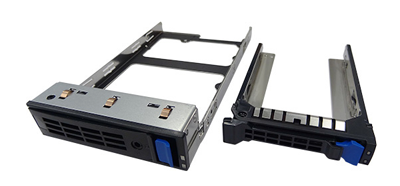

Gigabyte R283-S90 server drive cages

Gigabyte E283-S90 Server (rev. AAD1)
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Gigabyte E283-S90 Server (rev. AAV1)
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

Available Configurations

Explore available configurations for the Gigabyte E283-S90 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte E283-S90 Server - Specifications

Processor - 1-Socket

  • 5th Generation Intel Xeon Scalable Processors
  • 4th Generation Intel Xeon Scalable Processors
  • Intel® Xeon® CPU Max Series
  • Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
  • Dual processor, CPU TDP up to 350W
  • 2 x LGA 4677, Socket E
  • Intel C741 Chipset

Memory

  • 32x DIMM slots
  • DDR5 memory supported only
  • 8-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

Drive Bays

  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays on rear side
    • *SAS card is required for SAS devices support

Power Supplies

    Gigabyte E283-Z90 (rev. AAD1)
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte E283-Z90 (rev. AAV1)
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 1 x TPM header
  • 1 x VROC connector
  • 2 x OCP 3.0 mezzanine slots PCIe Gen5 x16

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Backplane P/N: 9CBP2022NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

    Riser Card CRS101J:
  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0

    • Riser Card CRS101K:
  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

    • Riser Card CRS202G:
  • 2 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_0*

    • Riser Card CRS202H:
  • 2 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_1

  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • Supported NCSI function

Dimensions

    Height: 87.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 625mm (24.60")
