Gigabyte E283-Z90 Server

There are four 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays on the back of the Gigabyte E283-Z90 server, plus 2 x M.2 slots with a PCIe Gen3 interface on the motherboard for additional storage. The system is powered by dual AMD EPYC 9004 series processors, which support 24x DDR5 memory modules accessing a 12-channel memory architecture. A total of 6TB of memory is supported when all DIMM slots are filled with 256GB 3DS RDIMMs. Half of the maximum memory is supported with 128GB RDIMMs. Four FHHL PCIe Gen5 x16 slots and two FHHL PCIe Gen5 x8 slots are kept cool by 4x 80x80x38mm fans on the front panel that spin at 18,300 rpm.
Configure

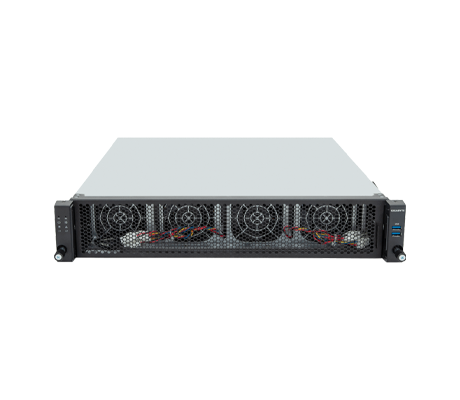

Gigabyte E283-Z90 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte E283-Z90 Server - System Overview

The Gigabyte E283-Z90 server is a flexible appliance designed for networking applications, including use as a file server, a shared Internet connection, access for remote workers via VPN and a host of other uses. Power is provided by dual redundant 1600W 80 PLUS Platinum PSUs.

Gigabyte E283-Z90 server front Gigabyte E283-Z90 server front

Gigabyte E283-Z90 Server - Specifications

Processor - 1-Socket

  • AMD EPYC™ 9004 series processor family
  • Dual processor, 5nm technology
  • Up to 96-core, 192 threads per processor
  • cTDP up to 400W
  • 2 x LGA 6096, Socket SP5
  • System on Chip

Memory

  • 24x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz

Drive Bays

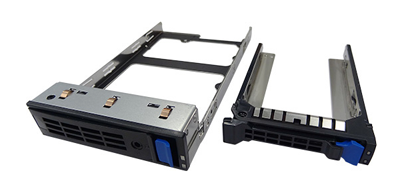

  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays on rear side
    • *SAS card is required for SAS devices support

Power Supplies

  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 3 x M.2 slot
  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots PCIe Gen5 x16

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

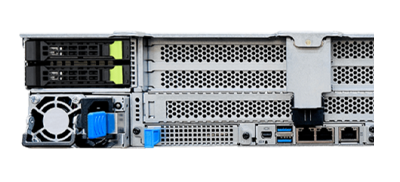

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Backplane P/N: 9CBP2022NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

    Riser Card CRS101T:
  • 1x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0

    • Riser Card CRS101Q:
  • 1x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

    • Riser Card CRS202M:
  • 1x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
  • 1x PCIe x16 (Gen5 x8) FHHL slot, from CPU_0

    • Riser Card CRS202N:
  • 1x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
  • 1x PCIe x16 (Gen5 x8) FHHL slot, from CPU_0

  • 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
  • 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
  • Supported NCSI function

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x4 from CPU_0
  • Supports 2280/22110 cards

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x4 from CPU_1
  • Supports 2280/22110 cards
  • Occupied by CRS2810. 4 x SATA ports

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x2 from CPU_1
  • Supports 2280/22110 cards

Dimensions

    Height: 87mm (3.42")
    Width: 438mm (17.32")
    Depth: 625mm (24.60")
