Gigabyte E283-Z91 Edge Server

Ideal for networking applications, the Gigabyte E283-Z91 Edge Server is a housed in a 2U chassis, with support for up to 2x AMD EPYC 9004 or 9005 Series Processors. Each socket holds 12x DIMM slots for a total of 24x DIMM slots on the system board, and a maximum memory capacity of up to 6TB. Accessible from the rear of the server, there are 4x 2.5-inch SATA/SAS4 hot-swappable drive bays. Expanding the capabilities of this system are 3x PCIe Gen5 x16 slots per CPU.
Configure

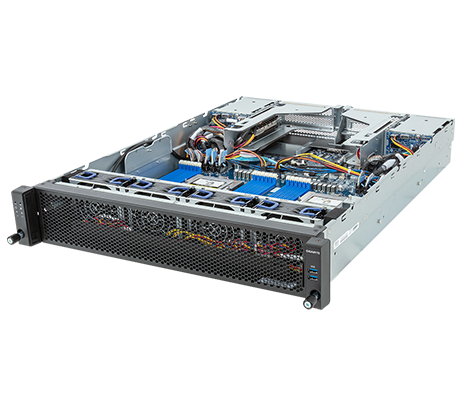

Gigabyte E283-Z91 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte E283-Z91 Edge Server - System Overview

Additional Information

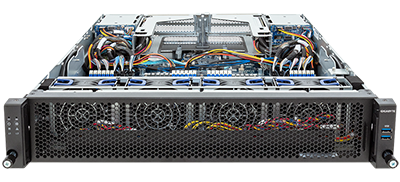

Gigabyte E283-Z91 front detail

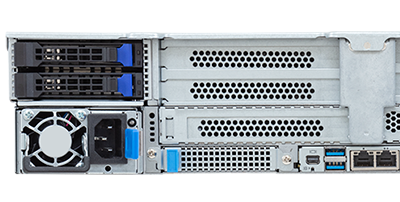

The Gigabyte E283-Z91 server houses up to 2x 4th or 5th Generation AMD EPYC Series Processors and a total of 24x DIMM slots. The configurable Thermal Design Power (cTDP) rating is listed at up to 300W per CPU, however under limited thermal conditions CPUs of up to 400W are supported. There are 2x 1GbE LAN ports on the rear of the system along with a single management LAN port. A total of 4x 2.5-inch SATA/SAS4 hot-swappable drive bays are available on the rear as well. A SAS card is required for support for SAS devices. Each CPU is also in charge of an OCP 3.0 card slot with a PCIe Gen5 x16 bandwidth

Gigabyte E283-Z91 detail top

Powering this system are either dual 1600W 80 PLUS Titanium or Platinum power supplies in a redundant configuration, depending on which revision. Each CPU is connected to a single M.2 slot which is ideal for fast access storage needs or OS installation. To regulate the temperatures in the system, there are 4x 80mm fans in the chassis.

Revisions

Rev. AAV1

  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

Rev. AAD1

  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Gigabyte E283-Z91 Edge Server - Specifications

Processor - 2 Sockets

  • AMD EPYC 9005 series processors
  • AMD EPYC 9004 series processors
  • Up to 192 cores, 384 threads processor
  • cTDP up to 300W

    • Socket:

  • 2 x LGA 6096 / Socket SP5

Motherboard

  • MZ93-FS1

Memory

    Memory Slots:

  • 24 x DIMM slots
  • 12-Channel memory architecture

    • Memory Type:

  • RDIMM
  • 3DS RDIMM

    • Memory Speed:

  • Up to 4800MHz

    • DIMM Module Sizes:

  • RDIMM: Up to 96GB supported
  • 3DS RDIMM: Up to 256GB

Drive Bays

  • 4 x 2.5" SATA/SAS4 hot-swappable bays, via CRS2810 from CPU_1
    • *Note: SAS card is required for SAS drive support

LAN

    Rear Side:

  • 2 x 1GbE LAN ports (1 x Intel I350-AM2)
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920 x 1200@60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal:

  • 2 x M.2 slots
  • 1 x TPM header
  • 2 x OCP 3.0 slots

    • Front:

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LEDs
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID LED

    • Backplane:

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s

    • TPM:

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    PCIe cable x 6:

  • 3 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_0
  • 3 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_1
  • 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0

    • M.2:

  • 2 x M.2
  • Supports 2280/22110 cards

Chassis

    Height: 87.5mm

    Width: 438mm

    Depth: 815mm

Power Supply

    Rev. AAV1:

  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

    • Rev. AAD1:

  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

System Cooling

  • 4 x 80x80x38mm (18,300rpm)

System Management

    Aspeed AST2600 management controller

    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings

Gigabyte E283-Z91 Edge Server - Documentation
