Additional InformationDDR5 memory modules supported on the Gigabyte E285-D90 Server include Registered DIMMs (RDIMM) and Multiplexed Rank DIMM (MRDIMM) modules. RDIMMs will provide memory speeds of up to 8000MT/s or using MRDIMMs memory speeds of up to 12800MT/s are supported but only with certain CPU SKUs. There are 4x 2.5-inchGen5 NVMe, SATA, SAS-4 hot-swap bays on the rear of the chassis. In addition to the rear storage, there are 3x Gen4 x4 slots and a Gen4 x2 slot, which can be outfitted with M.2 drives to boot the OS and for extra storage. The system is powered by dual redundant 3200W PLUS Titanium power supply units (PSU).
Chassis Configurations

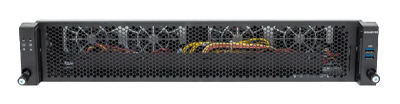

Gigabyte E285-D90-AS1 Server
- Air-cooled via 4 x 80x80x80mm fans
4x full-height, half-length Gen6 slots, and a Gen6 x16 connector for an OCP NIC 3.0 connector provide expansion options. The dedicated management LAN port on the back of the system provides access for remote management of the system. Gigabyte provides some free-of-charge management utilities including the pre-loaded Gigabyte Management Console and the free to download Gigabyte Server Management utility or GSM. GSM also offers a plugin for VMware vCenter and a mobile app for at-chassis management that supports both iOS and Android operating systems.
Explore available configurations for the Gigabyte E285-D90 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- AMD EPYC 9006 SP7 Server processors
- Dual processors, PPT up to 600W
- 2 x LGA 7536 (Socket SP7)
- Motherboard: MD95-FS0
- Chipset: Integrated into SoC
- 16-Channel DDR5 RDIMM/MRDIMM, 32 x DIMMs
- RDIMM: Up to 8000 MT/s
- MRDIMM: Up to 12800 MT/s
*MRDIMMs are supported only on select CPU SKUs.
- 1x Management LAN
Front hot-swap:
- 4x 2.5" Gen5 NVMe/SATA/SAS4
Internal M.2:
- 2x M.2 (2242/2260/2280/22110), PCIe Gen4 x4
- 2x M.2 (2242/2260/2280/22110), PCIe Gen4 x2
*Storage card(s) required to support SATA and SAS drives.
- 4x FHHL x16 (Gen6 x16)
- 1x OCP NIC 3.0 (Gen6 x16), Support NCSI
Front:
- 2x USB 3.2 Gen1
Rear:
- 2x USB 3.2 Gen1, 1 x Mini-DP, 1 x MLAN
- 2x 3200W 80 PLUS Titanium redundant power supplies
- AC Input: 100-240V
*The system power supply requires C19 power cord
- 2U rackmount
- Weight: 438 x Height: 87.5 x Depth: 625 mm
