Gigabyte G262-IR0 Server

Supporting NVIDIA HGX A100 with 4x SXM4 GPUs, the Gigabyte G262-IR0 server is powered by dual 3rd generation Intel Xeon Scalable processors with up to 40 cores per socket. The NVIDIA NVLink board combines NVIDIA A100 Tensor core GPUs with high-speed interconnects boasting GPU to GPU communication speeds of up to 600GB/s offering superb performance. The 2U chassis features 4x 2.5” Gen4 NVMe U.2/ SATA hot-swappable HDD or SDD drive bays on the front panel, with 2x PCIe 4.0 slots below the storage bays and 4x low-profile PCIe Gen4 x16 slots in back.
Configure

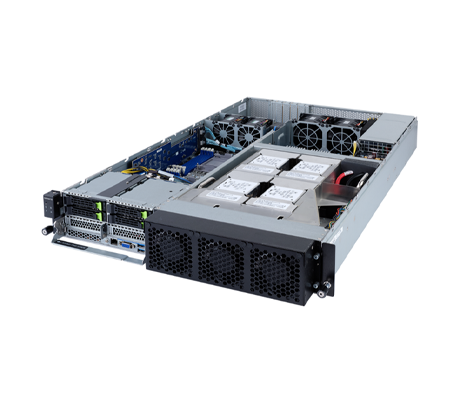

Gigabyte G262-IR0 side view.
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G262-IR0 Server - System Overview

The 4-bay G262-IR0 server is suitable for AI, AI Training and Inference, high-performance computing applications, and more. It delivers up to 4TB of RAM when all 16x DDR4 DIMM slots are populated with 3DS RDIMM or 3DS LRDIMM memory modules. When standard RDIMMs or LRDIMMs are installed, it delivers up to 2TB of memory. In addition to the 6x low-profile PCIe Gen4 x16 slots, it also supports a single OCP 3.0 mezzanine card. The system is powered by dual redundant 80 PLUS Platinum 3000W PSUs.

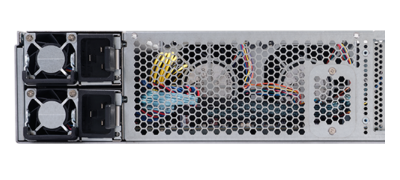

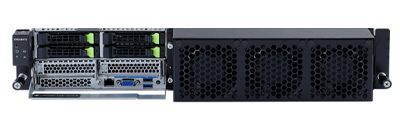

Gigabyte G262-IR0 front Gigabyte G262-IR0 rear

Available Configurations

Explore available configurations for the Gigabyte G262-IR0 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte G262-IR0 Server - Specifications

Processor - 2 Sockets

  • 3rd Generation Intel® Xeon® Scalable Processors
  • Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
  • Dual processor, 10nm technology
  • Up to 40-core, 80 threads per processor
  • TDP up to 270W

    • Socket:

  • 2 x LGA 4189

    • Chipset:

  • Intel® C621A Chipset

Motherboard

  • MH62-HD2

Memory

    Memory Slots

  • 16x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • LRDIMM
  • 3DS RDIMM
  • 3DS LRDIMM

    • Memory Speed

  • Up to 3200/2933/2666 MHz

    • DIMM Module Sizes

  • RDIMM/LRDIMM: Up to 128GB
  • 3DS RDIMM/3DS LRDIMM: Up to 256GB

Drive Bays

  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable HDD/SSD bays

LAN

  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 1 x TPM header
  • 1 x Front panel header

    • Front

  • 2 x USB 3.0
  • 1 x D-Sub VGA
  • 1 x MLAN
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Status LED
  • 1 x Reset button
  • 1 x HDD access LED

    • Rear

  • N/A

    • Backplane I/O

  • 4 x 2.5" NVMe/SATA hybrid ports
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots

  • 4 x SXM4 sockets for NVIDIA HGX™ A100 4-GPU 80GB module
  • 1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_0
  • 1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_1
  • 4 x PCIe x16 (Gen4 x16) low-profile slots on rear side, from PEX88096

    • 1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth, from CPU_0

Chassis

    Enclosure

    Height: 86.8mm (3.41 in)

    Width: 448mm (17.63 in)

    Depth: 800mm (31.49 in)

Power Supply

  • 2‎ x 3000W 80 PLUS Platinum redundant power supplies

System Fans

  • 2 x 60x60x76mm (21,700rpm)
  • 5 x 80x80x80mm (17,000rpm)

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
