Gigabyte G293-S40 GPU Server

The Gigabyte G293-S40 GPU server is an Intel-based, high-performance platform for AI, AI Training, and other HPC applications. The 2U platform supports dual 4th or 5th generation Intel Xeon Scalable processors with a TDP of up to 350W, plus Intel’s Xeon CPU Max series to deliver exceptional performance improvements, efficiency, and security. The G293-S40 GPU server offers up to 8x double slot Gen4 GPU cards, 24x DIMMs for up to 6TB of memory, and 8x SFF hybrid drive bays with Gen5 NVMe and SATA.
Configure

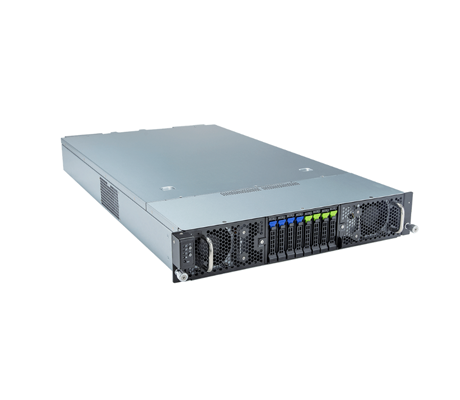

Gigabyte G293-S40 GPU Server side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G293-S40 GPU Server - System Overview

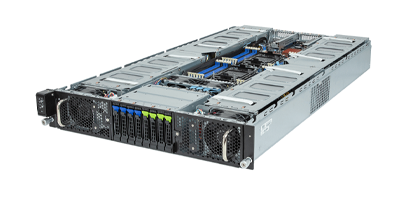

Gigabyte G293-S40 GPU server side view

Expansion

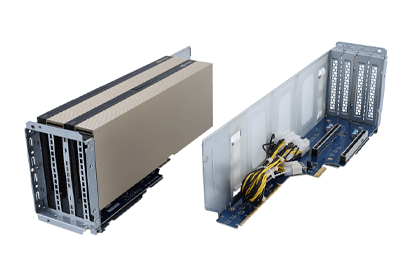

Gigabyte G293-S40 GPUs

Available Configurations

Explore available configurations for the Gigabyte G293-S40 GPU Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte G293-S40 GPU Server - Specifications

Processor - 2 Sockets

  • 5th Generation Intel Xeon Scalable Processors
  • 4th Generation Intel Xeon Scalable Processors
  • Intel Xeon CPU Max Series
  • Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
  • CPU TDP up to 350W
  • Motherboard: MS43-G20
  • Socket: 2 x LGA 4677 (Socket E)

Memory

    Memory Slots

  • 24 x DDR5 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • 3DS RDIMM

    • Memory Speed

  • Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

    • DIMM Module Sizes

  • RDIMM: Up to 128GB
  • 3DS RDIMM: Up to 256GB

Drive Bays

    8 x 2.5" hot-swappable HDD/SSD bays
  • 4 x green trays compatible with Gen5 NVMe/SATA/SAS devices
  • 4 x blue trays compatible with SATA/SAS devices

    • *Note: SAS card is required for SAS drive support

LAN

  • 2 x 10Gb/s BASE-T LAN ports (Intel X710-AT2)
  • Supported NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

    • RAID

  • Intel® SATA RAID 0/1/10/5

    • Audio

  • N/A

Input / Output

    Internal

  • 1 x TPM header

    • Front

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x Status status LED
  • 1 x Reset button

    • Rear

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • 1 x System status LED

    • Backplane I/O

  • Backplane P/N: 9CBPG086NR-00
  • PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

  • 8 x PCIe x16 slots (Gen4 x16 bus), from PCIe switch PEX88048
  • 1 x PCIe x16 (Gen5 x16 bus) low profile half-length slot, from CPU_0
  • 1 x PCIe x16 (Gen5 x16 bus) low profile half-length slot, from CPU_1

    • *Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)

Chassis

    Enclosure

    Height: 87.5mm

    Width: 448mm

    Depth: 800mm

Power Supply

  • 2 x 3000W (240V) 80 PLUS Titanium redundant power supply

System Cooling

  • 8 x 80x80x38mm (18,300rpm)

System Management

    Aspeed AST2600 management controller

    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
