Gigabyte G293-S41 GPU Server

Powering the Gigabyte G293-S41 GPU server are Intel’s 4th or 5th generation Intel Xeon Scalable processors, including the Intel Xeon CPU Max series. They can support a TDP of up to 350W. Up to 4x double-slot Gen5 GPU cards, 24x DIMMs with up to 6TB of RAM, and 8x SFF hybrid drive bays are all available on this system. Outfitted with these accelerated components, the 2U G293-S41 GPU server is suitable for AI, AI training, AI inference, and high-performance computing workloads.
Configure

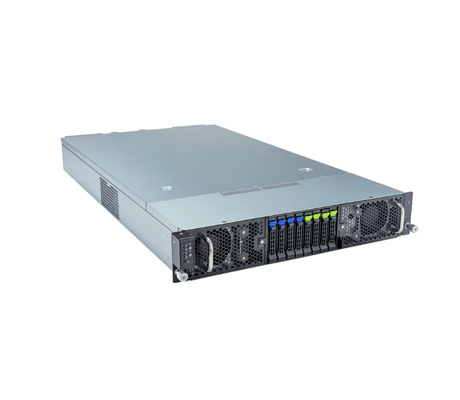

Gigabyte G293-S41 GPU Server side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G293-S41 GPU Server - System Overview

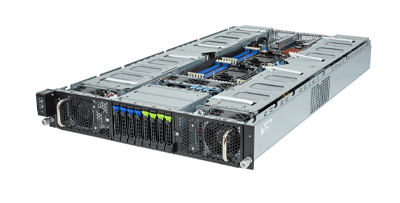

Gigabyte G293-S41 GPU server side view

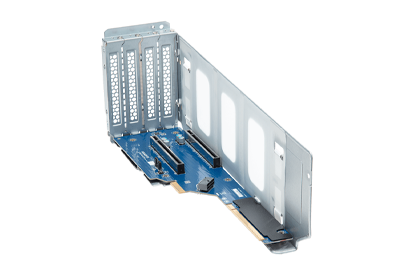

Expansion

Gigabyte G293-S41 GPUs

Gigabyte G293-S41 GPU Server - Specifications

Processor - 2 Sockets

  • 5th Generation Intel Xeon Scalable Processors
  • 4th Generation Intel Xeon Scalable Processors
  • Intel Xeon CPU Max Series
  • Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
  • CPU TDP up to 350W
  • Motherboard: MS43-G20
  • Socket: 2 x LGA 4677 (Socket E)
  • Intel C741 Chipset

Memory

    Memory Slots

  • 24 x DDR5 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • 3DS RDIMM

    • Memory Speed

  • Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

    • DIMM Module Sizes

  • RDIMM: Up to 128GB
  • 3DS RDIMM: Up to 256GB

Drive Bays

    8 x 2.5" hot-swappable HDD/SSD bays
  • 4 x green trays compatible with Gen5 NVMe/SATA/SAS devices
  • 4 x blue trays compatible with SATA/SAS devices

    • *Note: SAS card is required for SAS drive support

LAN

  • 2 x 10Gb/s BASE-T LAN ports (Intel X710-AT2)
  • Supported NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

    • RAID

  • Intel® SATA RAID 0/1/10/5

    • Audio

  • N/A

Input / Output

    Internal

  • 1 x TPM header

    • Front

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x Status status LED
  • 1 x Reset button

    • Rear

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • 1 x System status LED

    • Backplane I/O

  • Backplane P/N: 9CBPG086NR-00
  • PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

  • 4 x PCIe x16 or 8 x PCIe x8 slots (Gen5 x16 or x8 bus), from Phison PS701
  • 1 x PCIe x16 (Gen5 x16 bus) low profile half-length slot, from CPU_0
  • 1 x PCIe x16 (Gen5 x16 bus) low profile half-length slot, from CPU_1

    • *Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)

Chassis

    Enclosure

    Height: 87.5mm

    Width: 448mm

    Depth: 800mm

Power Supply

  • 2 x 3000W (240V) 80 PLUS Titanium redundant power supply

System Cooling

  • 8 x 80x80x38mm (18,300rpm)

System Management

    Aspeed AST2600 management controller

    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
