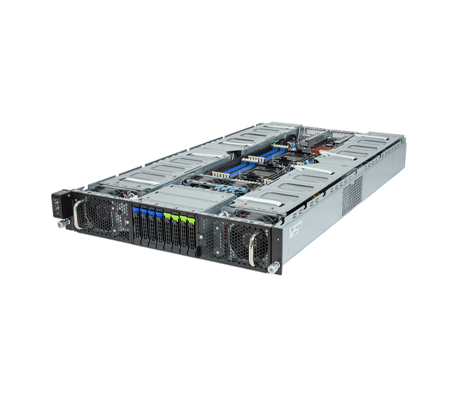

Gigabyte G293-S42 GPU Server

The 2U Gigabyte G293-S42 server is a dual-socket system supporting 4th or 5th generation Intel Xeon Scalable processors with up to 64 cores, a TDP of up to 350W, and DDR5 memory compatibility. To each side of the CPUs, the system offers 12x DIMMs for a total of 24x memory module slots supporting an 8-channel memory per processor architecture. When 3DS RDIMMs populate all slots with a maximum of 256GB, the server supports up to 6TB of RAM. Using standard RDIMM memory modules, it will support up to 2TB of memory. Up to 8x double-wide Gen5 GPU cards can be installed.

Overview

Gigabyte G293-S42 GPU Server - System Overview

The Gigabyte G293-S42 server is a dual root server designed for AI, AI inference, AI Training, and high-performance computing applications. In addition to 8x full-height, full-length slots for 8x double-wide performance GPUs, it also supports 2x low-profile PCIe 5.0 x16 slots for high-performance NICs. It is future-ready to support CXL 1.1 offering a disaggregate compute architecture supported via the PCIe pathways. Two 10GbE ports on the back of the system provide integrated NICs along with a dedicated management LAN port for remote access to the system.

GPUs supported on this system include those from NVIDIA, AMD, Xilinx, and Qualcomm. The system can be managed using Gigabyte’s management software suites that include the Gigabyte Management Console for a single server or Gigabyte Server Management (GSM) for multiple servers. Powering the system are dual redundant 3000W titanium level 80 PLUS PSUs.

Specifications

Gigabyte G293-S42 GPU Server - Specifications

Processor - 2 Sockets

Dual Processor
5th Generation Intel Xeon Scalable Processors
4th Generation Intel Xeon Scalable Processors
Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
TDP up to 350W
2x LGA 4677

Chipset:

Intel C741 Chipset

Motherboard

MS43-G20

Memory

24x DDR5 DIMM slots
8-Channel memory architecture

Memory Speed

Up to 4800 MHz, 4400 MHz

DIMM Module Sizes

RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported

Drive Bays

4 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays
2 x NVMe from CPU_0, 2 x NVMe from CPU_1

LAN

2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
Supports NCSI function
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

1 x TPM header
1 x VROC connector

Front

1 x Power button with LED
1 x ID button with LED
2 x LAN activity LED
1 x Reset button
1 x HDD activity LED
1 x System status LED

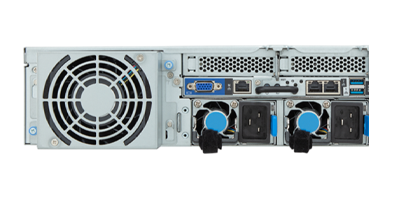

Rear

2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Reset button
1 x NMI button
1 x System Status LED

TPM

1 x TPM header with SPI interface
Optional TPM 2.0 kit: CTM010

Expansion Slots

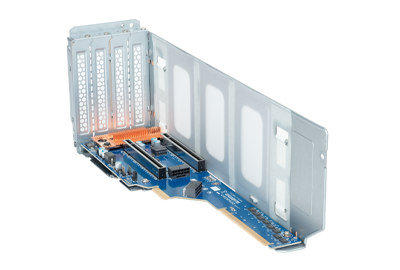

Riser Card CRSG622 x 2:

4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89048, for GPUs

Riser Card CRSG623 x 2:

4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89048, for GPUs

Riser Card CRSG01F x 2:

1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1

Chassis

Height: 87.5 mm

Width: 448 mm

Depth: 800 mm

Power Supply

Dual 3000W (240V) 80 PLUS Titanium redundant power supply

System Fans

8 x 80x80x38mm (18,300rpm)

System Management

Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Documentation

Gigabyte G293-S42 GPU Server - Documentation

Gigabyte G293-S42 Server Data Sheet Gigabyte G293-S42 Server User Manual Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Redfish API Specification User Guide Gigabyte Server Management Console User Guide
