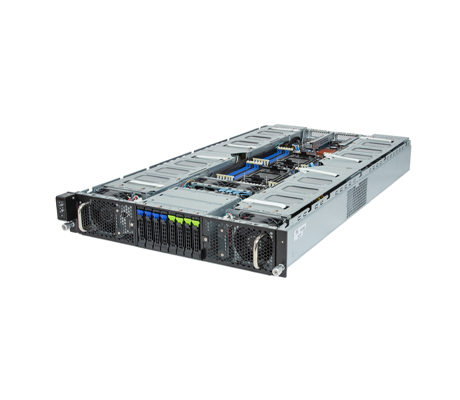

Gigabyte G293-S43 Server
Up to 16x single-slot Gen5 x16 GPU cards can be supported, rendering this platform suitable for mission-critical workloads, AI, AI training, and AI inference. The 8-bay Gigabyte G293-S43 server features 4x 2.5” Gen5 NVMe/SATA/SAS hot-swappable bays and 4x 2.5” SATA/SAS hot-swappable bays on the front of the chassis. Dual 4th or 5th Generation Intel Xeon Scalable processors, including those from the Platinum, Gold, and Silver CPU families, with up to 64 cores and a maximum TDP of 350W each can be installed.
*Certain PCIe or memory functionality may not be available if there is just one CPU installed.
Each CPU supports 8x memory channels and 12x DIMM slots, for a total of 24x DDR5 memory module slots. 256GB 3DS RDIMM modules allow for up to 6TB of RAM, while standard 96GB RDIMMs offer 2TB. Memory speeds of up to 4800MT/s are supported depending on the CPU, installed memory modules and configuration.

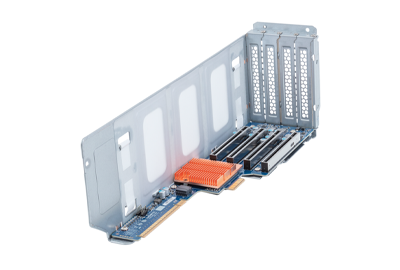

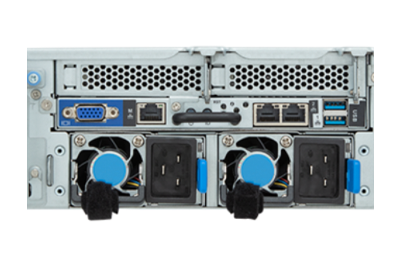

Powered by dual 3000W (240V) 80 PLUS Titanium redundant power supplies, the G293-S43 server supports a riser card with 2x PCIe Gen5 x16 low-profile slots. A dedicated MLAN port, and dual 10Gb/s BASE-T LAN ports provide for remote management and general integrated network connections. The Gigabyte Server Management (GSM) software uses tools which might include GSM Server, GSM CLI, GSM Agent, GSM Mobile, and GSM Plugin to assist with managing the system remotely or at-chassis.
