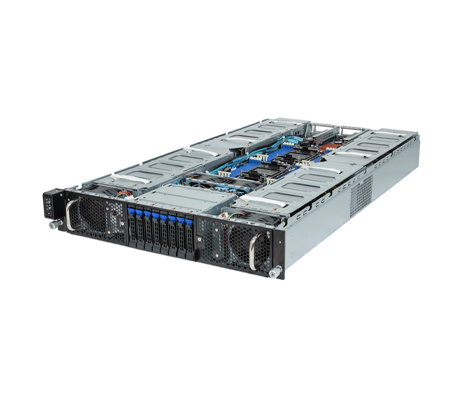

Gigabyte G293-S45 Server

Supporting up to 8x dual-slot Gen5 x16 GPU cards, the Gigabyte G293-S45 server is ideal for AI, AI training, AI inference, and mission critical workloads. Dual 4th or 5th Generation Intel Xeon Scalable processors with up to 64 cores and a TDP of up to 350W are supported. Up to 1TB of DDR5 Registered DIMMs (RDIMM) can be installed or up to 4TB of memory using 256GB 3DS RDIMM modules. The server has 8x 2.5” Gen4 NVMe/SATA/SAS hot-swappable drive bays.

Overview

Gigabyte G293-S45 Server - System Overview

Gigabyte G293-S45 front A SAS card is required for SAS device support. If NVMe drives are installed, additional NVMe cables are needed and will require a few PCIe slots. CPUs from the Platinum, Gold, and Silver processor families can be installed. Featuring 8-channel memory architecture, the Intel Xeon processors will enable a total of 16x DDR5 DIMMs with 1x DIMM per channel. A riser card under the hood that supports 2x PCIe Gen5 x16 low-profile slots for additioanl network controllers or a SAS card.

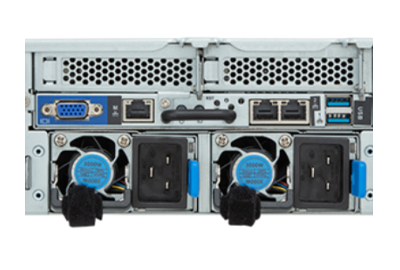

Gigabyte G293-S45 rear Gigabyte's Smart Crises Management and Protection (SCMP) technology is paired with dual 3000W (240V) 80 PLUS Titanium redundant power supplies to power the platform. With SCMP, the system will put the CPU into an extremely low power mode to minimize the power load, preventing an unplanned shutdown and preventing component damage or data loss in the event of a malfunctioning PSU or overheated system. The Gigabyte Server Management (GSM) software helps control the system at-chassis or remotely by utilizing programs such as GSM Server, GSM CLI, GSM Agent, GSM Mobile, and GSM Plugin.

Specifications

Gigabyte G293-S45 Server - Specifications

Processor- 2 Sockets

Dual 5th Generation Intel Xeon Scalable Processors
Dual 4th Generation Intel Xeon Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
cTDP up to 350W

Motherboard

MS43-G21

Memory

16x DDR5 DIMM slots
8-Channel memory architecture

Memory Speed

Up to 4800 MHz

DIMM Module Sizes

RDIMM modules up to 128GB supported
3DS RDIMM modules up to 256GB supported

Drive Bays

8 x 2.5" SATA/SAS hot-swappable bays

LAN

2 x 10Gb/s BASE-T LAN ports (Broadcom® BCM57416)
Support NCSI function
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

1 x TPM header
1 x VROC connector

Front:

1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN button
1 x System status LED
1 x HDD access LED

Rear

2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x NMI button
1 x System status LED

Backplane:

Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

TPM:

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Expansion Slots

Riser Card CRSG229 x 2:

4 x PCIe x16 (Gen5 x16) FHFL slots, from PS7101, for GPUs

Riser Card CRSG22A x 2:

4 x PCIe x16 (Gen5 x16) FHFL slots, from PS7101, for GPUs

Riser Card CRSG01F x 2:

1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1

Chassis

Height: 87.5 mm

Width: 448 mm

Depth: 800 mm

Power Supply

Dual 3000W (240V) 80 PLUS Titanium redundant power supply

System Management

Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
