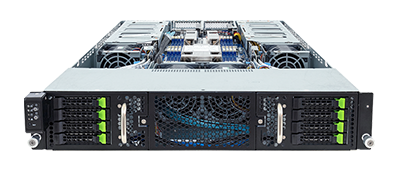

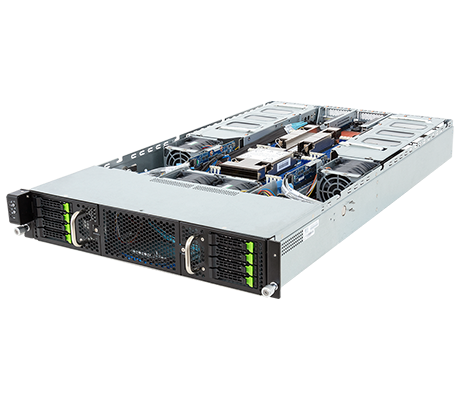

The Gigabyte G293-S46 GPU Server houses dual 4th or 5th Gen, Intel Xeon Scalable or Max series processors plus up to 4x dual-slot Gen5 GPUs. It is ideal for AI applications such as training or inference, visual computing, and high-performance computing. It supports a maximum memory capacity of 4TB. On the front of the system, there are 8x 2.5-inch Gen5 NVMe/SATA/SAS hot-swappable drive bays.
On the system board, there are 16x DDR5 DIMM slots supporting Registered DIMMs at speeds of up to 5600MHz depending on the installed CPU generation. The CPU sockets can be outfitted with CPUs with a thermal design point (TDP) of up to 350W. CPU options include those with up to 32x physical cores and 64x virtual threads. Up to 4x dual-slot Gen5 GPUs can populate the Gigabyte G293-S46 server using FHFL PCIe Gen5 x16 PCIe slots. 2x additional low-profile PCIe 5.0 x16 slots provide options for additional I.O controllers or HD controllers. A SAS card is required if installing SAS drives.

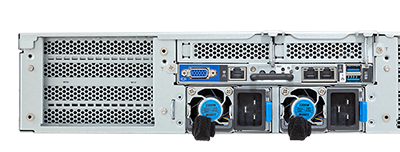

Dual 2x 10Gb/s Base-T LAN ports are available on the rear of the chassis along with a single 10/100/1000 port dedicated to system management. The management port grants access to the baseboard management controller (BMC). Remote system management is available via the BMC. Powering this system are dual 2200W 80 Plus Platinum power supplies in a redundant configuration. System temperatures are regulated by 4x 80mm fans at 16,500 rpm.
Gigabyte G293-S46 GPU Server - Specifications
Processor - 2 Sockets
5th Generation Intel Xeon Scalable Processors
4th Generation Intel Xeon Scalable Processors
Intel Xeon CPU Max Series
TDP up to 350W
Socket:
2 x LGA 4677
Socket E
Motherboard
MS43-G21
Memory
Memory Slots:
16 x DIMM slots
8-Channel memory architecture
Memory Type:
RDIMM
3DS RDIMM
Memory Speed:
5th Gen Intel Xeon: Up to 5600MHz
4th Gen Intel Xeon: Up to 4800MHz
Intel Xeon Max Series: Up to 4800MHz
DIMM Module Sizes:
RDIMM: Up to 96GB supported
LRDIMM: Up to 256GB supported
Drive Bays
8 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
* SAS card is required for SAS devices support
LAN
2 x 10Gb/s BASE-T LAN ports (Broadcom BCM57416)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM
Input / Output
Internal
1 x TPM header
1 x VROC connector
Front:
1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Reset button
Rear:
2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
Backplane Board:
Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Expansion Slots
Riser Card CRSG229:
2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs
Riser Card CRSG22A:
2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs
Riser Card CRSG01F x 2:
1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1
