Gigabyte G293-S47 GPU Server

The 2U Gigabyte G293-S47 GPU server is powered by two 4th or 5th generation Intel Xeon Scalable processors with a maximum TDP of up to 225W and 64 cores. A total of 16x DDR5 memory module slots supported by 8-channel memory architecture can be found under the hood. At full capacity it can provide up to 4TB of memory. 8x 2.5” hot-swap drive bays on the front panel, support Gen5 NVMe or SATA drive types. With support for up to 4x GPUs, this system is ideal for general artificial intelligence, LLM inference, small model training and fine-tuning to 3D graphics, rendering, and video applications.
Configure

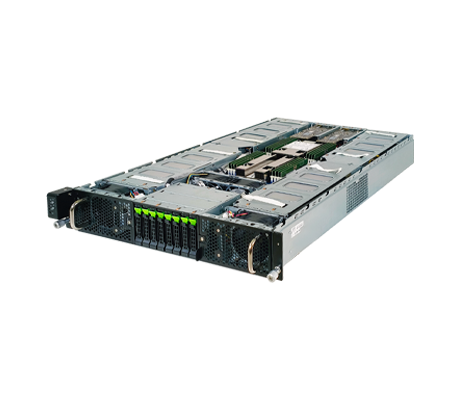

Gigabyte G293-S47 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G293-S47 GPU Server - System Overview

Additional Information

Gigabyte G293-S47 GPU Server front detail

Up to 96GB standard RDIMM memory modules or up to 256GB 3DS RDIMMs modules are supported. Speeds differ depending on the CPU generation, but can reach up to 5600 MT/s. OVX systems are purpose-built for creating and managing NVIDIA Omniverse enterprise applications. Supermicro’s NVIDIA OVX system, offers 3x riser cards to accommodate 4x NVIDIA L40S GPUs. The L40S is a universal GPU for the data center, delivering end-to-end acceleration for the next generation of AI-enabled applications.

Gigabyte G293-S47 GPU cages

The NVIDIA-certified Gigabyte G293-S47 server supports a single NVIDIA Bluefield-3 DPU in a Gen5 x16 slot for traditional enterprises, modern cloud workloads, and high-performance computing. On the rear panel, administrators have access to dual NVIDIA ConnectX-7 network interface controllers (NICs). Dual 3000W redundant PSUs with an 80 PLUS Titanium rating provide the power. To manage the G293-S47, the Aspeed AST2600 management controller provides remote management of the system using the Gigabyte Management Console featuring a browser-based web interface.

Gigabyte G293-S47 GPU Server - Specifications

Processor - 2 Sockets

  • 5th Generation Intel Xeon Scalable Processors
  • 4th Generation Intel Xeon Scalable Processors
  • Intel Xeon Gold 6448Y is suggested by NVIDIA OVX Specifications
  • Dual processors, TDP up to 350W

    • Socket:

  • 2 x LGA 4677
  • Socket E

Motherboard

  • MS43-G21

Memory

    Memory Slots:

  • 16 x DIMM slots
  • 8-Channel memory architecture

    • Memory Type:

  • RDIMM
  • 3DS RDIMM

    • Memory Speed:

  • 5th Gen Intel Xeon: Up to 5600MHz
  • 4th Gen Intel Xeon: Up to 4800MHz

    • DIMM Module Sizes:

  • RDIMM: Up to 96GB supported
  • LRDIMM: Up to 256GB supported

    • NVIDIA OVX Specifications: 384GB DDR5 ECC (1 DIMM per slot)

Drive Bays

  • 8 x 2.5" Gen5 NVMe/SATA hot-swappable bays

  • NVIDIA OVX Specifications: 1 x 1TB NVMe Host Boot Drive
  • NVIDIA OVX Specifications: 2 x 4TB NVMe Host Storage

LAN

  • 2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp

Input / Output

    Internal

  • 1 x TPM header
  • 1 x VROC connector

    • Front:

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 2 x LAN activity LEDs
  • 1 x Storage activity LED
  • 1 x System status LED
  • 1 x Reset button

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • 1 x System status LED

    • Backplane Board:

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    Riser Card CRCG320 x 2:

  • 2 x PCIe x16 (Gen5 x16) FHFL slots, from DS320PR810, for GPUs

    • Riser Card CRSG22A x 2:

  • 2 x PCIe x16 (Gen5 x16) FHFL slots, from DS320PR810, for GPUs
  • 1 x PCIe x16 (Gen5 x16) FHFL slot, from DS320PR810

  • NVIDIA OVX Specifications: 4 x NVIDIA L40S
  • NVIDIA OVX Specifications: 1 x BlueField-3, B3220 (2x200Gb)

    • Riser Card CRSG01F x 2:

  • 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
  • 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1

  • NVIDIA OVX Specifications: 2 x ConnectX-7 (2x200Gb)

Chassis

    Enclosure

    Height: 87.5mm

    Width: 448mm

    Depth: 800mm

Power Supply

  • Dual 3000W 80 PLUS Titanium redundant power supply

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
