Gigabyte G293-Z21 GPU Server

The Gigabyte G293-Z21 GPU server is a 2U rack server designed for AI, AI training, AI inference applications, as well as high-performance computing. It is powered by a single AMD EPYC 9004 or 9005 Series processor which supports 12x DDR5 DIMM slots for up to 3TB of memory. On the front of the system there are 4x 2.5-inch Gen5 NVMe/SATA/SAS hot swappable drive bays and 4x 2.5-inch SATA/SAS drive bays. Up to 4x dual slot Gen5 GPU cards can be installed on this server.
Configure

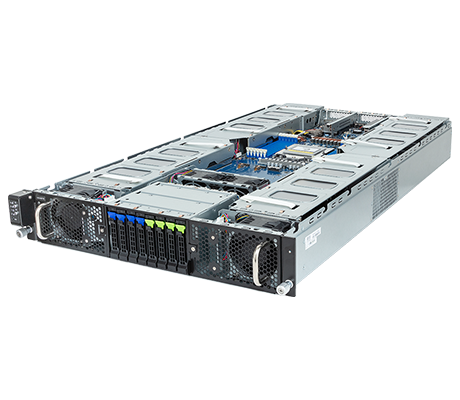

Gigabyte G293-Z21 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G293-Z21 GPU Server - System Overview

Additional Information

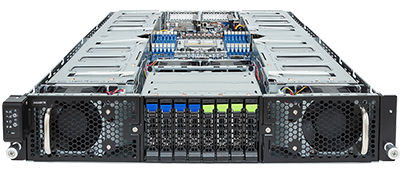

Gigabyte G293-Z21 front detail

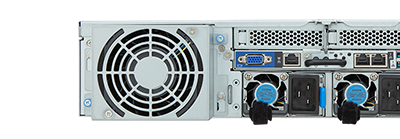

Ideal for intensive Artificial Intelligence applications, the Gigabyte G293-Z21 server can support a 9004 or 9005 Series AMD EPYC processor with up to 192 physical cores and 384 threads. Dual PCIe 5.0 M.2 slots are available on the system board, ideal for OS installation or fast access storage needs. The rear of the system houses 2x 10GbE Base-T LAN ports and a single 10/100/10000 Management LAN port. 4x full-height, full-length PCIe Gen5 x16 slots capable of supporting 4x dual slot 350W GPUs. Add-on cards can be installed on 2x low-profile PCIe Gen5 x16 slots on the rear of the chassis. This system is powered by 2x 3000W 80 Plus Titanium power supplies in a redundant configuration.

Gigabyte G293-Z21 detail top

The system can be managed using Gigabyte’s Management Console for one server or a small cluster of servers. To manage more systems, Gigabyte offers Gigabyte Server Management for multiple servers or large clusters of servers.

*A discrete SAS controller is required for SAS drive support.

Gigabyte G293-Z21 GPU Server - Specifications

Processor - 1 Socket

  • AMD EPYC 9005 Series processors
  • AMD EPYC 9004 Series processors
  • Up to 192 cores, 384 threads
  • cTDP up to 300W

    • Socket:

  • 1 x LGA 6096 / Socket SP5

Motherboard

  • MZ23-G20

Memory

    Memory Slots

  • 12 x DDR5 DIMM slots
  • 12-Channel memory architecture

    • Memory Type

  • RDIMM
  • 3DS RDIMM

    • Memory Speed

  • Up to 4800MHz (1DPC)

    • DIMM Module Sizes

  • RDIMM: Up to 96GB
  • 3DS RDIMM: Up to 256GB

Drive Bays

  • 4 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays
    • *Note: SAS card is required for SAS devices support

LAN

    Rear Side:

  • 2 x 10Gb/s BASE-T LAN ports (1 x Broadcom BCM57416)
  • Support NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal:

  • 2 x M.2 slots
  • 1 x TPM header

    • Front:

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 2 x LAN activity LEDs
  • 1 x HDD activity LED
  • 1 x System status LED
  • 1 x Reset button

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • 1 x System status LED

    • Backplane:

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

    • TPM:

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    Riser Card CRSG821 x 2:

  • 2 x PCIe x16 (Gen5 x16) or 4 x PCIe x16 (Gen5 x8) FHFL slots, from PS7101, for GPUs

    • Riser Card CRSG822 x 2:

  • 2 x PCIe x16 (Gen5 x16) or 4 x PCIe x16 (Gen5 x8) FHFL slots, from PS7101, for GPUs

    • Riser Card CRSG01F x 2:

  • 2 x PCIe x16 (Gen5 x16) low-profile slots, from CPU

    • 2 x M.2 slots:

  • M-key
  • PCIe Gen5 x4
  • Supports NGFF-2280/22110 cards

Chassis

    Height: 87.5mm

    Width: 448mm

    Depth: 800mm

Power Supply

  • 1+1 3000W (240V) 80 PLUS Titanium redundant power supplies

System Cooling

  • 8 x 80x80x38mm (18,300rpm)

System Management

    Aspeed AST2600 management controller

    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings

Gigabyte G293-Z21 GPU Server - Documentation

Gigabyte G293-Z21 GPU Server User Manual Gigabyte Server Management Console User's Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte G293-Z21 Qualified Vendor's List
