Gigabyte G293-Z23 GPU Server

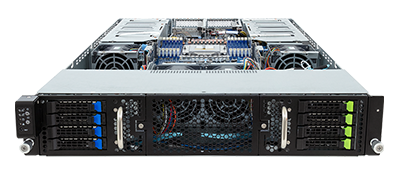

Outfitted with a single AMD EPYC 9004 or 9005 Series processor, the Gigabyte G293-Z23 GPU Server is ideal for AI training, AI Inference, and high-performance computing. With 12x DDR5 DIMM slots available on the system board, the maximum memory capacity is 3TB. On the front of the server chassis, there are 4x 2.5-inch Gen5 NVMe/SATA/SAS hot-swappable drive bays and 4x 2.5-inch SATA/SAS hot-swappable drive bays. Up to 4x dual slot Gen5 GPUs are supported on this system.
Configure

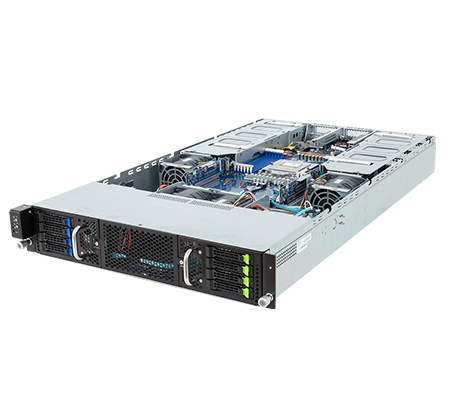

Gigabyte G293-Z23 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G293-Z23 GPU Server - System Overview

Additional Information

Gigabyte G293-Z23 front detail

CPU options on the Gigabyte G293-Z23 server are limited to those with a thermal design point of 300W, and under limited conditions, up to 400W. Options include CPUs with up to 192 physical cores and 384 virtual threads. For fast access storage needs or to support the operating system, the CPU is connected to dual M.2 drive slots. Dual 10Gb/s Base-T LAN ports can be found on the rear of the chassis, one of which being a Broadcom BCM57416 port. In addition, there is a single 10/100/1000 management LAN port. With 4x FHFL slots supporting up to 4x double-wide GPUs there are two additional low-profile PCIe x16 slots for expansion options. All PCIe slots are Gen 5.0.

Gigabyte G293-Z23 detail top

Powering this system are dual 2200W 80 Plus Titanium power supplies, in a redundant configuration. To regulate system temperatures, there are 4x 80mm fans. The Gigabyte Management Console comes pre-installed on the G293-Z23 server. It grants access to a web interface and is easy to integrate with 3rd party applications. For managing more than one server, the Gigabyte Server Manager or GSM offers more robust features and leverages the Gigabyte Management Console through the GSM Agent. Additional software applications allow users to use VMware vCenter for real=time monitoring. There is also a mobile app compatible with both Android and iOS operating systems.

Available Configurations

Explore available configurations for the Gigabyte G293-Z23 GPU Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte G293-Z23 GPU Server - Specifications

Processor - 1 Socket

  • AMD EPYC 9005 Series processors
  • AMD EPYC 9004 Series processors
  • Up to 192 cores, 384 threads per processor
  • cTDP up to 300W at ambient 35°C
* cTDP supported up to 400W under limited thermal conditions.

Socket:

  • 1 x LGA 6096
  • Socket SP5

Motherboard

  • MZ23-G20

Memory

    Memory Slots:

  • 12 x DIMM slots
  • 12-Channel memory architecture

    • Memory Type:

  • RDIMM
  • 3DS RDIMM

    • Memory Speed:

  • Up to 4800 MHz

    • DIMM Module Sizes:

  • RDIMM: Up to 96GB supported
  • LRDIMM: Up to 256GB supported

Drive Bays

  • 4 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays

LAN

  • 2 x 10Gb/s BASE-T LAN ports (1 x Broadcom BCM57416)
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 2 x M.2 slots
  • 1 x TPM header

    • Front:

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 2 x LAN activity LEDs
  • 1 x HDD activity LED
  • 1 x System status LED
  • 1 x Reset button

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • 1 x System status LED

    • Backplane Board:

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    Riser Card CRCG027:

  • 2 x PCIe x16 (Gen5 x16) FHFL slots, for GPUs

    • Riser Card CRCG028:

  • 2 x PCIe x16 (Gen5 x16) FHFL slots, for GPUs

    • Riser Card CRSG01F x 2:

  • 2 x PCIe x16 (Gen5 x16) low-profile slots

    • M.2:

  • 2 x M.2
  • PCIe Gen5 x4
  • Supports 2280/22110 cards

Chassis

    Enclosure

    Height: 87.5mm

    Width: 448mm

    Depth: 800mm

Power Supply

  • Dual 2200W (240V) 80 PLUS Titanium redundant power supply

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
