Gigabyte G293-Z40 GPU Server

Powered by dual 9004 Series AMD EPYC processors the Gigabyte G293-Z40 GPU server is designed for high-performance computing applications such as AI inferencing and AI training. It can hold up to 8x dual-slot Gen4 GPU cards. There are 24x DDR5 DIMM slots on the system board capable of supporting up to 6TB of memory. 4x 2.5-inch hot-swappable Gen5 NVMe/SATA/SAS drive bays and 4x 2.5-inch hot-swappable SATA/SAS drive bays provide storage options to suite your business needs.
Configure

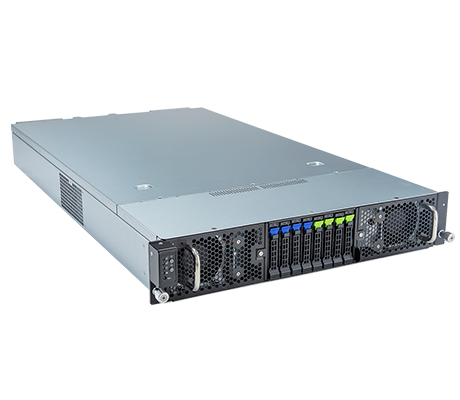

Gigabyte G293-Z40 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G293-Z40 GPU Server - System Overview

Additional Information

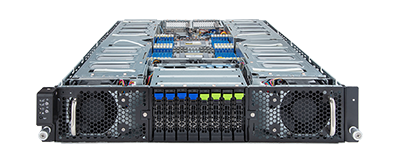

Gigabyte G293-Z40 front detail

Dual AMD EPYC 9004 Series processor with up to 32x physical cores and 64x virtual threads can be installed in the Gigabyte G293-Z40 is supports., there are 2x 10Gb/s Base-T LAN ports on the rear of the system provide basic network communications and are paired with a single dedicated management LAN port. There are 8x full-height, full-length PCIe 4.0 x16 slots for GPUs, plus 2x low-profile 5.0 x16 slots for add-on cards. This system is powered by 2x 3000W 80 Plus Titanium power supplies in a redundant configuration.

Gigabyte G293-Z40 detail top

Using the integrated ASPEED AST2600 baseboard management controller (BMC) Administrators can access the Gigabyte G293-Z40 Server remotely. Gigabyte provides the Gigabyte Management Console for a single server or a small cluster of servers, which is preloaded on the system. The Gigabyte Server Manager (GSM) can be used to manage multiple servers or large clusters of servers by accessing the Gigabyte Management Console in each chassis through the GSM Agent.

* A SAS drive support requires a discrete SAS controller.

Available Configurations

Explore available configurations for the Gigabyte G293-Z40 GPU Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte G293-Z40 GPU Server - Specifications

Processor - 2 Sockets

  • AMD EPYC 9004 series processors
  • Up to 32-core, 64 threads processor
  • cTDP up to 240W
  • TDP up to 210W

    • Socket:

  • 2 x LGA 6096 / Socket SP5

Motherboard

  • MZ43-G20

Memory

    Memory Slots

  • 24 x DIMM slots
  • 12-Channel memory architecture

    • Memory Type

  • RDIMM
  • 3DS RDIMM

    • Memory Speed

  • Up to 4800MHz

    • DIMM Module Sizes

  • RDIMM: Up to 96GB supported
  • 3DS RDIMM: Up to 256GB

Drive Bays

  • 4 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays
    • *Note: SAS card is required for SAS drive support

LAN

    Rear Side:

  • 2 x 10Gb/s BASE-T LAN ports (1 x Broadcom BCM57416)
  • Support NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920 x 1200@60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal:

  • 1 x TPM header

    • Front:

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 2 x LAN activity LEDs
  • 1 x HDD activity LED
  • 1 x System status LED
  • 1 x Reset button

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • 1 x System status LED

    • Backplane:

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

    • TPM:

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    Riser Card CRSG624 x 2:

  • 4 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs

    • Riser Card CRSG625 x 2:

  • 4 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs

    • Riser Card CRSG01F x 2:

  • 2 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_0

Chassis

    Height: 87.5mm

    Width: 448mm

    Depth: 800mm

Power Supply

  • 1+1 3000W (240V) 80 PLUS Titanium redundant power supplies

System Cooling

  • 8 x 80x80x38mm (18,300rpm)

System Management

    Aspeed AST2600 management controller

    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
