Gigabyte G293-Z41 GPU Server

The Gigabyte G293-Z41 GPU server delivers flexible performance options for AI, high-performance computing, and more. Compatible with the AMD EPYC 9004 series processor family, the server supports dual sockets with 5nm technology CPUs with up to 96 cores per processor. The 2U chassis is outfitted with 24x DIMM slots for up to 6TB of memory. Depending on how it’s configured, it can be outfitted with 4x double-slot GPU cards and 8x 2.5-inch Gen4 NVMe, SATA, or SAS drive bays on the front panel.
Configure

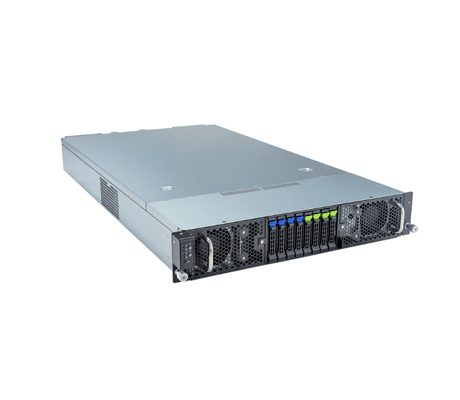

Gigabyte G293-Z41 GPU Server side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G293-Z41 GPU Server - System Overview

Gigabyte G293-Z41 GPU server side view

Expansion

Gigabyte G293-Z41 GPUs

Available Configurations

Explore available configurations for the Gigabyte G293-Z41 GPU Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte G293-Z41 GPU Server - Specifications

Processor - 2 Sockets

  • AMD EPYC 9004 series processor family
  • Dual processors, 5nm technology
  • Up to 96-core, 192 threads per processor
  • CPU TDP up to 240W
  • Motherboard: MZ43-G20
  • Socket: 2 x LGA 6096
  • System on Chip

Memory

    Memory Slots

  • 24 x DDR5 DIMM slots
  • 12-Channel memory architecture

    • Memory Type

  • RDIMM
  • 3DS RDIMM

    • Memory Speed

  • Up to 4800 MHz

    • DIMM Module Sizes

  • RDIMM: Up to 128GB
  • 3DS RDIMM: Up to 256GB

Drive Bays

    8 x 2.5" hot-swappable HDD/SSD bays
  • 4 x green trays compatible with Gen5 NVMe/SATA/SAS devices
  • 4 x blue trays compatible with SATA/SAS devices

    • *Note: SAS card is required for SAS drive support

LAN

  • 2 x 10Gb/s BASE-T LAN ports (Intel X710-AT2)
  • Supported NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

    • Audio

  • N/A

Input / Output

    Internal

  • 1 x TPM header

    • Front

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x Status status LED
  • 1 x Reset button

    • Rear

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • 1 x System status LED

    • Backplane I/O

  • Backplane P/N: 9CBPG086NR-00
  • PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

  • 4 x PCIe x16 or 8 x PCIe x8 slots (Gen5 x16 or x8 bus) for GPUs
  • 2 x PCIe x16 (Gen5 x16 bus) Half-length low-profile slots

    • *Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)

Chassis

    Enclosure

    Height: 87.5mm

    Width: 448mm

    Depth: 800mm

Power Supply

  • 2 x 3000W (240V) 80 PLUS Titanium redundant power supply

System Cooling

  • 8 x 80x80x38mm (18,300rpm)

System Management

    Aspeed AST2600 management controller

    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
