Gigabyte G293-Z42 GPU Server

Up to 8x dual-slot Gen5 GPUs can be installed on the dual-socket Gigabyte G293-Z42 GPU server. Ideal for AI training, inferencing and high-performance computing, the system board houses dual AMD EPYC 9004 Series processors and 24x DDR5 DIMM slots. The front of the system has 8x 2.5-inch SATA/SAS drive bays, with 4x of those bays capable of supporting Gen5 NVMe drives.
Configure

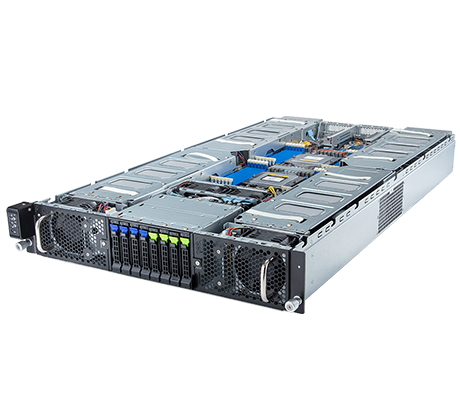

Gigabyte G293-Z42 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G293-Z42 GPU Server - System Overview

Additional Information

Gigabyte G293-Z42 front detail

Designed for high-performance computing applications such as AI inferencing and training, the Gigabyte G263-Z42 can deliver up to 6TB of memory using 256GB 3DS RDIMMs. The rear of this server supports 2x 10Gb/s Base-T LAN ports as well as a single dedicated management port. 8x full-height, full-length PCIe 5.0 x16 slots can be found on the system board, compatible with Gen5 dual-slot GPUs. Powering the system are dual 3000W 80 PLUS Titanium redundant PSUs.

Gigabyte G293-Z42 detail top

Gigabyte provides options for management of the Gigabyte G293-Z42 Server via the Gigabyte Management Console or the Gigabyte Server Manager (GSM), GSM utilizes the integrated Gigabyte Management Console through the Gigabyte Agent to access server information remotely and at chassis through the ASPEED AST2600 baseboard management controller.

* A SAS controller is required for support of SAS drive types.

Available Configurations

Explore available configurations for the Gigabyte G293-Z42 GPU Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte G293-Z42 GPU Server - Specifications

Processor - 2 Sockets

  • AMD EPYC 9004 series processors
  • Up to 32-core, 64 threads processor
  • cTDP up to 240W
  • TDP up to 210W

    • Socket:

  • 2 x LGA 6096 / Socket SP5

Motherboard

  • MZ43-G20

Memory

    Memory Slots

  • 24 x DDR5 DIMM slots
  • 12-Channel memory architecture

    • Memory Type

  • RDIMM
  • 3DS RDIMM

    • Memory Speed

  • Up to 4800MHz

    • DIMM Module Sizes

  • RDIMM: Up to 96GB supported
  • 3DS RDIMM: Up to 256GB

Drive Bays

  • 4 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays
    • *Note: SAS card is required for SAS drive support

LAN

    Rear Side:

  • 2 x 10Gb/s BASE-T LAN ports (1 x Broadcom BCM57416)
  • Support NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal:

  • 1 x TPM header

    • Front:

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 2 x LAN activity LEDs
  • 1 x HDD activity LED
  • 1 x System status LED
  • 1 x Reset button

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • 1 x System status LED

    • Backplane:

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

    • TPM:

  • 1 x TPM header with SPI interface
  • Optional: TPM2.0 kit: CTM010

Expansion Slots

    Riser Card CRSG622 x 2:

  • 4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89048, for GPUs

    • Riser Card CRSG623 x 2:

  • 4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89048, for GPUs

    • Riser Card CRSG01F x 2:

  • 2 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_0

Chassis

    Height: 87.5mm

    Width: 448mm

    Depth: 800mm

Power Supply

  • 1+1 3000W (240V) 80 PLUS Titanium redundant power supplies

System Cooling

  • 8 x 80x80x38mm (18,300rpm)

System Management

    Aspeed AST2600 management controller

    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings

Gigabyte G293-Z42 GPU Server - Documentation

Gigabyte G293-Z42 GPU Server Data Sheet Gigabyte Server Management Console User's Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide
