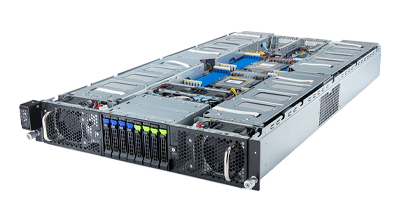

Up to 16x single-slot PCIe Gen5 x16 GPUs can be deployed on the Gigabyte G293-Z43 GPU server. This system is powered by dual AMD EPYC 9004 series processors with up to 32 cores, 64 threads and a maximum TDP of up to 210W per CPU. A cTDP of up to 240W is supported at ambient 30°C. While standard RDIMM modules support up to 2TB of RAM, 6TB of memory can be deployed when all DIMM slots are filled with 256GB 3DS RDIMM modules. The front panel features 8x 2.5" hot-swappable drive bays.
The 8x front 2.5-inch drive bays support 4x Gen5 NVMe/SATA/SAS bays and 4x SATA/SAS bays, which can handle a considerable amount of data. If deploying SAS drives, a discrete SAS card is required. Each AMD processor supports 12x DDR5 DIMM slots, with 12-channel memory architecture, for a total of 24x DIMM slots on the system board. Memory will run at up to 4800MT/s depending on CPU and memory modules. In addition to the 16x PCIe x16 (Gen5 x16) FHFL slots for GPUs, this server has 2x PCIe Gen5 x16 low-profile slots that can be accessed through the rear of the chassis. Supported applications include AI, AI Training and Inference, plus High-Performance Computing (HPC).
The 2U, 2S G293-Z43 GPU server also supports dual 3000W (240V) 80 PLUS Titanium redundant power supplies that work together with Gigabyte’s Smart Crises Management and Protection (SCMP) technology. With SCMP, in the event of a faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss. This platform can be managed both locally and remotely using software such as GSM Server, GSM CLI, GSM Agent, GSM Mobile, and GSM Plugin using the dedicated GbE management port on the back of the system. Also included are dual 10GbE ports.
Gigabyte G293-Z43 GPU Server - Specifications
Processor - 2 Sockets
AMD EPYC 9004 series processors
Up to 32-core, 64 threads processor
TDP up to 210W
cTDP up to 240W supported at ambient 30°C
Socket:
2 x LGA 6096 / Socket SP5
Motherboard
MZ43-G20
Memory
Memory Slots
24 x DDR5 DIMM slots
12-Channel memory architecture
Memory Type
RDIMM
3DS RDIMM
Memory Speed
Up to 4800MHz
DIMM Module Sizes
RDIMM: Up to 96GB supported
3DS RDIMM: Up to 256GB
Drive Bays
4 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays
*Note: SAS card is required for SAS drive support
LAN
Rear Side:
2 x 10Gb/s BASE-T LAN ports (1 x Broadcom BCM57416)
Support NCSI function
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM
Input / Output
Internal:
1 x TPM header
Front:
1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Reset button

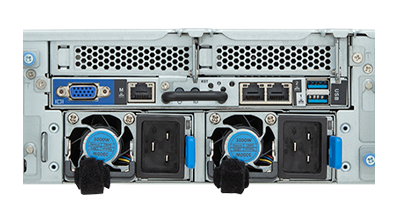

Rear:
2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
Backplane:
Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM:
1 x TPM header with SPI interface
Optional: TPM2.0 kit: CTM010
Expansion Slots
Riser Card CRSG742 x 2:
8 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89088, for GPUs
Riser Card CRSG743 x 2:
8 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89088, for GPUs
Riser Card CRSG01F x 2:
2 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_0
Chassis
Height: 87.5mm
Width: 448mm
Depth: 800mm
Power Supply
Dual 3000W 80 PLUS Titanium redundant power supply
