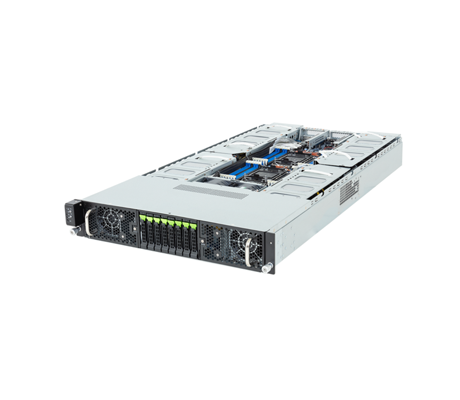

Gigabyte G294-S41 GPU Server

The 2U Gigabyte G294-S41 GPU server features 24x DIMM slots, with 6x slots located on each side of the CPUs. These slots support RDIMMs at 6400 MT/s and MCR DIMMs at 8000 MT/s. Mulitplexor Combined Ranks DIMMs (MCR DIMMs) are only compatible with Intel Xeon 6 processors that have P-cores in a 1DPC configuration. The server is equipped with dual Intel Xeon 6 series processors, supporting both the 6700 series with E-cores and P-cores, as well as the 6500 series with P-cores. The 6700E-Series processors only support up to 16x DIMM slots.

Overview

Gigabyte G294-S41 GPU Server - System Overview

Gigabyte G294-S41 GPU server drive cages

The Gigabyte G294-S41 server is equipped with 8x hot-swappable front drive bays that accommodate 2.5" drives in Gen5 NVMe, SAS4, or SATA configurations. A SAS card is required to support SAS drives. For expansion, the system includes 3x riser cards, in which two provide 2x FHFL Gen5 x16 or 4x FHFL Gen5 x8 slots for GPUs for a total of 4 or 8 GPUs. The remaining riser delivers 2x low-profile Gen5 x16 slots. The rear of the server holds a dual 3000W redundant Titanium Level (96%) power supply.

Gigabyte provides two free tools to help manage servers: the pre-installed Gigabyte Management Console (GMC) and Gigabyte Server Management (GSM) available for download. GMC can manage a few servers or small setups, while GSM is better for handling larger server clusters. Both tools let you monitor and control servers from anywhere, using a web browser and an easy-to-use interface.

Specifications

Gigabyte G294-S41 GPU Server - Specifications

Processor - Dual Sockets

Intel Xeon 6 Processors
Intel Xeon 6700E Series Processors
Intel Xeon 6700P Series Processors
Intel Xeon 6500P Series Processors
Dual CPUs, TDP up to 225W
2 x LGA 4710 (Socket E2)
System on Chip
Motherboard: MS44-G20

Memory

24x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
MRDIMM supported
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s

Drive Bays

8 x 2.5" Gen5 NVMe/SATA/SAS4* hot-swappable bays

Power Supplies

Dual 3000W 80 PLUS Titanium redundant power supplies

Fans

8 x 80x80x80mm (16,500rpm)

LAN

2 x 10Gb/s LAN (1 x Intel® X710-AT2)
Supports NCSI function
1 x 10/100/1000 Mbps Management LAN

I/O

Front I/O

1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LED (1x LED disabled)
1 x Storage activity LED
1 x System status LED

Rear I/O

2 x USB 3.2 Gen1 ports (Type A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED

Backplane I/O

Speed and bandwidth:

PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Expansion Slots

Riser Card CRCG221 x 2:

2 x FHFL x16 (Gen5 x16) or 4 x FHFL x16 (Gen5 x8), for GPUs

Riser Card CRCG222 x 2:

2 x FHFL x16 (Gen5 x16) or 4 x FHFL x16 (Gen5 x8), for GPUs

Riser Card CRSG01F x 2:

1 x LP x16 (Gen5 x16), from CPU_0
1 x LP x16 (Gen5 x16), from CPU_1

Dimensions
