Gigabyte G294-S42 GPU Server

At 2U, the Gigabyte G294-S42 GPU Server is built for artificial intelligence, high-performance computing, and visual computing. Featuring 8x 2.5" Gen5 NVMe, SATA, or SAS4 hot-swap storage bays, this system accommodates dual Intel Xeon 6 series processors with a maximum thermal design power (TDP) of 225W. The server is compatible with a variety of Intel Xeon 6-series processors, including the 6700 series with both E-cores and P-cores, as well as the 6500 series with P-cores. This platform offers support for up to 8x dual slot Gen5 GPUs.
Configure

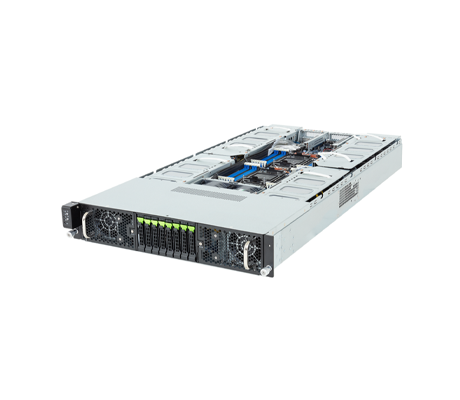

Gigabyte G294-S42 GPU Server front view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G294-S42 GPU Server - System Overview

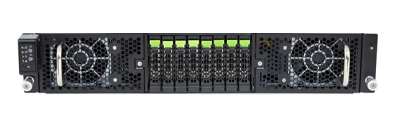

Gigabyte G294-S42 GPU server drive cages

The Gigabyte G294-S42 supports up to 24x DDR5 RDIMMs running at speeds of up to 6400 MT/s, or Multiplexor Combined Ranks (MCR) DIMMs at up to 8000 MT/s. MCR DIMMs are only compatible with Intel Xeon 6 processors featuring P-cores and in a 1DPC configuration. The 6700E-Series processors only support up to 16x DIMM slots. For expansion, the server offers 3x risers. Two provide 4x FHFL x16 (Gen5 x16) for GPUs, and the remaining riser supports 2x low-profile Gen5 x16 slots. The rear I/O features a dual 3000W redundant Titanium Level (96%) power supply.

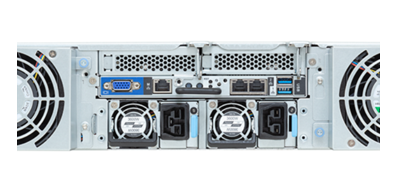

Gigabyte G294-S42 rear ports

Using a standard browser, administrators can access the pre-installed Gigabyte Management Console (GMC) or Gigabyte Server Management (GSM) to monitor the platform locally or remotely. These tools feature an HTML 5 user interface that provides detailed information on hard drives, inventories, and power consumption, and can also be configured to send alerts.

Available Configurations

Explore available configurations for the Gigabyte G294-S42 GPU Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte G294-S42 GPU Server - Specifications

Processor - Dual Sockets

  • Intel Xeon 6 Processors
  • Intel Xeon 6700E Series Processors
  • Intel Xeon 6700P Series Processors
  • Intel Xeon 6500P Series Processors
  • Dual CPUs, TDP up to 225W
  • 2 x LGA 4710 (Socket E2)
  • System on Chip
  • Motherboard: MS44-G20

Memory

  • 24x DIMM slots
  • DDR5 memory supported only
  • 8-Channel memory architecture
  • MRDIMM supported
  • RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
  • MRDIMM: Up to 8000 MT/s

    • Intel Xeon 6700E Series CPUs only support up to 16x DIMMs
    MRDIMMs are only supported with Intel Xeon 6 CPUs with P-cores and in a 1DPC configuration

Drive Bays

    Front Hot-Swap:

  • 8 x 2.5" Gen5 NVMe/SATA/SAS4* hot-swappable bays

    • *SAS card is required to support SAS drives

Power Supplies

  • Dual 3000W 80 PLUS Titanium redundant power supplies

Fans

  • 4 x 80x80x38mm (18,300rpm)
  • 4 x 80x80x80mm (18,700rpm)

LAN

    Rear:
  • 2 x 10Gb/s LAN (1 x Intel® X710-AT2)
  • Supports NCSI function
  • 1 x 10/100/1000 Mbps Management LAN

I/O

    Front I/O

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 2 x LAN activity LEDs
  • 1 x Storage activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1 ports (Type A)
  • 1 x VGA port
  • 2 x RJ45 ports
  • 1 x MLAN port
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 1 x System status LED

    • Backplane I/O

    Speed and bandwidth:

  • PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Expansion Slots

    Riser Card CRCG620 x 2:

  • 4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

    • Riser Card CRCG621 x 2:

  • 4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

    • Riser Card CRSG01F x 2:

  • 1 x LP x16 (Gen5 x16), from CPU_0
  • 1 x LP x16 (Gen5 x16), from CPU_1

Dimensions

    2U
    Height: 87.5mm (3.44")
    Width: 448mm (17.64")
    Depth: 850mm (33.46")

Gigabyte G294-S42 GPU Server - Documentation

Gigabyte G294-S42 GPU Server Data Sheet Gigabyte Server Management Console User Guide Gigabyte GSM Server Installation & Configuration Guide Gigabyte GSM Agent Installation & Features Guide Gigabyte Easy BIOS Refresh User Guide Gigabyte Redfish API Specification
