Gigabyte G294-S43 GPU Server

Supporting up to 16x single slot Gen5 GPUs, the 2U Gigabyte G294-S43 GPU server holds 2x Intel Xeon 6 processors from the 6700 series with E-Cores, 6700 series with P-Cores, or 6500 series with P-Cores. CPUs with a maximum TDP of 225W are supported, making this platform suitable for AI, AI inference, visual computing, and more. Highlighted by lime green tabs, the system is equipped with 8x hot-swappable 2.5" drive bays compatible with Gen5 NVMe, SATA, or SAS4 drive types. This system is powered by a dual 3000W 80 PLUS Titanium redundant power supply.
Configure

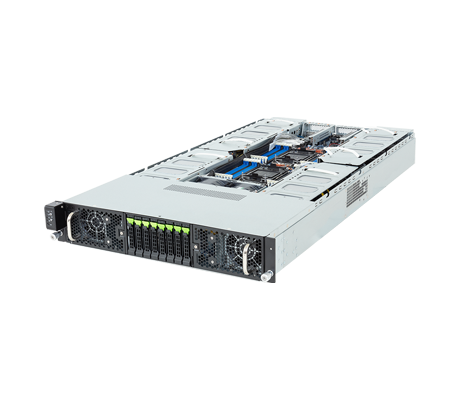

Gigabyte G294-S43 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G294-S43 GPU Server - System Overview

Additional Information

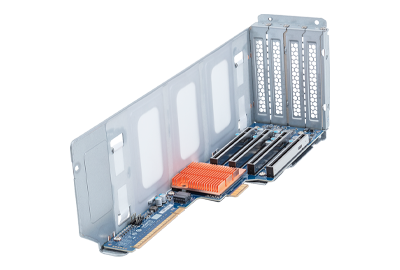

Gigabyte G294-S43 GPU Server GPU cage

The Gigabyte G294-S43 delivers 24x DDR5 DIMM slots with an 8-channel memory architecture compatible with standard RDIMMs and MCRDIMMs. RDIMMs can achieve speeds of up to 6400 MT/s when configured with a single DIMM per channel (1x DPC) and up to 5200 MT/s with dual DIMMs per channel (2x DPC). On the other hand, MCRDIMMs, which are only supported with Intel P-Core CPUs, can reach speeds of up to 8000 MT/s in a 1x DPC configuration. It's important to note that the Intel Xeon 6 processors from the 6700 series with E-Cores are limited to a maximum of 16x DIMM slots.

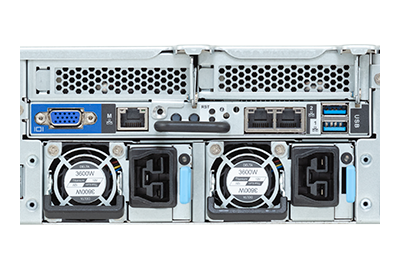

Gigabyte G294-S43 rear I/O

In addition to the 16x FHFL PCIe 5.0 x16 slots for GPUs spread across 4x risers, 2x more low-profile Gen5 x16 slots are available for HD controllers or network interface controllers. If only 1x CPU is installed, some PCIe or memory features may not be function. Each system comes with Gigabyte’s own software, the Gigabyte Management Console pre-installed. Gigabyte Management Console provides management for a single server or small cluster for real-time health monitoring, among other features. For more comprehensive management of clusters of servers, the Gigabyte Server Management or GSM is available for download. This software allows you to manage the system remotely or directly from the chassis using various tools like GSM Server, GSM CLI, GSM Agent, GSM Mobile, and GSM Plugin for use with VMware vCenter.

Available Configurations

Explore available configurations for the Gigabyte G294-S43 GPU Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte G294-S43 GPU Server - Specifications

Processor - 2 Sockets

  • Intel Xeon 6 Processors
  • Intel Xeon 6700 Series Processors with E-Cores
  • Intel Xeon 6700 Series Processors with P-Cores
  • Intel Xeon 6500 Series Processors with E-Cores
  • Dual processors, TDP up to 225W

    • *If only 1x CPU is installed, some PCIe or memory functions might be unavailable.

    Socket:

  • 2 x LGA 4710
  • Socket E2

Motherboard

  • MS44-G20

Memory

    Memory Slots:

  • 24 x DIMM slots
  • 8-Channel memory architecture

    • Memory Type:

  • RDIMM
  • MCR DIMM

    • Memory Speed:

  • RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
  • MCR DIMM: Up to 8000 MT/s

    • *MCR DIMMs are only supported with Intel Xeon 6 Processors with P-Cores and in a 1DPC configuration.

Drive Bays

    Front Hot-Swap:
  • 8 x 2.5" Gen5 NVMe/SATA/SAS4
  • (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)

    • *SAS card is required to support SAS drives

LAN

    Front:
  • 2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 1x VGA port

Input / Output

    Front:

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 2 x LAN activity LEDs
  • 1 x Storage activity LED
  • 1 x System status LED

    • Rear:

  • 2 x USB 3.2 Gen1 ports (Type-A)
  • 1 x VGA port
  • 2 x RJ45 ports
  • 1 x MLAN port
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 1 x System Status LED

    • Backplane Board:

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM012

  • 1 x PRoT connector (only enabled on RoT SKU)

Expansion Slots

    Riser Card CRSG742 x 2:

  • 8 x FHFL x16 (Gen5 x16), from PEX89088, for GPUs

    • Riser Card CRSG743 x 2:

  • 8 x FHFL x16 (Gen5 x16), from PEX89088, for GPUs

    • Riser Card CRSG01F x 2:

  • 1 x LP x16 (Gen5 x16), from CPU_0
  • 1 x LP x16 (Gen5 x16), from CPU_1

    • *The system is only validated with a uniform GPU model.

Chassis

    Enclosure

    Height: 87.5mm

    Width: 448mm

    Depth: 850mm

Power Supply

  • Dual 3000W 80 PLUS Titanium redundant power supply

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings

Gigabyte G294-S43 GPU Server - Documentation

Gigabyte G294-S43 GPU Server (Rev. AAP1) Datasheet Gigabyte Easy BIOS Refresh User Guide Gigabyte Redfish API Specifications ASPEED AST2600 User Guide Gigabyte GSM Agent Installation & Configuration Guide Gigabyte GSM Agent Installation & Features Guide
