Gigabyte G294-S45 GPU Server

The 8-bay, 2U Gigabyte G294-S45 GPU server is powered by 2x Intel Xeon 6 processors from the 6700 series with E-Cores, 6700 series with P-Cores, or 6500 series with P-Cores. It also offers support for up to 8x dual slot Gen5 GPUs. CPUs with a maximum TDP of up to 225W can be installed. The system is ideal for artificial intelligence, visual computing, high-performance computing, and more. Under the hood there are 16x DDR5 DIMM slots supported by 8-channel memory architecture. It’s compatible with standard DDR5 RDIMMs and Multiplexor Combined Ranks DIMMs or MCR DIMMs.
Configure

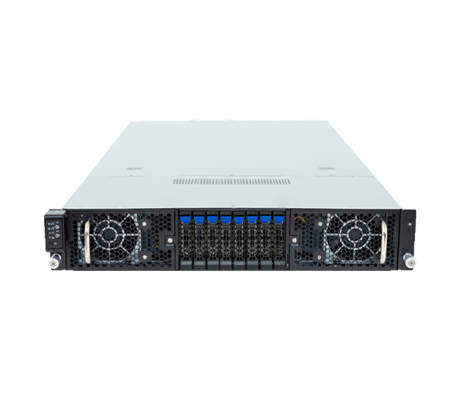

Gigabyte G294-S45 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G294-S45 GPU Server - System Overview

Additional Information

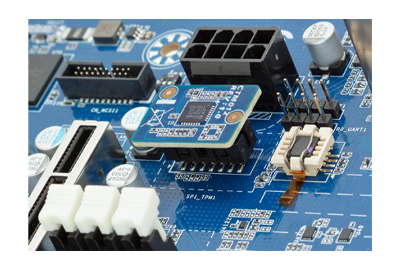

Gigabyte G294-S45 GPU Server GPU TPM 2.0 module

RDIMMs can support speeds of up to 6400 MT/s with a single DIMM per channel (1x DPC) and up to 5200 MT/s with dual DIMMs per channel (2x DPC). MCR DIMMs, are only supported with Intel P-Core CPUs in a 1x DPC configuration and can reach speeds of up to 8000 MT/s. The Gigabyte G294-S45 server supports 8x FHFL PCIe 5.0 x16 slots for up to 8x DW GPUs distributed across 4x risers, plus 2x low-profile PCIe Gen5 x16 slots. Some functions may be limited if only 1 CPU is installed. On the front of the 2U chassis there are a total of 8x 2.5-inch hot-swappable drive bays marked by blue tabs. Four of these bays support NVMe, SATA, and SAS4 configurations, while the remaining 4x are compatible with SATA and SAS4. To utilize SAS devices, a SAS card is required. NVMe drive support requires additional NVMe cables, which will occupy PCIe slots.

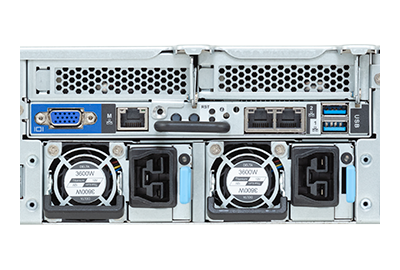

Gigabyte G294-S45 rear I/O

3+1 redundant power supply units with 3000W 80 PLUS Titanium efficiency power the system. The system comes pre-installed with the Gigabyte Management Console. Programs like Gigabyte Server Management or GSM provide more robust management features and include other software utilities like GSM Server, GSM CLI, GSM Agent, GSM Mobile, and GSM Plugin. Administrators can use the Gigabyte Server Management (GSM) software to manage the system remotely or at-chassis.

Available Configurations

Explore available configurations for the Gigabyte G294-S45 GPU Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte G294-S45 GPU Server - Specifications

Processor - 2 Sockets

  • Intel Xeon 6 Processors
  • Intel Xeon 6700 Series Processors with E-Cores
  • Intel Xeon 6700 Series Processors with P-Cores
  • Intel Xeon 6500 Series Processors with E-Cores
  • Dual processors, TDP up to 225W

    • *If only 1x CPU is installed, some PCIe or memory functions might be unavailable.

    Socket:

  • 2 x LGA 4710
  • Socket E2

Motherboard

  • MS44-G21

Memory

    Memory Slots:

  • 16 x DIMM slots
  • 8-Channel memory architecture

    • Memory Type:

  • RDIMM
  • MCR DIMM

    • Memory Speed:

  • RDIMM: Up to 6400 MT/s
  • MCR DIMM: Up to 8000 MT/s

    • *MCR DIMMs are only supported with Intel Xeon 6 Processors with P-Cores

Drive Bays

    Front Hot-Swap:
  • 4 x 2.5" Gen5 NVMe/SATA/SAS4
  • 4 x 2.5" SATA/SAS4

    • *SAS card is required to support SAS drives *NVMe support requires additional NVMe cables and occupies PCIe slots

LAN

    Front:
  • 2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 1x VGA port

Input / Output

    Front:

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 2 x LAN activity LEDs
  • 1 x Storage activity LED
  • 1 x System status LED

    • Rear:

  • 2 x USB 3.2 Gen1 ports (Type-A)
  • 1 x VGA port
  • 2 x RJ45 ports
  • 1 x MLAN port
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 1 x System Status LED

    • Backplane Board:

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM012

  • 1 x PRoT connector (only enabled on RoT SKU)

Expansion Slots

    Riser Card CRCG02C x 2:

  • 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
  • 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs

    • Riser Card CRCG02D x 2:

  • 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
  • 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs

    • Riser Card CRSG01F x 2:

  • 1 x LP x16 (Gen5 x16), from CPU_0
  • 1 x LP x16 (Gen5 x16), from CPU_1

    • *The system is only validated with a uniform GPU model.

Chassis

    Enclosure

    Height: 87.5mm

    Width: 448mm

    Depth: 850mm

Power Supply

  • Dual 3000W 80 PLUS Titanium redundant power supply

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings

Gigabyte G294-S45 GPU Server - Documentation

Gigabyte G294-S45 GPU Server (Rev. AAP1) Datasheet Gigabyte Easy BIOS Refresh User Guide Gigabyte Redfish API Specifications ASPEED AST2600 User Guide Gigabyte GSM Agent Installation & Configuration Guide Gigabyte GSM Agent Installation & Features Guide
