Additional InformationThere are 12x memory modules slots on the Gigabyte G295-D21 GPU Server motherboard for 1x DIMM Per Channel (1DPC). With 1DPC memory can run at top speeds of up to 8000MT/s using registered DIMMs (RDIMM) or up to 12800MT/s using Multiplexed Rank DIMMs (MRDIMM). MRDIMMs are only supported with select CPUs. Administrators have 2x options for drive support; either 4x 2.5-inch Gen5 NVMe, SATA or SAS-4 drives or up to 6x 2.5-inch SATA or SAS-4 drive types. There is also a separate SKU that supports up to 4x native NVMe drives with low profile PCIe slots.
Chassis Configurations

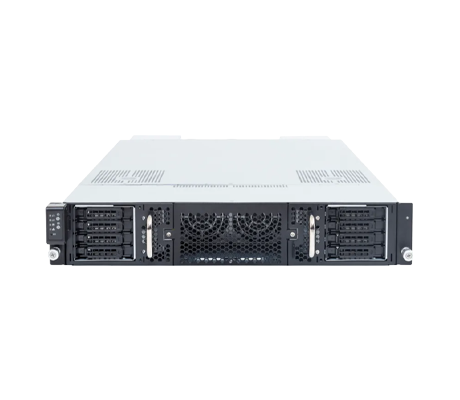

Gigabyte G295-D21-AP1 GPU Server
- Air-cooled via 6 x 80x80x80mm fans
In addition, there is an internal PCIe Gen4 x2 slot on the system board that can be used to host an NVMe M.2 drive to boot the OS. 4x full-height, full-length x16 PCIe Gen6 slots support up to 4x Gen6 double-wide GPUs. 2x more PCIe Gen6 slots, one with x16 lanes and one with x8 lanes can be used to support NICs and a storage controller, if needed. Dual 10Gb/s LAN ports provide basic networking communications along with a Management LAN port for remote management of the system. Powering the system are dual, redundant 3000W 80 PLUS Titanium power supply units (PSU).
Explore available configurations for the Gigabyte G295-D21 GPU Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- AMD EPYC 9006 SP7 Server processors
- Single processor, PPT up to 600W
- 1x LGA 7536 (Socket SP7)
- Motherboard: MD25-G20
- Chipset: Integrated into SoC
- 12-Channel DDR5 RDIMM/MRDIMM, 12 x DIMMs
- RDIMM: Up to 8000 MT/s
- MRDIMM: Up to 12800 MT/s*
*MRDIMMs are supported only on select CPU SKUs.
- 2x 10 Gb/s LAN (1 x Broadcom BCM57416), Support NCSI
- 1x Management LAN

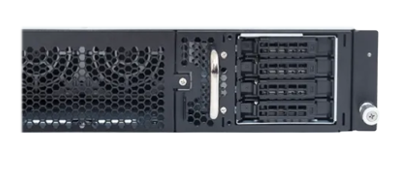

Front hot-swap:
- 2x 2.5" Gen5 NVMe
Optional front hot-swap:
- 4x 2.5" Gen5 NVMe/SATA/SAS4 or 6 x 2.5" SATA/SAS4*
Internal M.2:
- 1x M.2 (2280/22110), PCIe Gen4 x2
*Storage card required to support optional drives. Only one card supported, and total drive bandwidth limited to 16i.
- 4x FHFL x16 (Gen6 x16), for GPUs
- 1x LP x16 (Gen6 x16), for add-in cards
- 1x LP x16 (Gen6 x8), for add-in cards

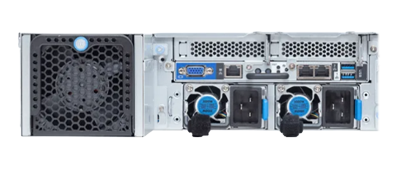

Rear:
- 2x USB 3.2 Gen1, 1x VGA, 2 x RJ45, 1x MLAN
- 2x 3000 W 80 PLUS Titanium redundant power supplies
- AC Input: 100-240 V
- 2U rackmount
- Width: 448 x Height: 87.5 x Depth: 800 mm
