Gigabyte G363-SR0 Server

At 3U, the Gigabyte G363-SR0 server supports 8x 2.5” Gen5 NVMe, SAS, or SATA hot-swappable drive bays up front. 4x NVIDIA HGX H100 SXM5 GPUs featuring NVIDIA NVLink technology can be installed and offer a 900GB/s GPU-to-GPU interconnection. Dual 5th generation Intel Xeon Scalable CPUs, including Max series CPUs, can be deployed. When all 16x DIMMs are filled with 256GB 3DS RDIMMs, the system can accommodate up to 4TB of memory.
Configure

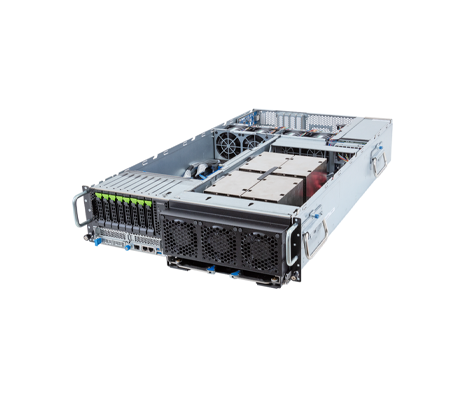

Gigabyte G363-SR0 Server side view.
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G363-SR0 Server - System Overview

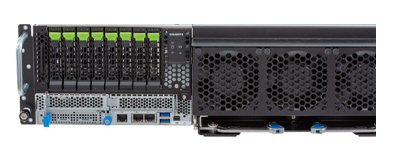

Gigabyte G363-SR0 front Outfitted with 4x GPUs, this server is ideal for AI, AI training, AI inference, and high-performance computing workloads. In addition to the drive bays on the front of the server, the G3633-SR0 server supports 1x M.2 PCIe Gen4 x4 slot for 2280 and 22110 cards. There is a PCIe Gen5 x16 low-profile slot that can be accessed through the front of the chassis, as well as an additional slot with the same specifications using a PCIe cable. Similarly, there are extra 4x PCIe Gen5 x16 slots, equipped with full-height brackets for support of remote direct memory access (RDMA). This machine also comes with 2x 1Gb/s LAN ports, 2x 10Gb/s BASE-T LAN ports, and 1x dedicated management port. To manage the system, administrators can use the web interface for the Gigabyte Management Console, the Aspeed AST2600 management controller, or the Gigabyte Server Management (GSM). 2+1 3000W (240V) 80 PLUS Titanium redundant power supplies can be found on the rear. The system can be configured with an optional CPU+GPU liquid cooling solution. Gigabyte G363-SR0 rear

Gigabyte G363-SR0 Server - Specifications

Processor - 2 Sockets

  • Dual Processor
  • Socket: 2x LGA 4677
  • 5th Gen Intel Xeon Scalable processors
  • 4th Gen Intel Xeon Scalable processors
  • Intel Xeon CPU Max Series
  • Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
  • TDP up to 350W

    • Chipset:

  • Intel C741 Chipset

Motherboard

  • MS63-HD2

Memory

    Memory Slots

  • 16x DDR5 DIMM slots
  • 8-Channel memory architecture

    • Memory Speed

  • Memory speed: Up to 4800 MHz

    • DIMM Module Sizes

  • RDIMM modules up to 96GB supported
  • 3DS RDIMM modules up to 256GB supported

Drive Bays

  • 8 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays, NVMe from PEX89144

    • *SAS card is required for SAS devices support

LAN

    Front side:

  • 2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
  • Support NCSI function (by switch setting)
  • 1 x 10/100/1000 *CMC port

    • Rear side:

  • 2 x 10Gb/s BASE-T LAN ports (1 x Broadcom® BCM57416)
  • Support NCSI function (by switch setting)
  • 1 x 10/100/1000 *CMC port

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 1 x M.2 slot
  • 1 x TPM header
  • 1 x VROC

    • Front

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45 (Intel I350)
  • 1 x MLAN
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x System status LED
  • 1 x HDD access LED

    • Rear

  • 2 x RJ45 (Broadcom BCM57416)
  • 1 x MLAN (optional)

    • Backplane

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

    • TPM

  • 1 x TPM header with LPC interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    Rev. AAX1
  • Supports NVIDIA HGX H100 with 4 x SXM5 GPUs

    • Rev. LAX1
  • Supports Liquid Cooled NVIDIA HGX H100 with 4 x SXM5 GPUs

    • Front Side

    Riser Card CRSH01R:

  • 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0

    • PCIe Cable:

  • 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1

    • Rear Side:

  • 4 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89144, support RDMA

  • 1 x OCP 3.0 slot on front side disabled, from CPU_0

  • 1 x M.2 slot: PCIe Gen4 x4, from CPU_0
  • Supports 2280/22110 cards

Chassis

    Enclosure

    Height: 130 mm

    Width: 448 mm

    Depth: 800 mm

Power Supply

  • 2+1 3000W (240V) 80 PLUS Titanium redundant power supplies

System Fans

    Rev. AAX1
  • 7 x 80x80x80mm (17,000rpm)

    • Rev. LAX1
  • 4 x 80x80x80mm (17,000rpm)

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte G363-SR0 Server - Documentation

Gigabyte G363-SR0 Server Data Sheet Gigabyte G363-SR0 Server User Manual Gigabyte G363-SR0 Qualification Vender List
