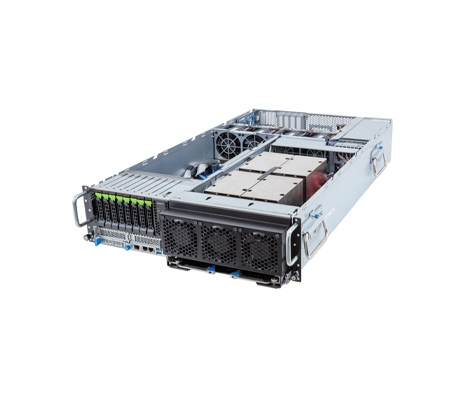

Powered by dual AMD EPYC 9004 series processors with Liquid cooling solution for (rev. LAX1), including those featuring AMD’s 3D V-Cache, the Gigabyte G363-ZR0 server supports 4x NVIDIA HGX H100 SXM5 GPUs with Liquid cooling solution for (rev. LAX1). The CPUs deliver a 5nm technology with up to 128 cores and 256 threads, and a maximum TDP of up to 400W. It can accommodate up to 6TB of memory if all 24x DIMM slots are filled with 256GB 3DS RDIMM memory modules. Standard RDIMM modules will provide up to 2TB of RAM.

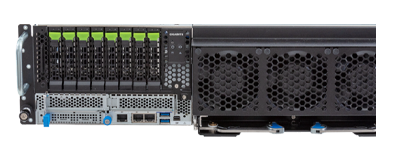

On the front of the server, there are 8x 2.5” Gen5 NVMe, SATA, or SAS hot-swappable bays, plus 1x M.2 PCIe Gen4 x4 slot on the motherboard for 2280 and 22110 cards. Just under these drive bays, there are 2x PCIe Gen5 x16 low-profile slots with an additional 4x PCIe Gen5 x16 low-profile slots on the rear of the chassis for support of remote direct memory access (RDMA). The front panel also offers 1x OCP 3.0 slot. Administrators can use the Gigabyte Management Console web interface, the Aspeed AST2600 management controller, or the Gigabyte Server Management (GSM) to control the system. The 3U G363-ZR0 server is intended for AI, AI training, AI inference, and high-performance computing. Depending on the revision, this system is able to support a CPU+GPU liquid cooling solution. 2+1 3000W 80 PLUS Titanium redundant power supplies can be found on the rear of the chassis.
Gigabyte G363-ZR0 Server (rev. AAX1):
Supports NVIDIA HGX™ H100 with 4 x SXM5 GPUs
cTDP up to 300W at ambient 35°C
System Fans: 7 x 80x80x80mm (17,000rpm)
Gigabyte G363-ZR0 Server (rev. LAX1):
Supports liquid cooled NVIDIA HGX™ H100 with 4 x SXM5 GPUs
cTDP up to 400W
System Fans: 8 x 80x80x80mm (17,000rpm)
Gigabyte G363-ZR0 Server - Specifications
Processor - 2 Sockets
Dual Processor
Socket: 2x LGA 6096
AMD EPYC 9004 Series processors/ AMD 3D V-Cache Technology
Up to 128 cores/ 256 threads per CPU
AAX1
cTDP up to 300W at ambient 35°C
cTDP supported up to 400W under limited thermal conditions
LAX1
cTDP up to 400W
Chipset:
System on Chip
Motherboard
MZ83-HD1
Memory
Memory Slots
24x DDR5 DIMM slots
12-Channel memory architecture
Memory Speed
Memory speed: Up to 4800 MHz
DIMM Module Sizes
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Drive Bays
4 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" Gen5 NVMe hot-swappable bays
(4 x NVMe from CPU_0, 4 x NVMe from CPU_1, SATA from CPU_0)
LAN
Front side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function (by switch setting)
1 x 10/100/1000 management LAN
Rear side:
2 x 10Gb/s BASE-T LAN ports (1 x Broadcom® BCM57416)
Support NCSI function (by switch setting)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM
Input / Output
Internal
1 x M.2 slot
1 x TPM header
1 x VROC
Front
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45 (Intel I350)
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD access LED
Rear
2 x RJ45 (Broadcom BCM57416)
1 x MLAN (optional)
Backplane
Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM010
Expansion Slots
Rev. AAX1
Supports NVIDIA HGX H100 with 4 x SXM5 GPUs
Rev. LAX1
Supports Liquid Cooled NVIDIA HGX H100 with 4 x SXM5 GPUs
Front Side
1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1
Rear Side:
4 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89144, support RDMA
Other:
1 x OCP 3.0 slot on front side disabled, from CPU_0
1 x M.2 slot: PCIe Gen4 x4, from CPU_0
Supports 2280/22110 cards
Chassis
Enclosure
Height: 130 mm
Width: 448 mm
Depth: 800 mm
Power Supply
2+1 3000W (240V) 80 PLUS Titanium redundant power supplies
System Fans
Rev. AAX1
7 x 80x80x80mm (17,000rpm)
Rev. LAX1
4 x 80x80x80mm (17,000rpm)
System Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
