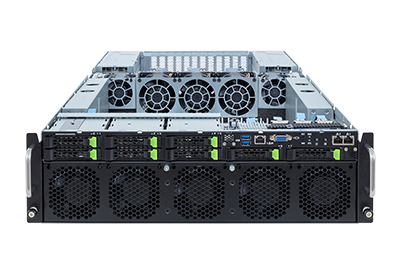

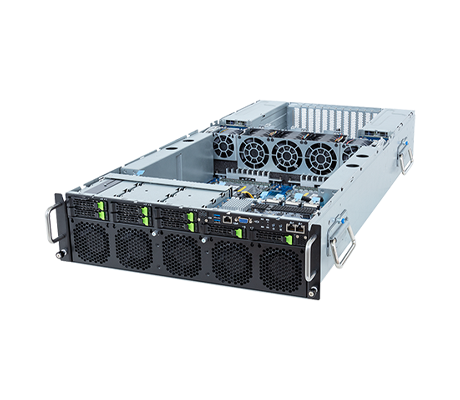

Featuring 4x AMD Instinct MI300A Accelerated Processing Units (APU) and 4x dual slot Gen5 GPUs, the 3U Gigabyte G383-R80 GPU Server is designed for AI training, AI inference, visual computing, and high-performance computing. There is 128GB of High Bandwidth Memory 3 (HBM3) per APU, which has a bandwidth of 5.3TB/s. On the front of the system there are 8x 2.5-inch NVMe hot-swappable drive bays compatible with Gen5 NVMe drives. Dual LAN ports on the front of the system offer data transfer speeds of 10Gb/s.
The AMD Instinct MI300A APUs are limited to a thermal design power (TDP) range of 550W, which includes, the CPU, GPU, and memory of the system. Each APU offers 24x Zen4 CPU Cores and 228x CDNA3 compute units. In the case of fast access storage needs or OS installation requirements, the Gigabyte G383-R80 offers a single M.2 slot with a PCIe Gen5 x4 interface. Dual 10Gb/s BASE-T LAN ports accessible from the front of the server in addition a dedicated 10/100/1000 management LAN port. System expansion is achieved by 4x PCIe x16 full-height, full-length slots, or up to 8x PCIe 5.0 x16 slots with a x8 link, half of which will be occupied if dual slot GPUs are installed.

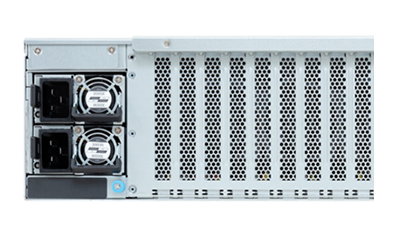

Powering this system are 3x 2200W 80 PLUS Titanium power supplies, with an additional fourth PSU for redundancy purposes. This server ships with the Gigabyte Management Console pre-installed, granting access to a web interface for remote management of the system. It is easy to integrate with 3rd party applications. Managing multiple servers is handled by the Gigabyte Server Manager (GSM). It offers many features and utilizes the Gigabyte Management Console via the GSM Agent. The companion mobile app is compatible with both Android and iOS operating systems.
Gigabyte G383-R80 GPU Server - Specifications
Processor - 4 Sockets
4x AMD Instinct MI300A APUs
24 x Zen4 CPU cores per APU
228 x CDNA3 compute units per APU
TDP up to 550W (CPU + GPU + memory)
Peak up to 760W
Socket:
4x Socket SH5
Motherboard
MR83-AC0
Chipset
System on Chip
Memory
128GB HBM3 unified memory
Memory bandwidth 5.3TB/s
Drive Bays
Front Side:
8 x 2.5" Gen5 NVMe hot-swappable bays
LAN
Front Side:
2 x 10Gb/s LAN ports (1 x Broadcom BCM57416)
1 x 10/100/1000 Mbps management LAN
Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp
Input / Output
Internal
1 x TPM header
Front:
2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Storage activity LED
1 x System status LED
1 x NMI button
1 x Reset button
Rear:
N/A
Backplane Board:
Speed and bandwidth: PCIe Gen5 x4
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Expansion Slots
4 x PCIe x16 (Gen5 x16) FHFL slots (Dual slot)
4 x PCIe x16 (Gen5 x16) FHFL slots (Single slot)
1x M.2 Slot
M-Key, PCIe Gen5 x4, from APU_0
Supports 2280/22110 cards
Chassis
Enclosure
Height: 131mm
Width: 447mm
Depth: 950mm
Power Supply
3 + 1 3000W 80 PLUS Titanium redundant power supplies
System Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
