Gigabyte G493-SB2 Server

Offering 8x PCIe Gen5 x16 full-height, full-length slots for double-wide GPUs, the 4U Gigabyte G493-SB2 server also holds 4x PCIe Gen5 x16 full-height, full-length slots on the rear and an additional 2x PCIe Gen5 x16 low-profile slots on the front panel. The 12x drive bays on the front of the 4U chassis can be configured with 3.5” or 2.5” drives for NVMe Gen5, SATA, or SAS drives. A SAS card is required for SAS devices support. A total of 32x DIMM slots can be populated with 256GB 3DS RDIMM modules for up to 8TB of memory. All of these components are powered by 2x Intel Xeon Scalable CPUs of the 4th or 5th generation, including Max series CPUs with a thermal design power (TDP) of up to 350W.
Configure

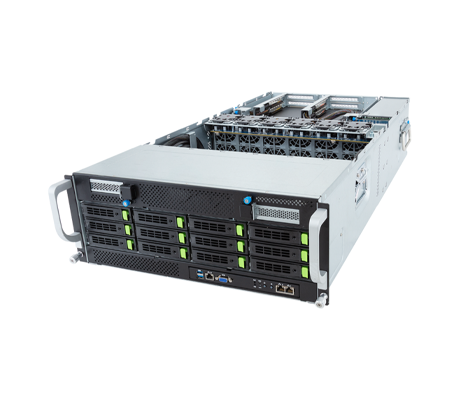

Gigabyte G493-SB2 Server side view.
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G493-SB2 Server - System Overview

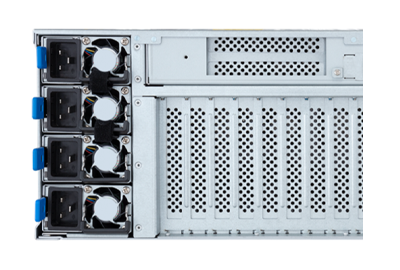

Gigabyte G493-SB2 front Gigabyte G493-SB2 rear

The following drive configurations are supported by each processor: 2 x NVMe from CPU 0, 2 x NVMe from CPU 1, 4 x NVMe from PEX89144_0, 4 x NVMe from PEX89144_1. The Gigabyte G493-SB2 GPU server has one M.2 PCIe Gen3 x1 slot in addition to the front drive bays, which can accommodate cards with 2280 and 22110 form factors. Two 10Gb/s BASE-T LAN ports via Intel X710-AT2 and one dedicated management port allow Administrators to manage the system's fan speed, CPU temperature, and other parameters with the Gigabyte Management Console or the Aspeed AST2600 management controller.4x 3000W (240V) 80 PLUS Titanium power supplies offer 3+1 redundancy to power this platform.

Available Configurations

Explore available configurations for the Gigabyte G493-SB2 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte G493-SB2 Server - Specifications

Processor- 2 Sockets (rev. AAP1)

  • Dual 5th Gen Intel Xeon Scalable Processors
  • Dual 4th Gen Intel Xeon Scalable Processors
  • Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
  • Intel Xeon CPU Max Series
  • Up to 64 cores
  • CPU TDP up to 350W
  • LGA 4677 Socket E

Motherboard

  • MSB3-G40

Memory

    Memory Slots

  • 32x DDR5 DIMM slots
  • 8-Channel memory architecture

    • Memory Speed

  • 5th Gen- Up to *5600MHz (1DPC), 4400MHz (2DPC)
  • 4th Gen- Up to 4800MHz (1DPC), 4400MHz (2DPC)
  • Max Series: Up to 4800MHz (1DPC), 4400MHz (2DPC)

    • DIMM Module Sizes

  • RDIMM modules up to 96GB supported
  • 3DS RDIMM modules up to 256GB supported

Drive Bays

  • 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS hot-swappable bays

    • *(2 x NVMe from CPU_0, 2 x NVMe from CPU_1, 4 x NVMe from PEX89144_0, 4 x NVMe from PEX89144_1)
    *SAS card is required for SAS devices support

LAN

  • 2 x 10GbE LAN ports (1 x Intel® X710-AT2)
  • Support NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 1 x M.2 slot
  • 1 x TPM header
  • 1 x Front panel header
  • 1 x VROC Connector

    • Front

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • 1 x System status LED
  • 1 x HDD access LED

    • Rear

  • N/A

    • Backplane

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

  • 4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_0, for GPUs
  • 4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_1, for GPUs

  • 2 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_0
  • 2 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_1

  • 1 x PCIe x16 (Gen5 x16) low-profile slot on front side, from CPU_0
  • 1 x PCIe x16 (Gen5 x16) low-profile slot on front side, from CPU_1

  • 1 x M.2 slot: PCIe Gen3 x1, from PCH
  • Supports 2280/22110 cards

Chassis

    Enclosure

    Height: 176 mm

    Width: 448 mm

    Depth: 880 mm

Power Supply

  • 3+1 3000W (240V) 80 PLUS Titanium redundant power supply

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
