Gigabyte G493-SB3 Server

Up to 8x dual slot Gen5 GPU cards and 12x front panel 3.5” or 2.5” Gen5 hot-swappable drive bays are supported by the 4U Gigabyte G493-SB3 server. 6x NVMe drives can be powered by CPU 0, meanwhile the remaining 6x NVMe are supported by CPU1. The hybrid backplane can be configured with NVMe, SATA, or SAS drives, but a SAS card is required for SAS devices support. GPUs from manufacturers like AMD, NVIDIA, Qualcomm, and Xilinx can be used to accelerate high-performance computing applications. At 4U, the system is compatible with dual Intel Xeon Scalable CPUs of the 4th and 5th generation, including Max series CPUs with a thermal design power (TDP) of up to 350W. Up to 8TB of DDR5 memory can be delivered with a maximum memory speed of up to 5600MHz.
Configure

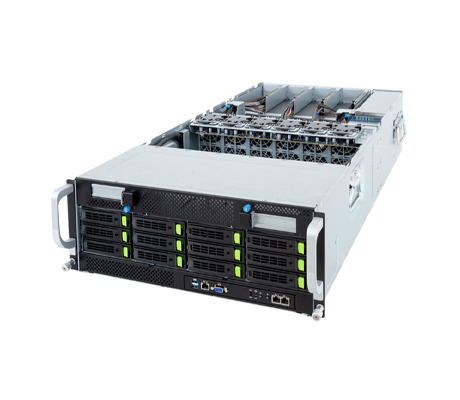

Gigabyte G493-SB3 Server side view.
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G493-SB3 Server - System Overview

Gigabyte G493-SB3 front Gigabyte G493-SB3 rear

With support for 8x dual-slot GPUs this is an excellent platform for supporting applications in AI, AI Training, AI inference and high-performance computing. In addition to the front drive bay panels, the G493-SB3 server offers 1x M.2 PCIe Gen3 x1 slot to support 2280 and 22110 form factor cards. Built to accelerate artificial intelligence, the system offers 8x PCIe Gen5 x16 slots that are full-height, full–length for GPUs, as well as 8x PCIe Gen5 x16 low-profile slots on the rear and an additional two on the front side. Using the Gigabyte Management Console or the Aspeed AST2600 management controller, users can control the system's fan speed, CPU temperature, and other parameters using two 10Gb/s BASE-T LAN connections via Intel X710-AT2 and one dedicated management port. This platform is powered by 3+1 3000W (240V) 80 PLUS Titanium redundant power supplies.

Gigabyte G493-SB3 Server - Specifications

Processor- 2 Sockets (rev. AAP1)

  • Dual 5th Gen Intel Xeon Scalable Processors
  • Dual 4th Gen Intel Xeon Scalable Processors
  • Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
  • Intel Xeon CPU Max Series
  • Up to 64 cores
  • CPU TDP up to 350W
  • LGA 4677 Socket E

Motherboard

  • MSB3-G40

Memory

    Memory Slots

  • 32x DDR5 DIMM slots
  • 8-Channel memory architecture

    • Memory Speed

  • 5th Gen- Up to *5600MHz (1DPC), 4400MHz (2DPC)
  • 4th Gen- Up to 4800MHz (1DPC), 4400MHz (2DPC)
  • Max Series: Up to 4800MHz (1DPC), 4400MHz (2DPC)

    • DIMM Module Sizes

  • RDIMM modules up to 96GB supported
  • 3DS RDIMM modules up to 256GB supported

Drive Bays

  • 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS hot-swappable bays

    • *(6 x NVMe from CPU_0, 6 x NVMe from CPU_1)
    *SAS card is required for SAS devices support

LAN

  • 2 x 10GbE LAN ports (1 x Intel® X710-AT2)
  • Support NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 1 x M.2 slot
  • 1 x TPM header
  • 1 x Front panel header
  • 1 x VROC Connector

    • Front

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • 1 x System status LED
  • 1 x HDD access LED

    • Rear

  • N/A

    • Backplane

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

  • 4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_0, for GPUs
  • 4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_1, for GPUs

  • 4 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89144_0
  • 4 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89144_1

  • 1 x PCIe x16 (Gen5 x16) low-profile slot on front side, from CPU_0
  • 1 x PCIe x16 (Gen5 x16) low-profile slot on front side, from CPU_1

  • 1 x M.2 slot: PCIe Gen3 x1, from PCH
  • Supports 2280/22110 cards

Chassis

    Enclosure

    Height: 176 mm

    Width: 448 mm

    Depth: 880 mm

Power Supply

  • 3+1 3000W (240V) 80 PLUS Titanium redundant power supply

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
