Gigabyte G493-ZB0 GPU Server

Flexible performance options are provided by the Gigabyte G493-ZB0 GPU server for AI, HPC, and other applications. This server is compatible with the AMD EPYC 9004 series processor family and has twin sockets for 5nm technology CPUs with up to 96 cores each. The 4U chassis does not support storage bay options, except for dual M.2 PCIe Gen3 slots on the motherboard. This dual root system features 8x double slot Gen5 GPU cards, as well as 24x DIMM slots that can accommodate up to 6TB of memory all powered by 3+1 redundant 3000W PSUs.
Configure
Gigabyte G493-ZB0 GPU Server (rev. AAP1) side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G493-ZB0 GPU Server - System Overview

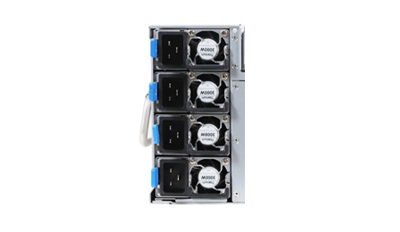

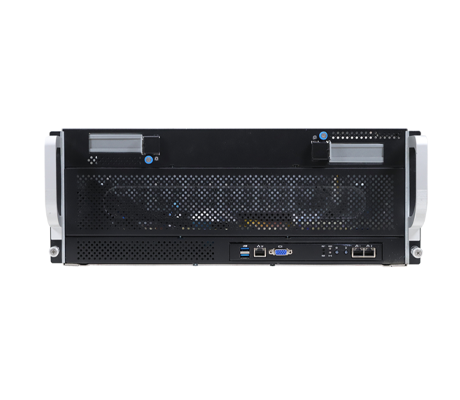

Gigabyte G493-ZB0 GPU server (rev.AAP1) front Gigabyte G493-ZB0 GPU server (rev.AAP1) PSUs

Available Configurations

Explore available configurations for the Gigabyte G493-ZB0 GPU Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte G493-ZB0 GPU Server - Specifications

Processor - Dual-Sockets

  • AMD EPYC 9004 series processor family
  • Dual processor, 5nm technology
  • Up to 96-core, 192 threads per processor
  • cTDP up to 400W
  • 2 x LGA 6096, Socket SP5
  • System on Chip

Memory

  • 24x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz

Storage

    2x M.2 Slots
  • M-Key
  • PCIe Gen3 x4 from CPU_0
  • PCIe Gen3 x4 from CPU_1
  • Supports 2280/ 22110 cards

Power Supplies

  • 3+1 3000W (240V) 80 PLUS Titanium redundant power supply

Fans

  • 6 x 60x60x38mm (23,000rpm)

I/O

    Internal I/O

  • 1 x TPM Header

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 1 x RJ45
  • 1 x MLAN
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 1 x HDD access LED
  • 1 x System status LED

    • Rear I/O

  • N/A

    • Backplane I/O

  • N/A

Expansion Slots

    8 x FHFL PCIe x16 slots (Gen5 x16 bus) for GPUs
  • 4 x from CPU_0, 4 x from CPU_1

    • 2 x FHFL PCIe Gen5 x16 expansion slots on rear side
  • 1 x from CPU_0, 1 x from CPU_1

Dimensions

    Height: 176mm (6.92")
    Width: 448mm (17.63")
    Depth: 880mm (34.64")

Gigabyte G493-ZB0 GPU Server - Documentation

Gigabyte G493-ZB0 GPU Server (rev.AAP1) User Manual Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Server Management Console User Guide
