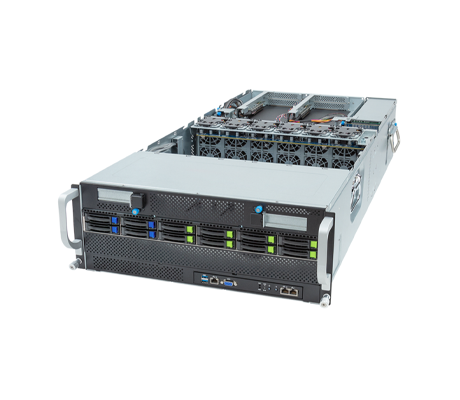

Gigabyte G493-ZB1 Server

4th Generation AMD EPYC 9004 series CPUs offering up to 128 cores and 256 threads, each, can be installed in the dual-socket, 4U Gigabyte G493-ZB1 server. The system supports a configurable thermal design power (cTDP) rating of up to 300W with a maximum TDP of 400W under controlled thermal conditions. AMD’s 3D V-Cache Technology CPUs, are also supported. The 12x 2.5" hot-swappable bays can be outfitted with different drive configurations including 8x NVMe/SATA/SAS drive bays and 4x SATA/SAS drive bays. It can support up to 10x high-performance GPUs and up to 12TB of memory.

Overview

Gigabyte G493-ZB1 Server - System Overview

10x PCIe Gen5 x16 full-height, full-length slots for GPUs from manufacturers like Qualcomm, XILINX, AMD, and NVIDIA. With 10x GPUs, this system is ideal for AI, AI training and inference plus other high-performance computing applications. The system supports a 12-channel memory architecture with a total of 48x memory module slots that can support a maximum of 12TB of memory when every slot is occupied with 256GB 3DS RDIMM modules. Up to 4TB of RAM can be installed with 96GB RDIMM modules.

The system has 2x PCIe Gen5 x16 slots on the front of the chassis, which are useful for high-performance computing, AI, AI training, and AI inference. The server board supports 2x M.2 PCIe Gen3 x4 slots that accept 2280 and 22110 cards for more storage or to boot the operating system. Programs such as Redfish API, SuperDoctor 5, Super Diagnostics Offline, and IPMI 2.0 can be used to monitor the G493-ZB1 GPU server at-chassis or remotely. To safeguard against power outages and data loss, the system makes use of Gigabyte's SmaRT technology in conjunction with 3+1 redundant 3000W (240V) 80 PLUS Titanium power supplies.

Specifications

Gigabyte G493-ZB1 Server - Specifications

Processor - 2 Sockets

Socket SP5 LGA 6096
Dual AMD EPYC 9004 series Processors
AMD EPYC 9004 series processors with AMD 3D V-Cache Technology
cTDP up to 300W at ambient 35°C
*Up to 128-core, 256 threads per processor

Motherboard

MZB3-G41

Memory

48x DDR5 DIMM slots
12-Channel memory architecture

Memory Speed

Up to 4800 MHz (1DPC), 3600 MHz (2DPC)

DIMM Module Sizes

RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported

Drive Bays

8 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays

LAN

2 x 1Gb/s BASE-T LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

1 x TPM header
2 x M.2 Slots

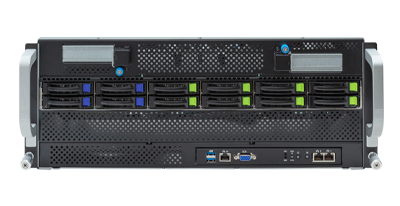

Front

2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x Reset button
2 x NMI button
1 x System status LED
1 x HDD access LED

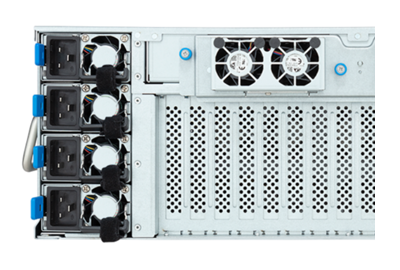

Rear

Backplane

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Expansion Slots

5 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89104_0, for GPUs
5 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89104_1, for GPUs
1 x PCIe x16 (Gen5 x16) low-profile slot on front side, from CPU_0
1 x PCIe x16 (Gen5 x16) low-profile slot on front side, from CPU_1

1 x M.2 slot
PCIe Gen3 x4, from CPU_0
Supports 2280/22110 cards

1 x M.2 slot
PCIe Gen3 x4, from CPU_1
Supports 2280/22110 cards

Chassis

Height: 176 mm

Width: 448 mm

Depth: 880 mm

Power Supply

3+1 3000W (240V) 80 PLUS Titanium redundant power supplies

System Management

Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
