Gigabyte G493-ZB2 Server

4th Generation AMD EPYC 9004 series processors with up to 128 cores, 256 threads per CPU, and a cTDP of up to 300W at ambient 35°C are supported by the dual-socket, 4U Gigabyte G493-ZB3 server. Additionally, those featuring AMD’s 3D V-Cache Technology are also compatible. A configurable thermal design power (cTDP) rating of 300W is supported with a maximum TDP of 400W under restricted thermal circumstances. 48x memory module slots, provide a maximum of up to 12TB with 3DS RDIMM modules or 4TB using standard RDIMMs. In order to manage demanding workloads, the server has 12x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays, as well as 2x M.2 PCIe Gen3 x4 slots.

Overview

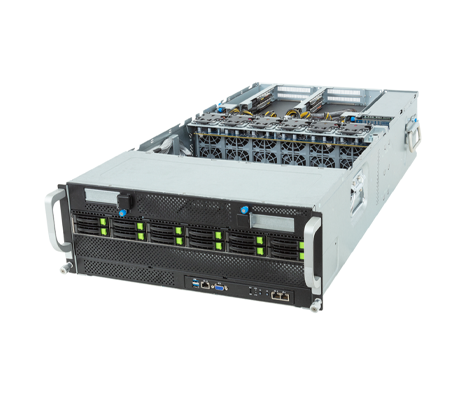

Gigabyte G493-ZB2 Server - System Overview

One CPU powers 2x NVMe hard drives, and the second CPU supports 2x more NVMe SSDs. The remaining 8x NVMe drives are supported by Broadcom PEX89144 switches. This system offers up to 8x PCIe Gen5 x16 full-height, full-length slots for GPUs made by AMD, NVIDIA, XILINX, and Qualcomm. High speed computing, AI, AI training, and AI inference can all benefit from the 8x PCIe Gen5 x16 slots on the system specifically for GPUs. 4x more PCIe 5.0 x16 slots provided on the back and 2x on the front panel, provide additional options for NICs.

AMD's 5nm 'Zen 4' architecture is leveraged by the G493-ZB2 GPU server to deliver 128GB/s bandwidth in PCIe x16 lanes for improved I/O throughput. Redfish API, SuperDoctor 5, Super Diagnostics Offline, and IPMI 2.0 are some of the tools used to remotely and locally manage the platform, including fan speed, CPU temperatures, and other aspects. The system leverages Gigabyte’s SmaRT technology with the 3+1 redundant 3000W (240V) 80 PLUS Titanium power supplies, preventing data loss and outages caused by power shortages.

Specifications

Gigabyte G493-ZB2 Server - Specifications

Processor - 2 Sockets

Dual AMD EPYC 9004 series Processors
AMD EPYC 9004 series processors with AMD 3D V-Cache Technology
cTDP up to 300W at ambient 35°C
*Up to 128-core, 256 threads per processor

Motherboard

MZB3-G41

Memory

48x DDR5 DIMM slots
12-Channel memory architecture

Memory Speed

Up to 4800 MHz (1DPC), 3600 MHz (2DPC)

DIMM Module Sizes

RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported

Drive Bays

12 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays

LAN

2 x 1Gb/s BASE-T LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

1 x TPM header
2 x M.2 Slots

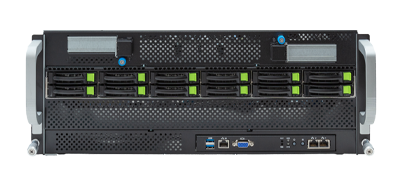

Front

2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x Reset button
2 x NMI button
1 x System status LED
1 x HDD access LED

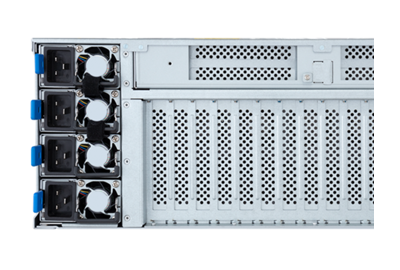

Rear

Backplane

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Expansion Slots

4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_0, for GPUs
4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_1, for GPUs

2 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_0
2 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_1

1 x PCIe x16 (Gen5 x16) low-profile slot on front side, from CPU_0
1 x PCIe x16 (Gen5 x16) low-profile slot on front side, from CPU_1

1 x M.2 slot
PCIe Gen3 x4, from CPU_0
Supports 2280/22110 cards

1 x M.2 slot
PCIe Gen3 x4, from CPU_1
Supports 2280/22110 cards

Chassis

Height: 176 mm

Width: 448 mm

Depth: 880 mm

Power Supply

3+1 3000W (240V) 80 PLUS Titanium redundant power supplies

System Management

Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Documentation

Gigabyte G493-ZB2 Server - Documentation

Gigabyte G493-ZB2 Server Data Sheet Gigabyte G493-ZB2 Server User Manual Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Server Management Console User Guide Gigabyte Redfish API Specification User Guide
