Gigabyte G493-ZB3 Server

The dual-socket, 4U Gigabyte G493-ZB3 server supports 4th Generation AMD EPYC 9004 series processors including those featuring AMD 3D V-Cache Technology. With a configurable thermal design power (cTDP) of up to 300W, CPUs with up to 128 cores, 256 threads per CPU can be installed. Contingent support is available for CPUs with up to 400W under limited thermal conditions. 12-channel memory architecture per processor support a total of 48x DDR5 memory module slots. At full capacity, the server can support a maximum of 12TB of memory using 3DS RDIMMs or up to 4TB of RAM using standard RDIMMs. The server has several storage options, including 12x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays to handle heavy workloads. Up to 8 dual slot GPUs can be installed.
Configure

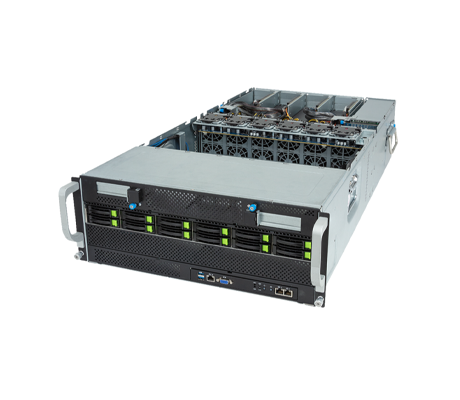

Gigabyte G493-ZB3 Server side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte G493-ZB3 Server - System Overview

Gigabyte G493-ZB3 front

If all NVME drives are installed, 6x NVMe drives are powered by one CPU, while the remaining 6x NVMe drives are supported by the second CPU. Up to 8x PCIe Gen5 x16 full-height, full-length slots for GPUs from AMD, NVIDIA, XILINX, and Qualcomm are provided by this system. A total of 10x PCIe Gen5 x16 low-profile slots are available on the chassis, with 8x on the rear and 2x on the front panel, making it ideal for AI, AI training, AI inference, and high-performance computing (HPC). The G493-ZB3 GPU server delivers 128GB/s bandwidth in PCIe 5.0 x16 lanes with enhanced I/O throughput provided by AMD's 5nm 'Zen 4' architecture.



Gigabyte G493-ZB3 rear

In addition to the front panel drive bays, the system supports 2x M.2 PCIe Gen3 x4 slots with support for 2280 and 22110 cards. 3+1 redundant 3000W (240V) 80 PLUS Titanium power supplies work with Gigabyte’s SmaRT technology to guard against data loss due to AC power outages. The power supply's capacitors can provide power for 10–20 ms, which is sufficient time to switch to a backup power source and continue operating. To manage the platform, including fan speed, CPU temps, and more, Administrators can use tools like Redfish API, SuperDoctor 5, Super Diagnostics Offline, and IPMI 2.0 to make changes both at-chassis and remotely.

Gigabyte G493-ZB3 Server - Specifications

Processor - 2 Sockets

  • Dual AMD EPYC 9004 series Processors
  • AMD EPYC 9004 series processors with AMD 3D V-Cache Technology
  • cTDP up to 300W at ambient 35°C
  • *Up to 128-core, 256 threads per processor

    • *cTDP supported up to 400W under limited thermal conditions

Motherboard

  • MZB3-G41

Memory

    Memory Slots

  • 48x DDR5 DIMM slots
  • 12-Channel memory architecture

    • Memory Speed

  • Up to 4800 MHz (1DPC), 3600 MHz (2DPC)

    • DIMM Module Sizes

  • RDIMM modules up to 96GB supported
  • 3DS RDIMM modules up to 256GB supported

Drive Bays

  • 12 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays

    • (6 x NVMe from CPU_0, 6 x NVMe from CPU_1)
    *SAS card is required for SAS devices support

LAN

  • 2 x 1Gb/s BASE-T LAN ports (1 x Intel® I350-AM2)
  • Support NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 1 x TPM header
  • 2 x M.2 Slots

    • Front

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED
  • 1 x Reset button
  • 2 x NMI button
  • 1 x System status LED
  • 1 x HDD access LED

    • Rear

  • N/A

    • Backplane

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

  • 4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_0, for GPUs
  • 4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_1, for GPUs

  • 4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_0
  • 4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_1

  • 1 x PCIe x16 (Gen5 x16) low-profile slot on front side, from CPU_0
  • 1 x PCIe x16 (Gen5 x16) low-profile slot on front side, from CPU_1

  • 1 x M.2 slot
  • PCIe Gen3 x4, from CPU_0
  • Supports 2280/22110 cards

  • 1 x M.2 slot
  • PCIe Gen3 x4, from CPU_1
  • Supports 2280/22110 cards

Chassis

    Enclosure

    Height: 176 mm

    Width: 448 mm

    Depth: 880 mm

Power Supply

  • 3+1 3000W (240V) 80 PLUS Titanium redundant power supplies

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte G493-ZB3 Server - Documentation

Gigabyte G493-ZB3 Server Data Sheet Gigabyte G493-ZB3 Server User Manual Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Server Management Console User Guide Gigabyte Redfish API Specification User Guide
