The Gigabyte G494-SB0 GPU server features dual-sockets and is equipped with Intel Xeon 6 processors from either the 6700 series with E-Cores, 6700 series with P-Cores, or 6500 series with P-Cores. CPUs supported include a TDP of up to 350W, making them ideal for demanding applications such as artificial intelligence, visual computing, and high-performance computing. With 8-channel memory architecture, there are 32x DDR5 memory module slots with 16x slots per socket.
Standard RDIMMs can achieve speeds of up to 6400 MT/s with 1x DIMM per channel or up to 5200 MT/s with 2x DIMMs per channel. Additionally, Multiplexor Combined Ranks DIMMs (MCRDIMMs) are supported exclusively with Intel P-Core CPUs in a 1x DIMM per channel configuration, allowing for speeds of up to 8000 MT/s. The 4U G494-SB0 GPU server supports 8x FHFL PCIe 5.0 x16 slots for double-wide GPUs, conveniently accessible from the rear of its chassis. Moreover, there is a single low-profile PCIe x16 (Gen5 x8) slot located on the front panel, positioned above the storage bays. It's important to note that if only one CPU is installed, some PCIe or memory functions may be limited.

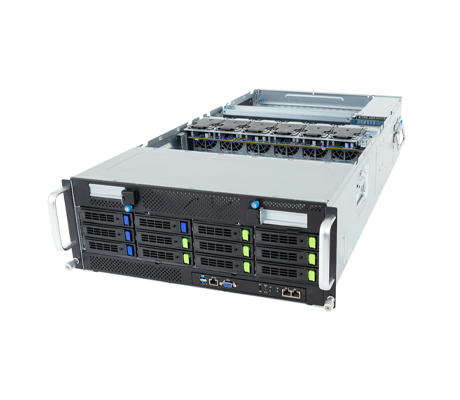

The server has 12x hot-swappable 3.5” storage bays, which can be configured with either 3.5” or 2.5” form factor drives. Eight of these bays, marked with lime green tabs, support Gen5 NVMe, SATA, and SAS drives, while the remaining 4x bays, indicated by blue tabs, are dedicated to SATA and SAS drives. A storage card is required to support SATA and SAS configurations. The system is powered by 3+1 redundant power supplies, featuring 3000W 80 PLUS Titanium efficiency. Pre-installed, the Gigabyte Management Console provides cost-free management of a single server or small cluster. Gigabyte Server Management (GSM) software can be deployed to control the system at-chassis or remotely by utilizing programs such as GSM Server, GSM CLI, GSM Agent, GSM Mobile, and the GSM Plugin for use with VMware vCenter.
Gigabyte G494-SB0 GPU Server - Specifications
Processor - 2 Sockets
Intel Xeon 6 Processors
Intel Xeon 6700 Series Processors with E-Cores
Intel Xeon 6700 Series Processors with P-Cores
Intel Xeon 6500 Series Processors with E-Cores
Dual processors, TDP up to 350W
*If only 1x CPU is installed, some PCIe or memory functions might be unavailable.
Socket:
2 x LGA 4710
Socket E2
Motherboard
MSB4-G40
Memory
Memory Slots:
32 x DIMM slots
8-Channel memory architecture
Memory Type:
RDIMM
MCR DIMM
Memory Speed:
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s
*MCR DIMMs are only supported with Intel Xeon 6 Processors with P-Cores and in a 1DPC configuration.
Drive Bays
Front Hot-Swap:
8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS
4 x 3.5"/2.5" SATA/SAS
*Storage card is required to support SATA and SAS drives.
LAN
Front:
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2600
1x VGA port
Input / Output
Front:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear:
N/A
Backplane Board:
Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM012
Expansion Slots
4 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
4 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
PCIe Cable:
1 x LP x16 (Gen5 x8), from CPU_1
Chassis
Enclosure
Height: 176mm
Width: 448mm
Depth: 800mm
Power Supply

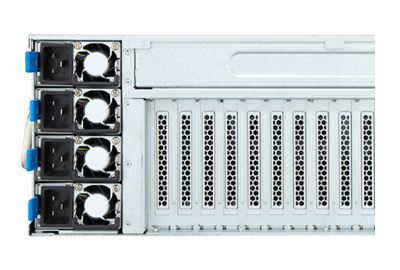

3+1 3000W 80 PLUS Titanium redundant power supplies
System Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
