Additional InformationEach processor supports 12-channel memory architecture and 12x memory module slots for 24 active memory module slots with both processors installed. With 1 DIMM per Channel, memory modules can operate at peak performance. For 9005 series memory speeds of up to 4800MT/s are supported. Using 9005 series processors, the system will support memory speeds of up to 6400MT/s. Using top of the line AMD EPYC 9005 series processors with 192 cores and 384 virtual threads, the Gigabyte G494-ZB0 GPU Server can deliver up to 384 physical cores and 768 virtual threads, with dual processors. There are no hard drives on this system aside from 2x Internal PCIe 3.0 slots on the system board for M.2 drives.
Chassis Options:
AMD Radeon AI PRO R9700S – 300W
Gigabyte G494-ZB0-AAP1

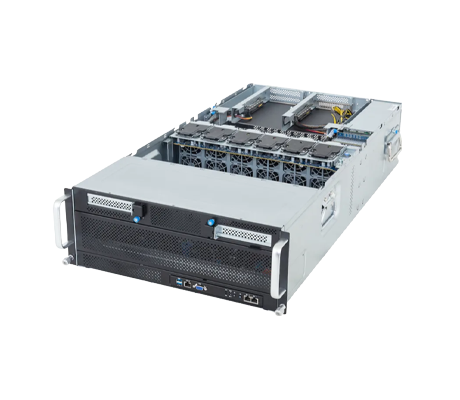

Air-Cooled with 12x 60x60x56mm fans, PCIe GPU options include:
8 x NVIDIA H200 NVL PCIe GPUs with 4-way NVLink bridges - 600W
8 x NVIDIA RTX PRO 6000 Blackwell Server Edition GPUs – 450W – 600W (configurable)
8 x AMD Instinct MI350P PCIe Cards – 600W

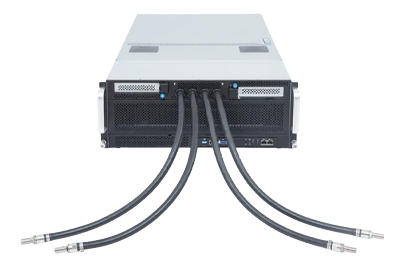

8x full-height, full-length gen5 x16 slots with x16 link width are for double wide GPUs up to 600W. With liquid cooling the G494-ZB0-LAP1 supports only the AMD Radeon AI PRO R9700S. The 2x front full-height, full -length PCIe x16 slots provide additional networking options than the two 10Gb/s LAN ports. There is also a dedicated management LAN (mLAN) port to manage the system remotely. Gigabyte provides free-of-charge management utilities via an integrated microprocessor on the system board. The Gigabyte Management Console is pre-installed and offers management and troubleshooting for a single server or small cluster of servers. It supports standard IPMI specifications and provides automatic event recording, plus the integration of MegaRAID storage controllers for SAS, SATA and NVMe storage devices.
The other option is the Gigabyte Server Manager or GSM. GSM can manage a large cluster of servers simultaneously over the Internet using a standard browser. It provides remote control and provides ease of maintenance through IPMI and Redfish compliant standards. This application can be downloaded and also offers a command line interface, plus plugin for use with VMware vCenter. The system is powered by 4x 3000W 80 PLUS Titanium redundant PSUs.
Explore available configurations for the Gigabyte G494-ZB0 GPU Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- AMD EPYC 9005 Series Processors
- AMD EPYC 9004 Series Processors
- Dual processor, cTDP up to 400W
- At 30°C ambient, cTDP up to 500W
- Socket: 2x LGA 6096, Socket SP5
- System on Chip
- Motherboard: MZB3-G43
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- 24x DIMM slots
- Support DDR5 RDIMM
- 12-Channel memory per processor
AMD EPYC 9005:
- Up to 6400MT/s
AMD EPYC 9004:
- Up to 4800MT/s

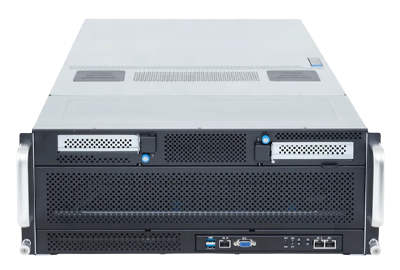

Front:
- 2x 10Gb/s LAN (1x Intel X710-AT2)
- Support NCSI function
- 1x 10/100/1000 Mb/s Management LAN
Internal M.2:
- 1x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
- 1x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
PCIe Bridge Board:
- 4x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
- 4x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
PCIe Cable x2
- 1x FHFL x16 (Gen5 x16), from CPU_0
- 1x FHFL x16 (Gen5 x16), from CPU_1
Note:
+ The system supports up to 8x 600W GPUs and 1 x dual-slot FHFL + 1 x single-slot FHFL for other AICs with an optional fan kit. GPU video output ports are not available. Please refer to the QVL list for validated GPUs.
+ The system supports 8x NVIDIA H200 NVL PCIe GPUs at 25°C ambient, arranged as two 4-GPU sets, each with a 4-way NVLink bridge.
+ The system supports the following GPUs at 25°C ambient: 8x NVIDIA RTX PRO 6000 Blackwell Server Edition GPUs OR 8x AMD Instinct MI350P PCIe Cards
+ The system is only validated with a uniform GPU model
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x VGA port
- 2x RJ45 ports
- 1x MLAN port
- 1x Power button with LED
- 1x ID button with LED
- 1x NMI button
- 1x Reset button
- 1x Storage activity LED
- 1x System status LED
- N/A
- Quad 3000W 80 PLUS Titanium redundant power supply
- The system power supply requires C19 power cord
- 4U
- 448 x 176 x 880
- 448 x 176 x 1000.5 (with optional fan kit)
- Net Weight: 66.8 kg
- Gross Weight: 68.8 kg
