Gigabyte G593-SD0 GPU Server

Powered by dual 5th or 4th generation Intel Xeon Scalable processors with up to 64 cores, the Gigabyte G593-SD0 GPU server supports up to 8TB of DDR5 memory and Intel Optane Persistent 300 series memory. The front of the server offers 8x 2.5” hot-swappable, tool-less drive bays with Gen5 NVMe, SATA, or SAS configurations. For high-performance computing (HPC) workloads, the system supports up to 8x NVIDIA HGX H100 SXM5 GPUs using NVIDIA NVLINK and NVSwitch technology, and can even communicate with up to 256 GPUs. This 5U machine also supports an 8-channel memory architecture for the 32x DIMMs.
Configure

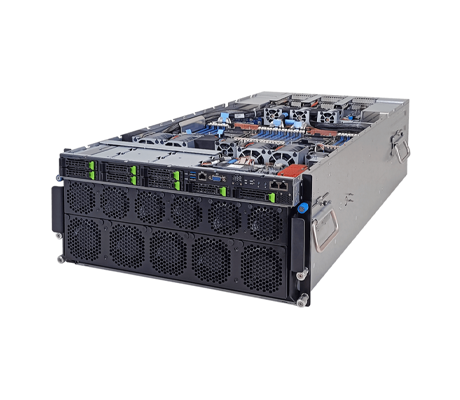

Gigabyte G593-SD0 GPU Server (rev. AAX1) side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G593-SD0 GPU Server - System Overview

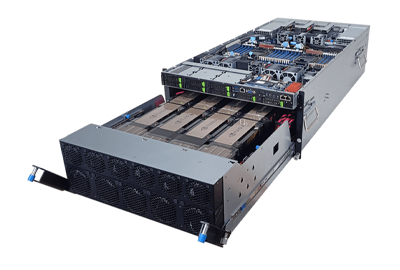

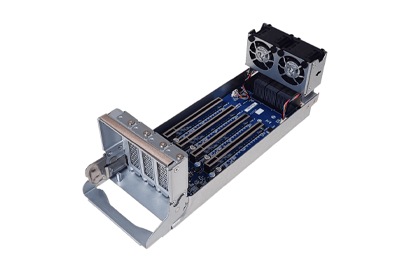

Gigabyte G593-SD0 GPU server (rev.AAX1) GPUsGigabyte G593-SD0 GPU server (rev.AAX1) PCIe

Gigabyte G593-SD0 GPU Server - Specifications

Processor - Dual-Sockets

  • 5th Generation Intel® Xeon® Scalable Processors
  • 4th Generation Intel® Xeon® Scalable Processors
  • Intel® Xeon® CPU Max Series
  • Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
  • 2 x LGA 4677, Socket E
  • Intel® C741 Chipset
  • cTDP up to 350W

    • NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Memory

  • 32x DIMM slots
  • DDR5 memory supported only
  • 8-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

Drive Bays

  • 8 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable HDD/SSD bays
    • *SAS card is required for SAS devices support

Power Supplies

  • 4+2 3000W (240V) 80 PLUS Titanium redundant power supply

Fans

  • Front: 5 x 80x80x80mm (17,000rpm), 6 x 60x60x76mm (21,700rpm)
  • Rear: 6 x 80x80x80mm (17,000rpm), 3 x 40x40x56mm (29,700rpm)
  • Internal: 6 x 40x40x28mm (25,000rpm)/4 x 60x60x56mm (24,000rpm)

I/O

    Internal I/O

  • 1 x Front Panel header
  • 1 x TPM Header

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 1 x RJ45
  • 1 x MLAN (default port)
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 1 x HDD access LED
  • 1 x System status LED

    • Rear I/O

  • 1 x MLAN

    • Backplane I/O

  • Backplane P/N: 9CBPG680NR-00
  • 8 x 2.5" NVMe/SATA/SAS hybrid ports
  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

  • Supports NVIDIA HGX™ H100 with 8 x SXM5 GPU
  • 12 x Low profile Gen5 x16 expansion slots
  • 1 x Low profile Gen4 x16 expansion slot

Dimensions

    Height: 222.25mm (8.75")
    Width: 447mm (17.59")
    Depth: 945mm (37.20")
