Gigabyte G593-SX1 GPU Server

The 8-bay Gigabyte G593-SX1 GPU server is a high-performance computing system ideal for AI, AI inference, AI training, and more. It supports 8x 2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays on the front panel. A lower pull-out drawer houses 10 high-capacity fans with 8x AMD Instinct MI300X OAM GPUs. Under the cover panel are dual sockets for 4th or 5th generation Intel Xeon Scalable processors with up to 64 cores each and a maximum TDP of 350W. Intel’s Xeon CPU Max Series with up to 56 cores are also supported.
Configure

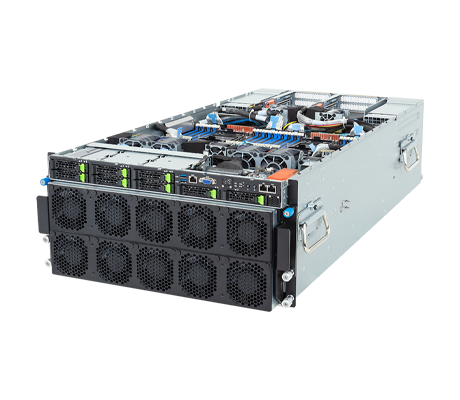

Gigabyte G593-SX1 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G593-SX1 GPU Server - System Overview

Additional Information

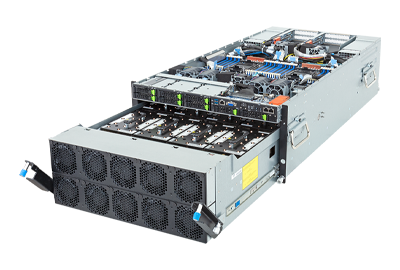

Gigabyte G593-SX1 GPU Server front view Gigabyte G593-SX1 GPU Server top view

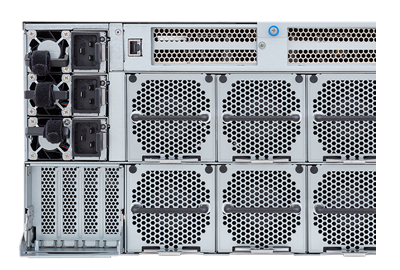

Just next to the drive bays on the front of the Gigabyte G593-SX1 server is the I/O panel featuring 2x USB 3.2 Gen1, 2x 10GbE LAN ports, 1x VGA port, and 1x MLAN. On the rear of the system, administrators can access the 3000W 80 PLUS Titanium power supplies offering 4+2 redundancy, plus 4 x FHHL PCIe Gen5 x16 slots and 8 x LP PCIe Gen5 x16 slots. Remote system monitoring can be done via the Aspeed AST2600 baseboard management controller along with the Gigabyte Management Console which uses an AMI MegaRAC SP-X web interface. For managing the entire network, Gigabyte offers the Gigabyte Server Management software suite.

A total of 32x memory module slots with an 8-channel memory provide up to 8TB of memory at capacity using 3DS RDIMMs.

Depending on the processor, memory speeds differ:

  • 5th Gen Intel Xeon: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
  • 4th Gen Intel Xeon: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
  • Intel Xeon Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Gigabyte G593-SX1 GPU Server - Specifications

Processor - 2 Sockets

  • 5th Generation Intel Xeon Scalable Processors
  • 4th Generation Intel Xeon Scalable Processors
  • Intel Xeon CPU Max Series
  • Dual processor, TDP up to 350W

    • NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

    Socket:

  • 2 x LGA 4677
  • Socket E

Motherboard

  • MSB3-G41

Memory

    Memory Slots:

  • 32 x DIMM slots
  • 8-Channel memory architecture

    • Memory Type:

  • RDIMM
  • 3DS RDIMM

    • Memory Speed:

  • 5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
  • 4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
  • Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

    • *5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.

    DIMM Module Sizes:

  • RDIMM: Up to 96GB supported
  • 3DS RDIMM: Up to 256GB supported

Drive Bays

  • 8 x 2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays, NVMe from PEX89104

    • *SAS card is required to support SAS drives.

LAN

  • 2 x 10Gb/s LAN ports (Intel X710-AT2)
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp

Input / Output

    Internal

  • 1 x TPM header
  • 1 x VROC connector

    • Front:

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN (default port)
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • 1 x System status LED
  • 1 x Storage activity LED

    • Rear:

  • 1 x MLAN

    • Backplane Board:

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    Supports 8 x AMD Instinct MI300X OAM GPUs Extension Board CPBG044 x 2:

  • 8 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89104

    • Riser Card CPBGD20 x 2:

  • 4 x PCIe x16 (Gen5 x16) FHHL slots, from PEX89048

Chassis

    Enclosure

    Height: 222.25mm

    Width: 447mm

    Depth: 945mm

Power Supply

  • 4 + 2 3000W 80 PLUS Titanium redundant power supplies

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
