Gigabyte G593-ZD2 Server

The 5U Gigabyte G593-ZD2 server is an AMD EPYC-based system that can be outfitted with up to 8x NVIDIA HGX H100 SXM5 GPUs. These accelerators support NVIDIA’s NVLink and NVSwitch technology with up to 900GB/s GPU-to-GPU interconnection and are also compatible with NVIDIA BlueField-2 and BlueField-3 DPUs. Dual processors from the AMD EPYC 9004 series family, including those with AMD 3D V-Cache technology, can be mounted into the dual sockets. The front panel has 8x 2.5" Gen5 NVMe hot-swappable bays, which are marked with neon green tabs. In addition, the server features a 12-channel memory architecture per processor for up to 6TB of DDR5 memory.
Configure

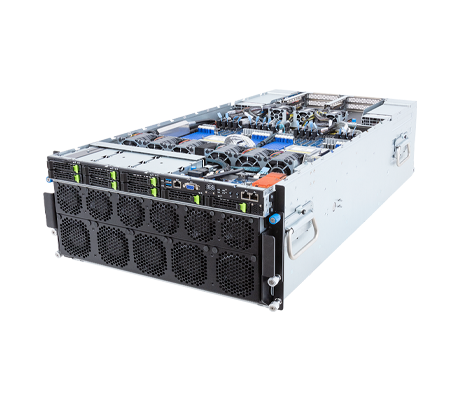

Gigabyte G593-ZD2 Server side view.
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Gigabyte G593-ZD2 Server - System Overview

Gigabyte G593-ZD2 front

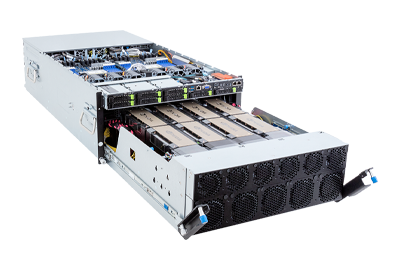

This is a dual root system that supports CPUs with a cTDP of up to 300W at ambient 35°C. A cTDP or up to 400W under limited thermal conditions. Feature 5nm technology, the supported TDP allows for the installation of CPUs with up to 128 cores and 256 threads, each. The maximum memory of 6TB is achieved when all 24x DIMM slots are filled with 256GB 3DS RDIMM modules. Only 2TB of RAM is supported with standard 96GB RDIMMs. The 8x SXM5 GPUS are connected to the CPUs via Broadcomm PEX PCIe switches and reside on a pull-out GPU tray featuring NVIDIA NVLink and NVSwitch technology.

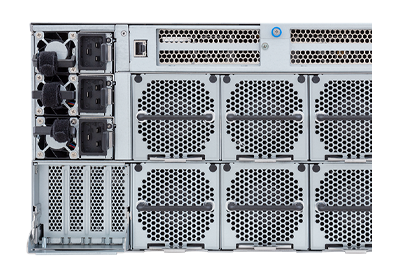

Gigabyte G593-ZD2 rear

The 5U G593-ZD2 server is powered by 4+2 3000W (240V) 80 PLUS Titanium redundant power supplies. The system can be remotely managed remotely by the Gigabyte Management Console web interface through the Aspeed AST2600 baseboard management controller (BMC). For one too many servers in data center applications, Gigabyte offers the Gigabyte Server Manager (GSM), which leverages the Gigabyte Management Console. It has a total of 12x PCIe Gen5 x16 slots, with 8x are low-profile slots and the 4x FHHL slots that can be used for network expansion devices. The system also supports 2x M.2 PCIe Gen3 slots, with one Gen3 x1 interface and the other with a Gen3 x4 interface. Both support 2280 or 22110 cards. This machine is ideal for artificial intelligence workloads and high-performance computing applications.

Available Configurations

Explore available configurations for the Gigabyte G593-ZD2 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte G593-ZD2 Server - Specifications

Processor- 2 Sockets

  • AMD EPYC 9004 Series Processors
  • AMD EPYC 9004 Series Processors with AMD 3D V-Cache Technology
  • Dual processor, 5nm technology
  • Up to 128-core, 256 threads per processor
  • 2 x LGA 6096, Socket SP5
  • cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.

Motherboard

  • MZB3-G43

Memory

    Memory Slots

  • 24x DIMM slots
  • 12-Channel DDR5 memory architecture

    • Memory Speed

  • Up to 4800 MHz

    • DIMM Module Sizes

  • RDIMM modules up to 96GB supported
  • 3DS RDIMM modules up to 256GB supported

Drive Bays

  • 8 x 2.5" Gen5 NVMe hot-swappable bays, from PEX89104

LAN

  • 2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
  • Support NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 2 x M.2 slots
  • 1 x TPM header
  • 1 x Front panel header

    • Front

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN (default port)
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • 1 x System status LED
  • 1 x HDD access LED

    • Rear

  • 1 x MLAN

    • Backplane

  • Speed and bandwidth: PCIe Gen5 x4

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    Supports NVIDIA HGX™ H100 with 8 x SXM5 GPUs
  • 8 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89104
  • 2 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_0
  • 2 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_1

    • 1 x M.2 Slot:
  • M-key
  • PCIe Gen3 x1, from CPU_0
  • Supports 2280/22110 cards
    • 1 x M.2 Slot:
  • M-key
  • PCIe Gen3 x4, from CPU_1
  • Supports 2280/22110 cards

Chassis

    Enclosure

    Height: 222.25 mm

    Width: 447 mm

    Depth: 945 mm

Power Supply

  • 4+2 3000W (240V) 80 PLUS Titanium redundant power supplies

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte G593-ZD2 Server - Documentation

Gigabyte G593-ZD2 Server User Manual Gigabyte G593-ZD2 Server Data Sheet Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Server Management Console User Guide Gigabyte Redfish API Specification User Guide
